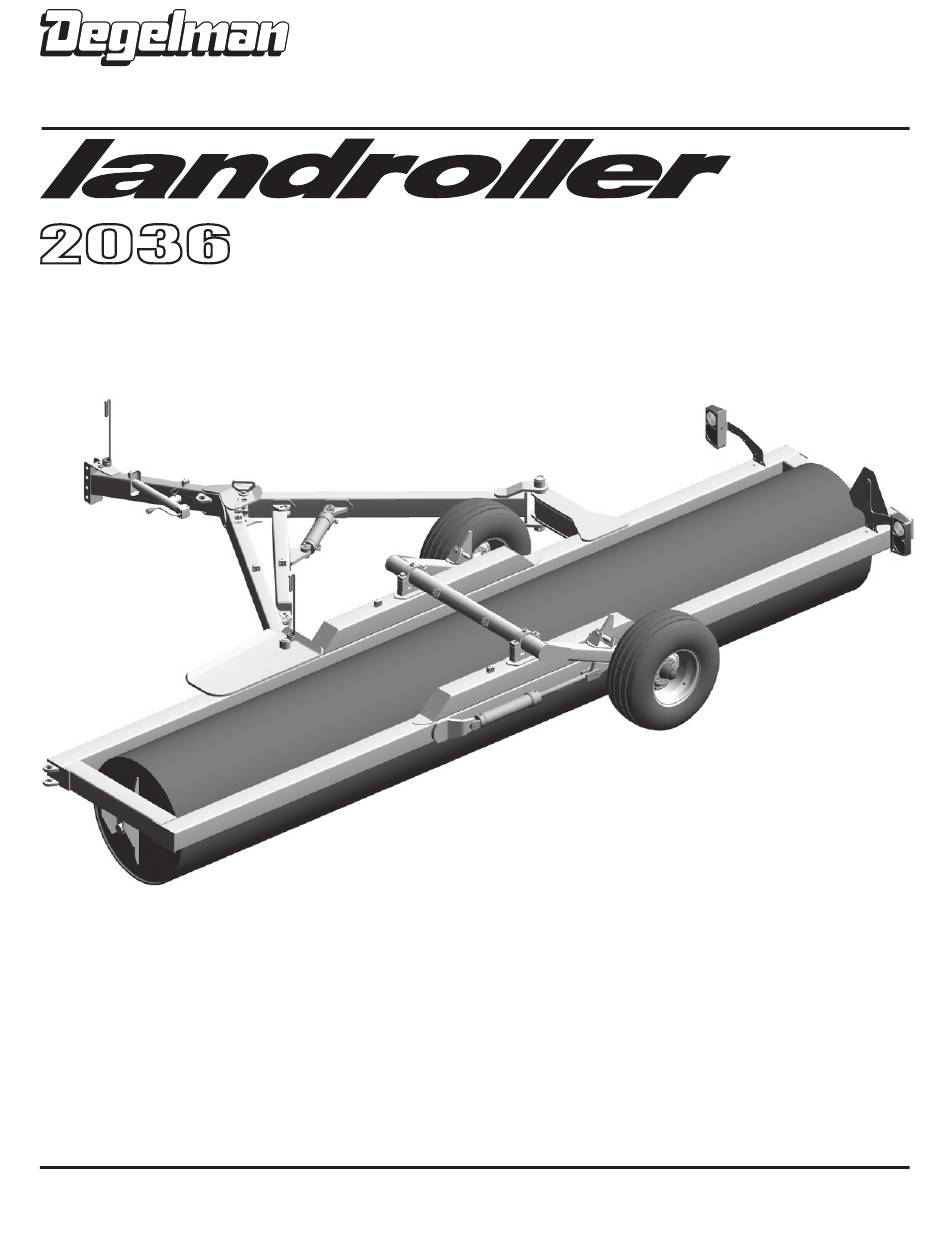

D E G E L M A N
I N D U S T R I E S
B O X
8 3 0 - 2 7 2
I N D U S T R I A L
R E G I N A ,
S K ,
C A N A D A ,
F A X 3 0 6 . 5 4 3 . 2 1 4 0
P H 3 0 6 . 5 4 3 . 4 4 4 7
1 . 8 0 0 . 6 6 7 . 3 5 4 5
D E G E L M A N . C O M
L T D.
D R I V E ,
S 4 P
3 B 1
OPERATOR & PARTS
MANUAL
143044 v2.2
LANDROLLER
SINGLE DRUM
LR2036
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Degelman Landroller
Summary of Contents for Degelman Landroller
- Page 1 OPERATOR & PARTS MANUAL 143044 v2.2 LANDROLLER D E G E L M A N I N D U S T R I E S L T D. B O X 8 3 0 - 2 7 2 I N D U S T R I A L...
-
Page 3: Table Of Contents
TABLE OF CONTENTS - OPERATORS SECTION Introduction Safety Operation Transport to Field Position Field to Transport Position Service & Maintenance Maintenance Checklist Repair - Hydraulic Cylinder Repair - Wheel Hub PARTS SECTION Overview & Decal Locations Roller Frame Components Hitch Pole & Swing Arm Components Rockshaft, Wheel, &... -
Page 5: Introduction
Degelman rollers provide a smooth and level surface for faster, easier harvest operations and better seed-to-soil contact. -
Page 6: Safety
•Accidents Can Be Avoided SAFETY ALERT SYMBOL The Safety Alert Symbol means: he Safety Alert Symbol identifies important safety messages applied to the Landroller and in this ATTENTION! manual. When you see this symbol, be alert to the BECOME ALERT! possibility of injury or death. - Page 7 Landroller. the Landroller be familiar with the operating and maintenance procedures and related SAFETY 2. Install and properly secure all shields and information contained in this manual.
-
Page 8: Operation
4. Do not allow riders on the Landroller or tractor during operation or transporting. By following the operating instructions 5. Keep all shields and guards in place when in conjunction with a good maintenance operating (if applicable). - Page 9 Although there are no operational restrictions on It is important for both personal safety and the Landroller when it is new, there are some checks maintaining good operational condition of the that should be done when using the machine for the...
- Page 10 Operation HOOK-UP / UNHOOKING TRANSPORT SAFETY The Landroller should always be parked on a level, 1. Read and understand ALL the information in the Operator’s Manual regarding procedures dry area that is free of debris and foreign objects. and SAFETY when operating the Landroller in Follow this procedure to hook-up: the field/yard or on the road.
-
Page 11: Transport To Field Position
Operation TRANSPORT TO FIELD POSITION Holding 1. Drive the landroller onto level ground so it is Transport Position Position straight behind the tractor. Apply tractor’s park brake. 2. Remove the Transport Pin and place Transport it in the holding position. -
Page 12: Field To Transport Position
Operation FIELD TO TRANSPORT POSITION 1. Drive the landroller onto level ground so it is straight behind the tractor. Apply tractor’s park brake. 2. Retract/Close the wheel cylinders lowering the wheel assemblies and raising the roller off the ground. Ensure the wheel cylinders are fully closed. -
Page 13: Service & Maintenance
7. Before applying pressure to the system, make sure all components are tight and that lines, hoses and couplings are not damaged. • Think SAFETY! Work SAFELY 143044 - Landroller 2036 (21-August-2017) - Page 14 320 (435) STORAGE 7/8” 365 (495) 515 (700) 1” 550 (745) 770 (1050) The landroller should be carefully prepared for 1-1/8” 675 (915) 1095 (1485) storage to ensure that all dirt, mud, debris and 1-1/4” 950 (1290) 1545 (2095) moisture has been removed.
-
Page 15: Maintenance Checklist
3. Have a qualified tire dealer or repair serviceman perform required tire maintenance. Annually • Bolt tightness • Wheel bearings Joint Pins • Plastic wear pad under ramp plate. Hubs/Spindles Joint Pins Cylinder Pins Cast Bearings Cylinder Joint Pins Pins 143044 - Landroller 2036 (21-August-2017) -11-... -
Page 16: Repair - Hydraulic Cylinder
7. Remove plastic removal ring from the cylinder internal tube groove tube. is fully exposed. This will also move the internal wire ring into its removal position. Inner Ring Outer Wire Ring Internal Groove (Removed) v1.0 143044 - Landroller 2036 (21-August-2017) -12-... - Page 17 Note: Make sure the cam of the band clamp is c) Install External not overtop of the gap in the ring. Wire Ring Inner Ring External Ring 18. Before using the cylinder, ensure that you double check your work. 143044 - Landroller 2036 (21-August-2017) -13-...
- Page 18 6. Torque cylinder end cap to 440 lb.ft (600 N.m). end cap to align ports. 7. Tighten Set Screw on end cap to 6 lb.ft (8 N.m). 7. Tighten Locking Ring against end cap using a punch and hammer. 143044 - Landroller 2036 (21-August-2017) -14-...
-
Page 19: Repair - Wheel Hub
8. Install cotter pin and bend legs sideways over nut. 9. Fill dust cap half full of grease and gently tap into position. 10. Pump grease into hub through grease fitting until lubricant can be seen from dust seal. 143044 - Landroller 2036 (21-August-2017) -15-... -
Page 21: Overview & Decal Locations
142556 - Decal, Reflector Red - 2 x 9 (3) 142650 - Decal, Reflector Fluorescent - 2 x 9 (3) 142557- Decal, Reflector 142914 - Decal, Landroller 2036 (2) Amber, 2 x 9 (1) 142915 - Decal, Transport Bar (1) 142916 - Decal, Pin Placement (1) -
Page 22: Roller Frame Components
21 lb . ft (29 N . m). Do not over-torque. 117107 - Cast Housing (1) 118026 - Bolt, 5/8 x 2 (8) 117106 - Bearing Insert (1) 118508 - Lock Washer, 5/8 (8) 117022 - Lock Ring (1) 118407 - Nut, 5/8 (8) 143044 - Landroller 2036 (21-August-2017) -18-... -
Page 23: Hitch Pole & Swing Arm Components
122730 - Swing 243773 - Cross Joint Same as Above Arm, Cylinder (2) Pin (1) 244680 - Swing Arm Assembly (1) 118094 - Bolt, 5/8 x 4 (1) 118447 - Lock Nut 5/8 (1) 143044 - Landroller 2036 (21-August-2017) -19-... -
Page 24: Rockshaft, Wheel, & Light Components
118009 - Bolt, Orange Up 1/2 x 1-1/4 (4) Red Down 243777 - Lamp Bracket, RH (1) 118483 - Lock 142135 - SMV Nut, 1/4 (8) Sign (1) 118756 - Bolt, 1/4 x 1-1/4 (8) 143044 - Landroller 2036 (21-August-2017) -20-... -
Page 25: Hub & Spindle, Cylinder Components
118924 - Flat washer, .59” ID x .9” OD (2) 118930 - Pin, 1” x 2-13/16” (2) 118796 - Shoulder bolt, 1/2” GR8 UNC (2) 118796 - Shoulder bolt, 1/2” GR8 UNC (2) 118924 - Flat washer, .59” ID x .9” OD (2) 143044 - Landroller 2036 (21-August-2017) -21-... -
Page 26: Hydraulic Routing
- 2 Halves 141527 - Tee 3/4 JIC-m x JIC-m x ORB (2) Hydraulic Fasteners Hose Clamp Stacked Hose Clamps Flexible Hose Holder Swing Arm Cylinder Swing Arm Cylinder Wheel Cylinder Wheel Cylinder Wheel Cylinder 143044 - Landroller 2036 (21-August-2017) -22-... -
Page 27: Electrical Routing
B - Yellow C - White D - Red 244511 - Grommit, Wire - 24’ Connection same as above 3/8 (4) 129126 - Dual Lamp, 4-Wire LH (1) Orange - Top Red - Bottom 143044 - Landroller 2036 (21-August-2017) -23-... - Page 28 White Green • Stagger the crimped connections to prevent bunching-up. 129043 - Crimp Splice, 16 ga (4) 244511 - Grommit, 244675 - Wire, 16/3 3/8 (4) Super VU x 24’ (1) 143044 - Landroller 2036 (21-August-2017) -24-...
-
Page 29: Warranty
It is the retail customer’s responsibility to deliver the product to the authorized Degelman dealer, from whom he purchased it, for service or replacement of defective parts, which are covered by warranty. Repairs to be submitted for warranty consideration must be made within forty-five days of failure. - Page 30 Re-torque of fastening hardware, Hydraulic fluid purities, drive train alignments, and clutch operation) 3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement of Degelman such use affects its performance, safety, stability or reliability.
