Summary of Contents for Degelman CASE IH MX 215

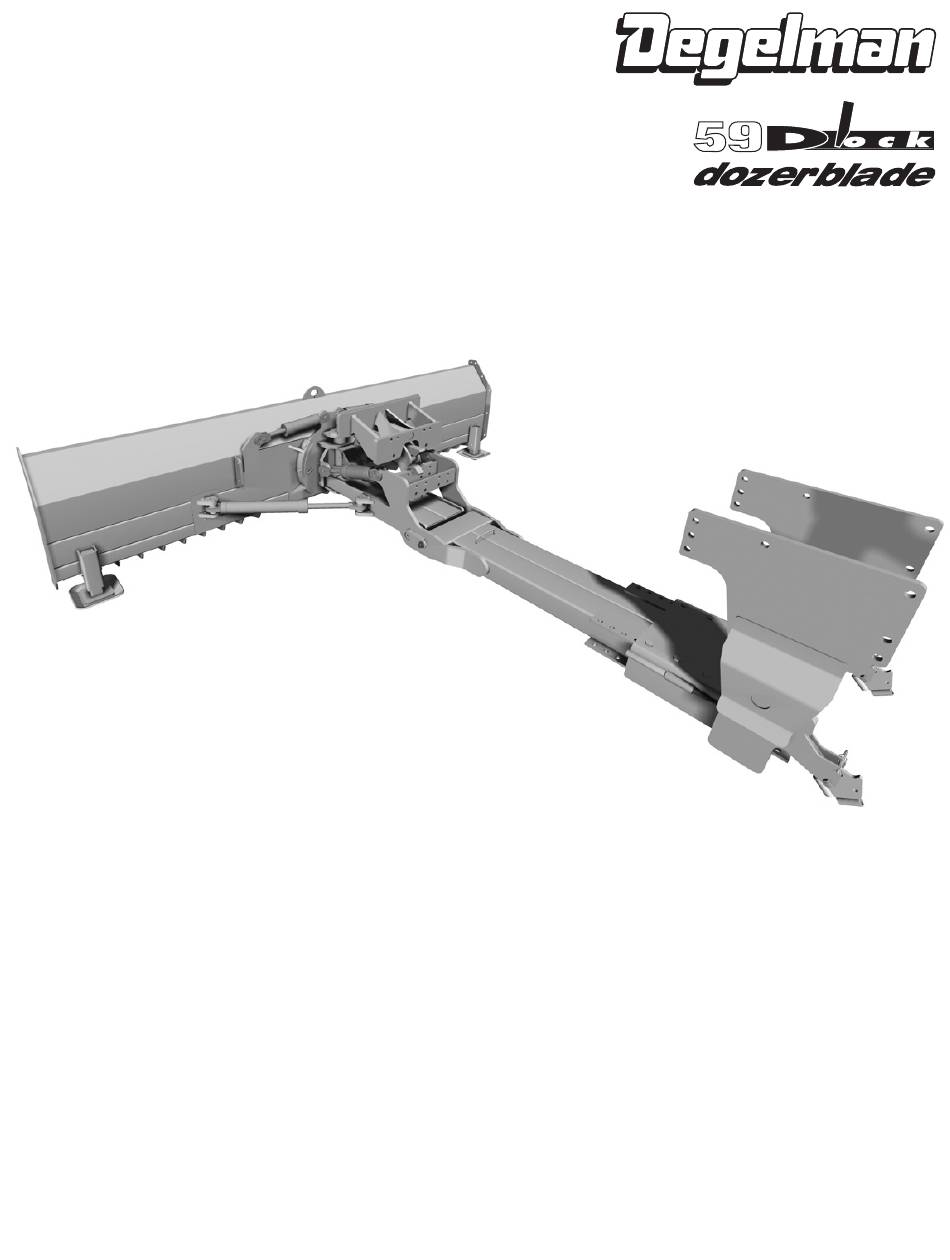

- Page 1 ® CASE IH MX 215- 305 Tractors MANUAL 143253...
- Page 3 ® CASE IH MX 215 - 305 Tractors Blade, pivot frame Cylinders & Hydraulics Main Frame, Brackets, Mounting Safety, Operation, Maintenance Attachments Warranty SAFETY The safety instructions that follow pertain only to this specific equipment. You should be aware of agricultural & industrial safety especially related to heavy equipment.
-
Page 4: Blade Components
Blade Components ® CASE IH MX 215-305 143253... - Page 5 Pivot Frame 143253 781302 14ft 59 Dlock 781301 12ft 781300 10ft 781328 Bell 781326 Tilt ring 118051 Bolt 3/4 x 3 Gr. 8 117414 Locknut 3/4, Gr.C unitorq. 781370 Relief valve bracket 781340 Pivot pin, blade-pivot 118795 Bolt 5/8 x 2 1/4 118447 Locknut 5/8, Gr.C unitorq.
-
Page 6: Lift Cylinders
Cylinders ® CASE IH MX 215-305 Lift Cylinders 143253 122650, 3-1/2 x 8 x 1-1/2 Lift cylinder Qty per cyl 122652 Barrrel 122663 Piston 122658 Lock ring 122656 Open Cap 122660 Rod & Clevis 118441 Lock nut 7/8 UNF unitorq. - Page 7 Hydraulics 143253 Hose lengths ( ) in inches LIFT CYLINDERS 126578 Hose 3/8 x 9 126605 Hose 3/8 x 18 126579 Hose 3/8 x 204 126548 Hose 3/8 x 50 126553 Hose 3/8 x 216 126585 Hose 3/8 x 25 (18) (18) 126538...
- Page 8 Tractor's weight stack; threaded rod remove when dozing ® to length CASE IH MX 215-305 143253 Tractor's weight stack; remove when dozing Negative Boosting Post Bushing Cut threaded rod to length 6 - Front Bracket 2 - Front Hanger 14 - Side Bracket...
- Page 9 Brackets & Components 143253 Mid Mount Side Bracket Front bracket & hanger Main & rear frame Rear frame bolt hole alignment Front bolt bar Main frame: 5th, 7th, 9th, 11th, 13th 780360 Main frame Tractor's hyd 780465 Front hanger ports at rear 118048 Bolt 3/4 x 2 1/2 Hook hose take up...
- Page 10 780145 Dlock linkage 118030 Bolt 5/8 x 3 780788 DL bushing ® 118448 Lock nut 5/8 CASE IH MX 215-305 780789 UHMW plastic block 243500 Lock pin 143253 DL linkage includes.. 780143 Wedge 143116 Compression spring 118913 Roll pin 780146...
- Page 11 Mounting 143253 Dlock closing Take clip pin off Use the Line tractor up over the rear/main frames. Make sure Dlock is open, clip pin is handle to put back on and handle is stored. close the latch Drive forward so that the front bracket pin is just behind the front hanger's hook. It should be lined up so you can drive into the front hanger when it is raised up.
-
Page 12: Operation And Maintenance
SAFETY YOU ? Why is important to ® 3 BIG Reasons: CASE IH MX 215-305 • Accidents Can Disable and Kill 143253 • Accidents Are Costly • Accidents Can Be Avoided HYDRAULIC YOU ARE RESPONSIBLE Keep all parts clean. Replace worn or damaged parts. - Page 13 Operation & Maintenance 143253 Depth shoes Torque Settings Soft uneven ground Hard even ground Imperial Gr. 5 Gr. 8 Metric 10.9 - SAE • Depth shoe low • Depth shoe high (ft lb) (ft lb) • Blade high • Blade low 5/16 7/16 9/16...
- Page 14 Lock washer 3/4 req'd 4 118410 Nut 3/4 5 118539 Flat washer 3/4 Replacement Decals/Reflectors 142386 Warning decal, Falling Blade 142008 Degelman logo 25 3/4 lg 142280 Red reflector 6 3/8 142279 Amber reflector 3 1/4 lg 142780 5900 blade decal...
-
Page 15: Warranty
2. To any goods that have sustained damage or deterioration attributable to a lack of routine maintenance (eg. Re-torque of mounting hardware.) 3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement of Degelman such use affects its performance, safety, stability or reliability.
