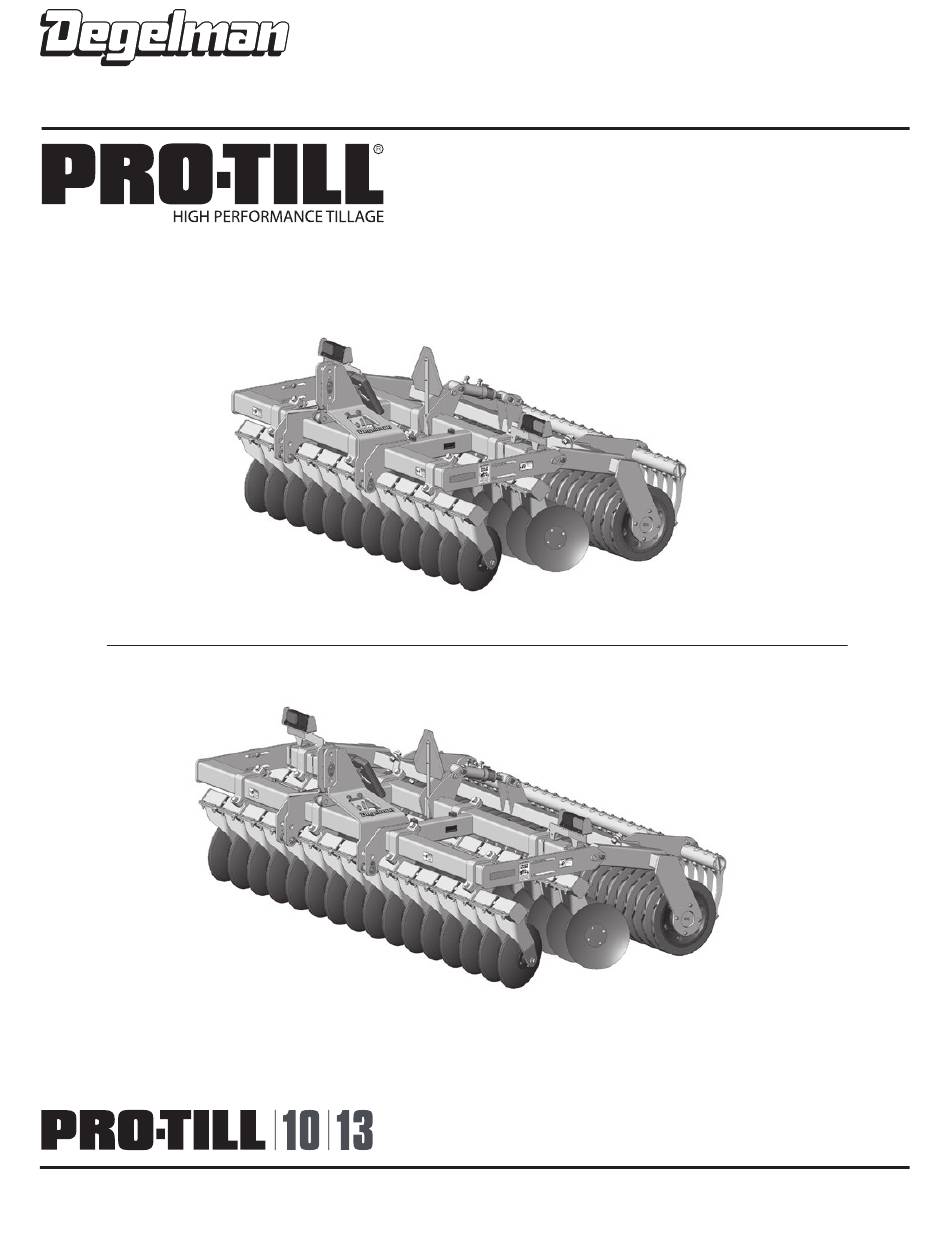

  • Page 1 OPERATOR & PARTS MANUAL 142766 v1.0 PRO-TILL 10/13 D E G E L M A N I N D U S T R I E S B O X 8 3 0 - 2 7 2 I N D U S T R I A L...
  • Page 3 QUICK-START GUIDE WARRANTY PRO-TILL 10/13 REMEMBER! You must complete Product * Refer to operators manual for complete safety and operation info. Registration to be eligible for Warranty. Connect tractor to 3-point hitch. (NOTE: Adjust pin locations to coincide with CAT size of tractor’s 3-point system.)
  • Page 4 Pro-Till 13 157” (3.99m) • Check for missing, worn or (with 20” discs) MAX Depth damaged parts. Pro-Till 10 119” (3.02m) * Refer to operators manual for Pro-Till 13 159” (4.04m) complete safety and operation info. © 2022 Degelman Industries LP...

  • Page 5: Table Of Contents

    * Reference Sheet Quick-Start Guide OPERATORS SECTION - TABLE OF CONTENTS IMPORTANT Safety Notice Introduction Safety Hook-Up Transport Operation Pre-Operation Checklist Operation Guidelines / Suggestions Setting Disc Depth Scraper Settings Troubleshooting Service & Maintenance Maintenance Checklist Maintenance Free Pins & Bushings Repair - Hyd Cylinder Repair IMPORTANT: INSTALL DRY Repair - Pressed Bushing...
  • Page 6 IMPORTANT SAFETY REMINDER DANGER NEVER PARK or SERVICE RAISED Pro-Till with 3-point DANGER NEVER CRAWL UNDER RAISED Pro-Till while on 3-point Hitch! CHANGING DISCS AND SERVICING The best position to safely change or service the discs on the Pro-Till is when it is secured onto blocks in the lowered position.

  • Page 7: Introduction

    Degelman PRO-TILL is the fastest and most versatile piece of tillage equipment you will ever own. Use this manual as your first source of information about this machine.

  • Page 8: Safety

    CAUTION: Indicates a potentially hazardous situation CAUTION that, if not avoided, MAY result in minor or moderate injury if proper practices are not taken, or, serves as a reminder to follow appropriate safety practices. 142766 - PRO-TILL 10|13 (10-February-2022)
  • Page 9 • Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the equipment. • Think SAFETY! Work SAFELY! 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 10: Hook-Up

    • Be sure to match the pressure and return line to one valve bank. • Hoses are labelled: (1) Depth 9. Connect lights (electrical socket plug) to tractor. 10. When unhooking from the tractor, reverse the above procedure. 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 11: Transport

    4. Keep brake pedals locked together at all times. (Refer to tractor manual.) 5. Look up 3-point anti-sway stabilizer system on tractor. IMPORTANT Under NO RIDERS CIRCUMSTANCES should there ever be riders while the Pro-Till is in transport. 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 12: Operation

    4. Adjust Disc Cutting Depth as outlined in the “Setting Disc Depth” section. B. After operating for 2 hours: 1. Check all hardware. Tighten as required. 2. Check all hydraulic system connections. Tighten if any are leaking. 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 13: Operation Guidelines / Suggestions

    1/2” higher. 8. Check/adjust the deflector shield height setting. 9. Harder, packed soil may require additional passes for optimum results. It is recommended to do a second pass at an angle to the original pass. 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 14: Setting Disc Depth

    Best setting is when deflector runs just slightly Note: If running Nose up or Nose down, 3 - Adjust the height so the deflector is running just above the ground. adjust the deflector angle accordingly. slightly above the ground. 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 15: Scraper Settings

    Double Sided Scraper Blades Note: When blades are being reversed, the complete section must be changed at the same time or adjustment will not work properly. 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 16: Troubleshooting

    - Fully extend depth cylinder & drive 12-14 mph on firm soil to clear rollers. - In certain wet soil conditions place scrapers in storage position to continue operating. - If plugging persists wait for soil conditions to dry out even more. -10- 142766 - PRO-TILL 10|13 (10-February-2022)
  • Page 17 - Pre-work heavy trash or wet areas at a slower speed & at a different angle than final pass. - Wait for soil conditions to dry out more. - Ensure tractor has correct tire pressure and is properly ballasted. -11- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 18: Service & Maintenance

    • Damaged hoses raised on 3-point hitch. Maintenance Check - 50 Hours • Check working points & pins • Safety signs clean Annually • Bolt tightness DANGER Never crawl/pass/work under implement while raised on 3-point hitch. -12- 142766 - PRO-TILL 10|13 (10-February-2022)
  • Page 19 5. Ensure hoses are properly clamped and secured in 915 (1240) 1310 (1780) position after routing is complete to provide a cleaner 1250 (1695) 1785 (2420) installation and prevent possible damage or hazards. 1600 (2175) 2290 (3110) v1.1 -13- 142766 - PRO-TILL 10|13 (10-February-2022)
  • Page 20 2. Align, thread into place and hand tighten. 8. Inspect to ensure that O-ring is not pinched and that washer is seated fl at on the face of the port. 3. Tighten to proper torque from the table shown above. -14- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 21: Repair - Hyd Cylinder Repair

    5. Apply Loctite anti-seize before installing cylinder end cap. 6. Torque cylinder end cap to 440 lb.ft (600 N.m). 7. Tighten Set Screw on end cap to 6 lb.ft (8 N.m). -15- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 22: Repair - Pressed Bushing

    8. When both bushings are installed to the Install proper depth, install the new seals. Seal 9. Re-assemble all other 5/16" necessary components. IMPORTANT: DO NOT use oil or grease on pins or bushing surfaces when re-installing. -16- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 23: Decal Location Overview

    Service & Maintenance DECAL LOCATION OVERVIEW 142771 - Decal, Pro-Till 10 - 4” (1) 143162 - Decal, Serial Number Plate 142772 - Decal, Pro-Till 13 - 4” (1) Read Manual (1) 142988 - Decal, 142556 - Decal, Red 142010 - Decal,...
  • Page 24 -18- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 25: Pro-Till Section Overview

    (Rubber Roller shown above - Cage Roller option also available) Disc Gangs Exploded Overview -13' Pro-Till Depth Cylinder 3-point Roller Frame Assembly Dirt Deflector (Rubber Roller shown above - Cage Roller option also available) Disc Gangs -19- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 26: Main Frame Overview

    1-1/2 x 6-1/4 (2) 249950 - Pin Head (2) Mounts with: 117414 - Lock Nut, 3/4 Unitorq (2) 118775 - Flat Washer, 3/4 - F436 (4) 118048 - Bolt, 3/4 x 2-1/2 GR8 (2) -20- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 27: Frame Components

    118177 - Bolt, 5 /16 x 3/4 (3) 5/8 Unitorq (4) 788586 - Coupler 575740 - Pin, Klik - 7/16 (3) Ball, CAT 3N (2) 788490 - Shim, 3/8 x 2-1/4 (4) 788491 - Shim, 1/4 x 2-1/4 (8) -21- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 28: Disc Gang Assembly & Components

    RH Inside Plate B = 6-1/2" to the Edge of the first V-Clamp. -OR- 22" Discs (Both front & rear gang sections. A = 20-1/2" Measurments A & B in diagram). B = 6-1/2" -22- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 29: Disc Arm Components & Disc Options

    IMPORTANT: Safely secure the Pro-Till Premium Discs onto blocks in the lowered position 20” Double-V 22” Double-V 20” Straight 22” Straight when changing or servicing discs. Notched Notched 143556 143553 143562 143566 -23- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 30: Roller Options & Components

    572428 - Washer Do not over-torque setscrew. Endplate, 2 Hole (2) 118186 - Bolt, 1/2 IMPORTANT: Add Blue Loctite to threads. Torque to: 80 lb . ft (108 N . m) x 1-1/4 GR8 (4) -24- 142766 - PRO-TILL 10|13 (10-February-2022)
  • Page 31 117414 - Lock Nut, 3/4 Unitorque (6) 572446 - End Axle Shaft Assembly (2) 572467 - Cage 118775 - Flat Washer, 3/4 F436 (12) Roller Assembly, 118048 - Bolt, 3/4 x 2-1/2 GR8 (6) 4m 12-Bar (1) -25- 142766 - PRO-TILL 10|13 (10-February-2022)
  • Page 32 Set Gap 1/4”-3/8” Set the gap distance from Double Scraper Blade Kits - c/w Bolts & Locknuts. the Scraper blade to the Roller Kits: 10': 572755 (23) 13': 572756 (31) Surface between 1/4” to 3/8” -26- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 33: Hydraulic Routing & Cylinder

    1/32") Light Routing Overview Light Routing Overview 575700 - Wire Harness - PT10 (1) 575705 - Wire Harness - PT13 (1) 129125 - Dual Lamp (1) 129126 - Dual Lamp (1) -27- 142766 - PRO-TILL 10|13 (10-February-2022)

  • Page 34: Warranty

    Re-torque of fastening hardware, Hydraulic fluid purities, drive train alignments, and clutch operation) 3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement of Degelman such use affects its performance, safety, stability or reliability.
  • Page 35 It is the retail customer’s responsibility to deliver the product to the authorized Degelman dealer, from whom he purchased it, for service or replacement of defective parts, which are covered by warranty. Repairs to be submitted for warranty consideration must be made within forty-five days of failure.
