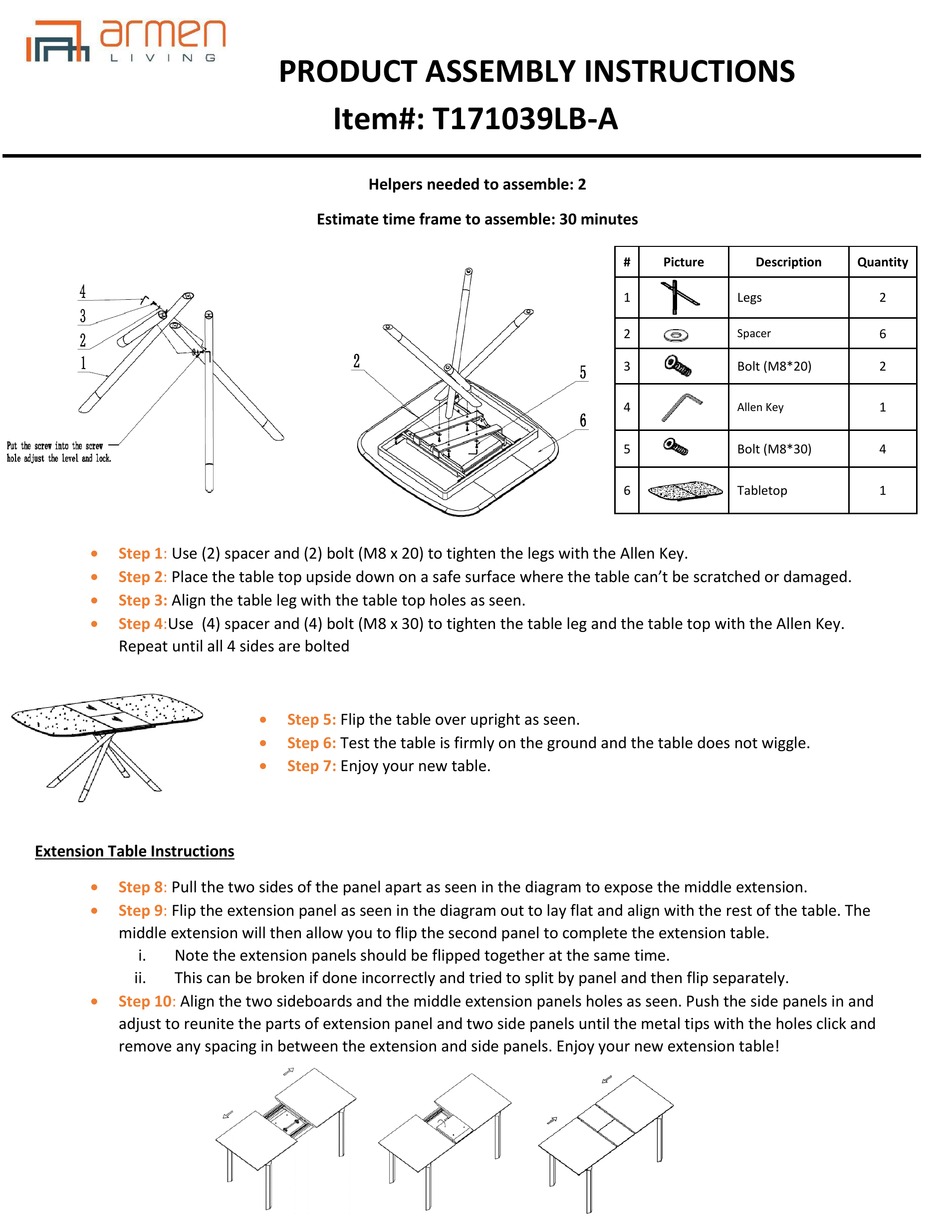

armen LIVING T171039LB-A Product Assembly Instructions


Step 1: Use (2) spacer and (2) bolt (M8 x 20) to tighten the legs with the Allen Key.

Step 2: Place the table top upside down on a safe surface where the table can't be scratched or damaged.

Step 3: Align the table leg with the table top holes as seen.

Step 4:Use (4) spacer and (4) bolt (M8 x 30) to tighten the table leg and the table top with the Allen Key.
Repeat until all 4 sides are bolted

Extension Table Instructions


Step 8: Pull the two sides of the panel apart as seen in the diagram to expose the middle extension.

Step 9: Flip the extension panel as seen in the diagram out to lay flat and align with the rest of the table. The
middle extension will then allow you to flip the second panel to complete the extension table.
i. Note the extension panels should be flipped together at the same time.
ii. This can be broken if done incorrectly and tried to split by panel and then flip separately.

Step 10: Align the two sideboards and the middle extension panels holes as seen. Push the side panels in and
adjust to reunite the parts of extension panel and two side panels until the metal tips with the holes click and
remove any spacing in between the extension and side panels. Enjoy your new extension table!
PRODUCT ASSEMBLY INSTRUCTIONS
Instructions
Item#: T171039LB-A
Helpers needed to assemble: 2
Estimate time frame to assemble: 30 minutes


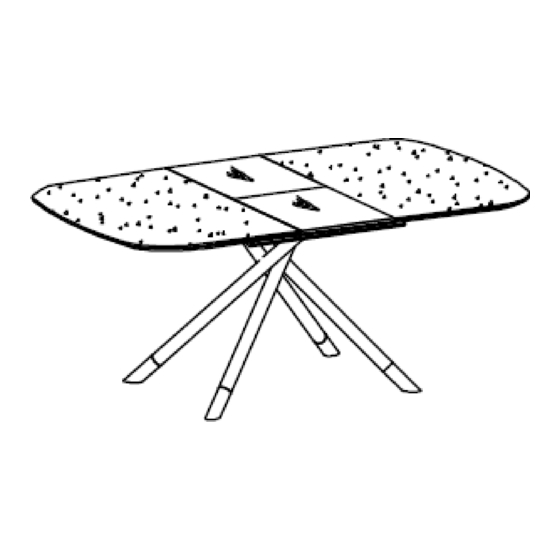

Step 5: Flip the table over upright as seen.

Step 6: Test the table is firmly on the ground and the table does not wiggle.

Step 7: Enjoy your new table.
# Picture Description
1 Legs
2
Spacer
3 Bolt (M8*20)
4
Allen Key
5 Bolt (M8*30)
6 Tabletop
Quantity
2
6
2
1
4
1
