armen LIVING LCMUDRGR Product Assembly Instructions

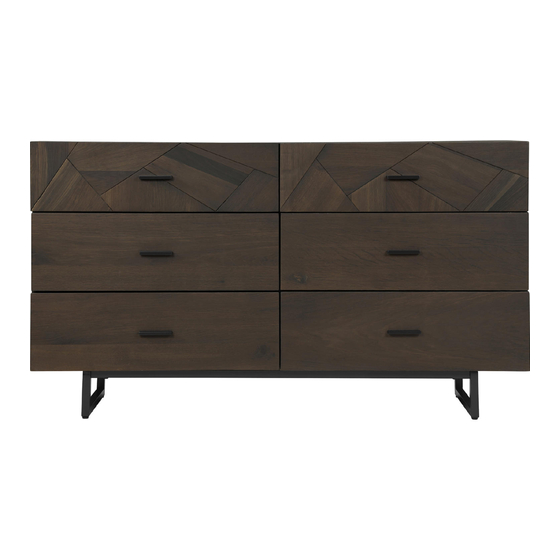

A: Chest x 1
A
Product Assembly Instructions
B: Leg x 2
B
Item # LCMUDRGR
C: Bolt / M8*20
D: Flat Washer / Ø19
E: Lock Washer / Ø12
F: Allenkey V4
G: Bolt / M6*15

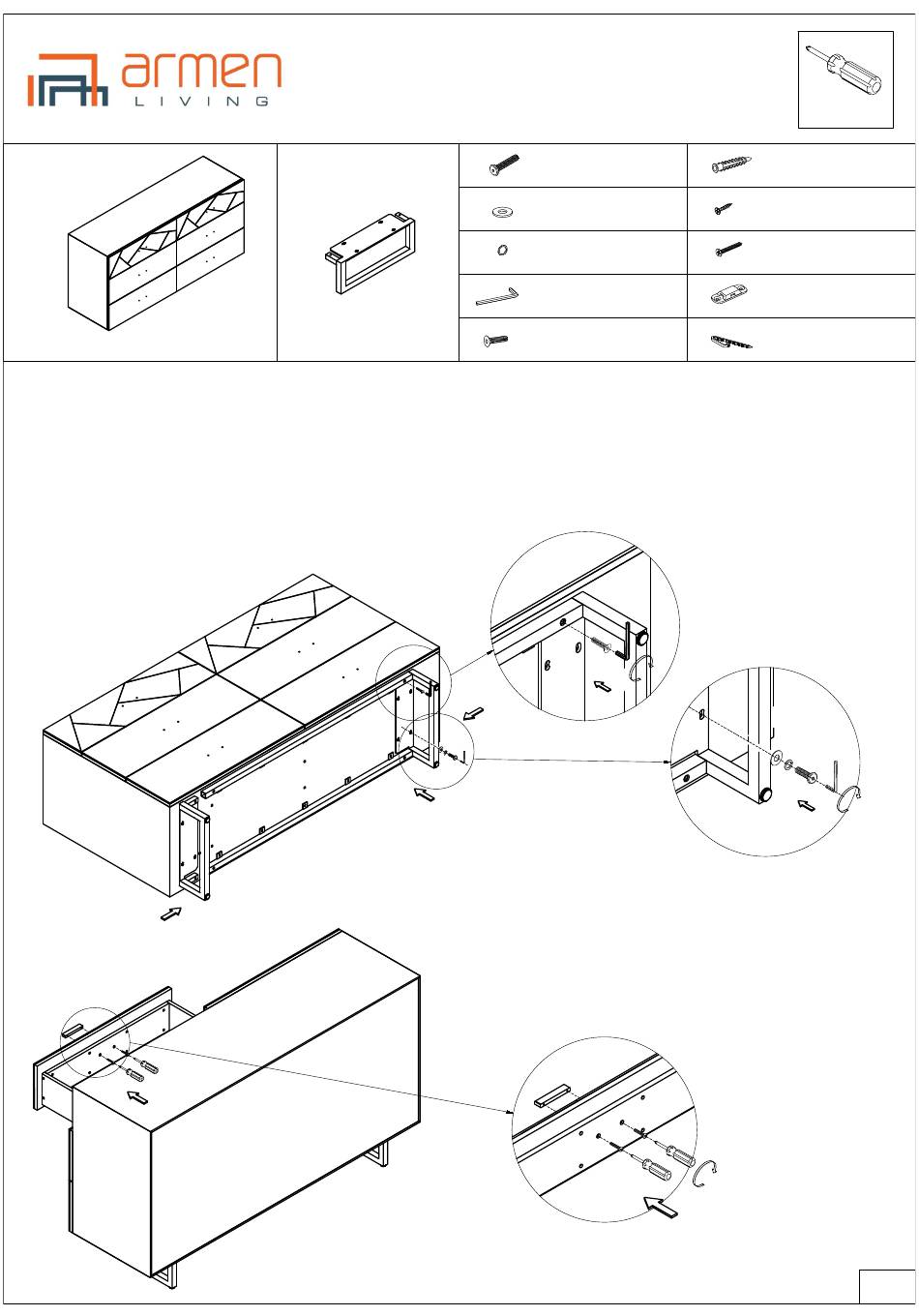

Step 1 : Turn the chest over (A) and place it on the ground where the exterior finish
will not be scratched.
Align the screw holes of the legs (B) with the screw holes of the cross bar.
Insert bolt (G) into each hole,
Once the screws are in place, tighten the screw until firmly attached with the
allen-wrench (F) provided.
Step 2 :
Align the screw holes of the legs (B) with the screw holes of the bottom Chest(A).
Insert flat washers (D) lock washer (E) and bolt (C) into each hole,
Once the screws are in place,tighten the screw until firmly attached with the
allen-wrench (F) provided.
Step 3: Align the screw holes of handle with holes on face of drawer, insert bolt are
in place, tighten the screw until firmly attached with the screwdriver.
x 8 H: Insert nut
x 8 I: Screw M4*20
x 8 J: Screw M4*40
x 1 K: Anti - flip A
x 4 L: Anti - flip B
G
F
NOT PROVIDED
x 4
x 4
x 4
x 4
x 2
D
E
C
F
1/2
