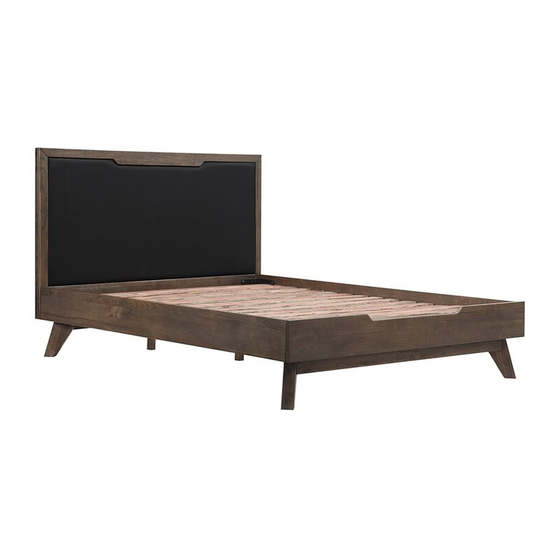

armen LIVING ASTORIA QUEEN BEDFRAME Product Assembly Instructions

A
F
R

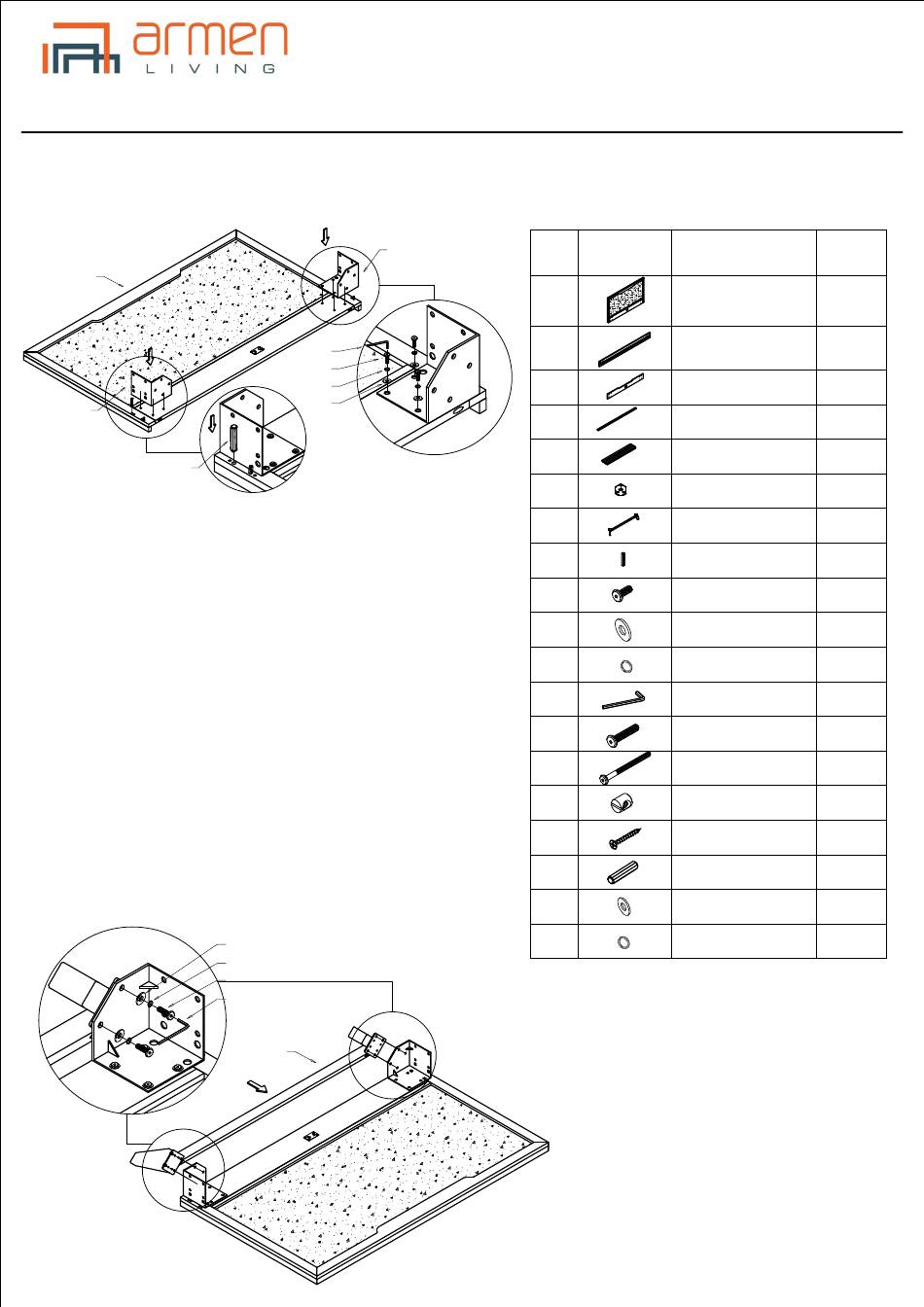

Step 1: Make sure it's on a safe surface where the bedframe cannot be
·
scratched and or damaged and close enough to the location
Step 2: Locate the headboard and the two frame brackets, as these will
·
be the first to be attached.
Step 3: Using the Allen Key you will screw in the headboard and the
·
frame brackets using (4 Bolt - M8 x 20mm; 4 Lock Washer -Ø12mm; 4
Washer - Ø19mm) for each bracket. First place the two washers and
bolt on the interior of the frame using the Allen Key.
i. Repeat for each bracket and make sure it's firmly attached to the
headboard.
ii. Locate the dowel, and place 1 on each bracket on the outside of
the bracket.
PRODUCT ASSEMBLY INSTRUCTIONS
Item#: ASTORIA QUEEN BEDFRAME
Estimate time frame to assemble: 1 Hour
Tools Needed not Included: Phillips Screwdriver
F
M
I
L
K
K
L
I
M
G
Helpers needed to assemble: 2
#
A
B
C
D
E
F
G
H
I
K
L
M
N
O
P
Q
R
S
T
Step 4: Locate the leg set as this will be
·
assembled onto the preassembled heard board
and rails.
Step 5: Using the Allen Key you will screw in
·
the headboard and the one set of leg using (4
Bolt - M8 x 20mm; 4 Lock Washer -Ø12mm; 4
Washer - Ø19mm) for each bracket. First place
the two washers and bolt on the interior of the
frame using the Allen Key.
Description
Headboard
Siderail
Footboard
Middle Support Bar
Slat
Frame Bracket
Leg Set
Middle Leg
Bolt - M8 x 20
Washer - Ø19 mm
Lock Washer - Ø12 mm
Allen key Wrench V4
Bolt - M8 x 40 mm
Bolt - M6 x 90 mm
Insert Nut - M6-thread
Srew - M4 x 30
Dowel - Ø10 x 30
Washer - Ø16
Lock Washer - Ø12
Quannity
1
2
1
1
16
4
2
2
48
48
48
1
2
4
4
8
8
4
4
