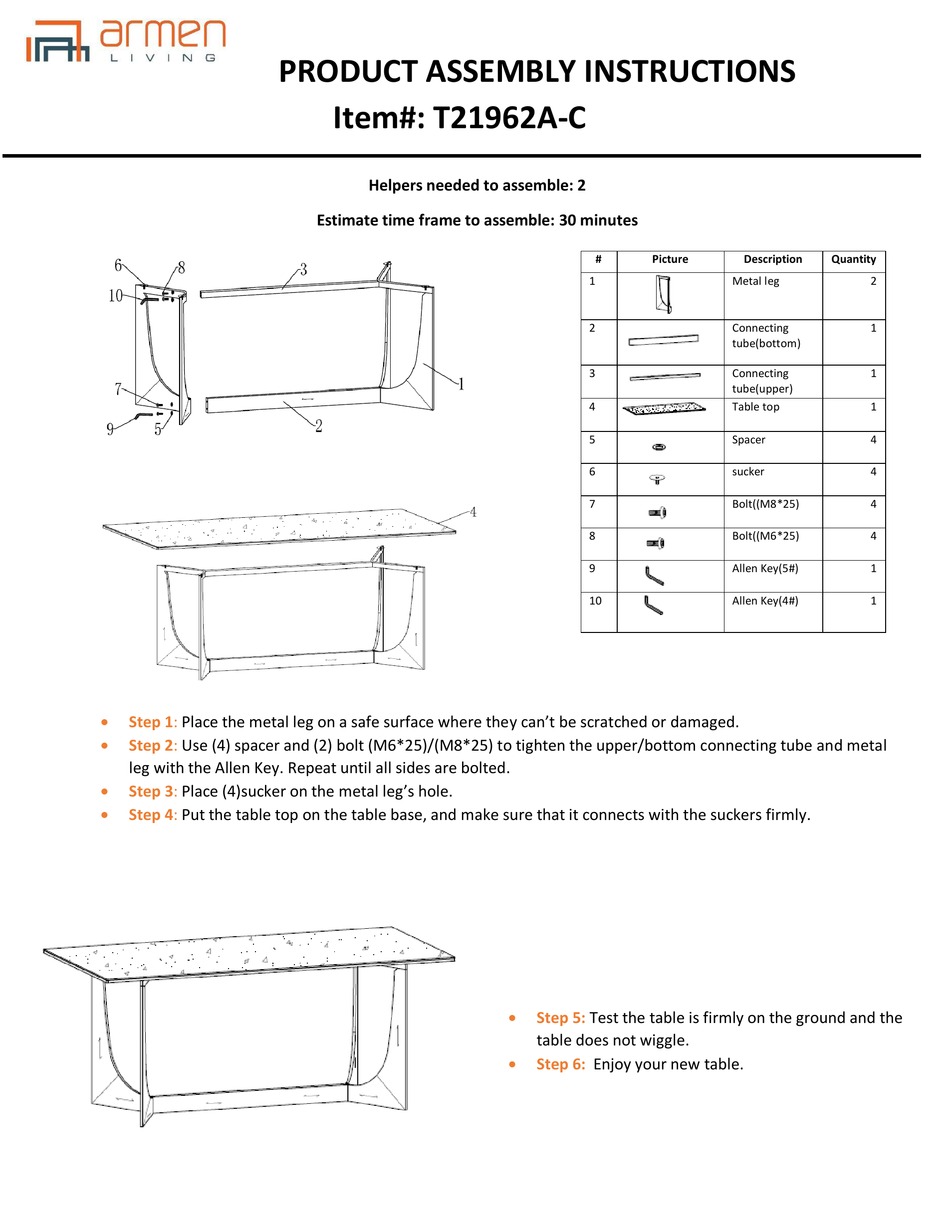

PRODUCT ASSEMBLY INSTRUCTIONS
Instructions
Place the metal leg on a safe surface where they can't be scratched or damaged.
Use (4) spacer and (2) bolt (M6*25)/(M8*25) to tighten the upper/bottom connecting tube and metal
leg with the Allen Key. Repeat until all sides are bolted.
Place (4)sucker on the metal leg's hole.
Put the table top on the table base, and make sure that it connects with the suckers firmly.
Item#: T21962A-C
Helpers needed to assemble: 2
Estimate time frame to assemble: 30 minutes
#
1
2
3
4
5
6
7
8
9
10
Test the table is firmly on the ground and the
table does not wiggle.
Enjoy your new table.
Description
Quantity
Metal leg
2
Connecting
1
tube(bottom)
Connecting
1
tube(upper)
Table top
1
Spacer
4
sucker
4
Bolt((M8*25)
4
Bolt((M6*25)
4
Allen Key(5#)
1
Allen Key(4#)
1
