Summary of Contents for Cherry Aerospace CherryMAX G744

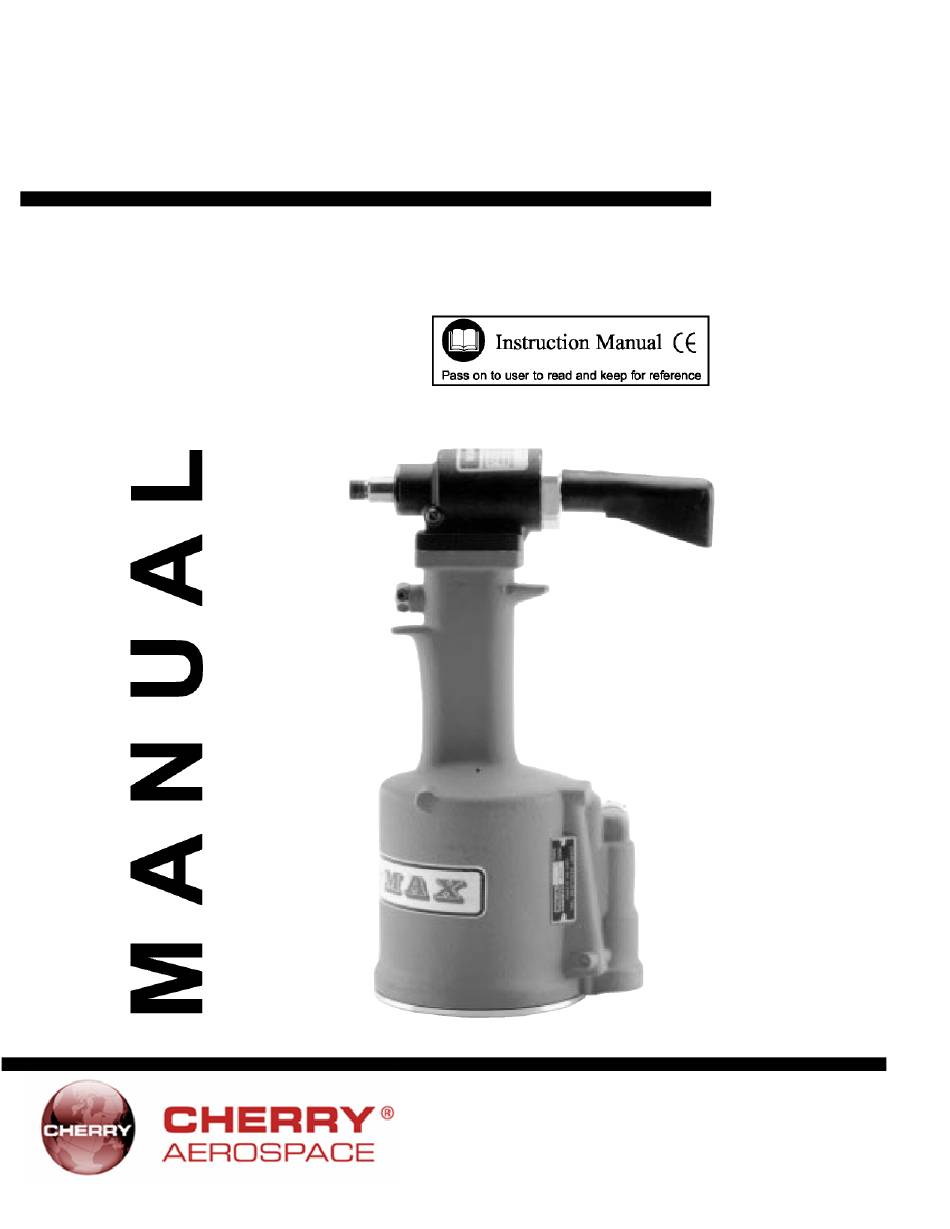

- Page 1 Original Instructions G744 CherryMAX® Power Riveter NSN 5130-01-151-1856...
-
Page 2: Table Of Contents
SPECIFICATIONS FOR G744 Cherry Aerospace’ (CHERRY) policy is one of continuous development. Specifications shown in this document may be subject to change which may be introduced after publication. For the latest information always consult CHERRY. -
Page 3: Safety Warnings
S AF E T Y W AR N I N G S Operating this tool with a damaged or missing stem deflector, or using the deflector as a handle, may result in severe personal injury. The pin deflector should be rotated until the aperture is facing away from the operator and other persons working in the vicinity. -
Page 4: How To Use The G744
Do not pound the rear of the tool head to force rivets into holes as this will damage the tool. Make sure the pulling head is correctly and securely attached. Use automatic transmission fluid Type “A” (no substitutes). Cherry Aerospace recommends using ATF, Dexron III fluid. DEXRON III FLUID SAFETY DATA... -
Page 5: Fill And Bleed Instructions
F I L L A N D B L E E D I N S T R U C T I O N S Bleeding replaces a small amount of fluid in the tool and eliminates any air from the system : connect the tool to the air line, remove cap screw (14). -
Page 6: Overhaul
OVERHAUL CAUTION: Always disconnect the air supply T H E G 7 4 0 K T T O O L K I T before any overhaul or maintenance. The disassembly and reassembly procedures accomplished following instructions below and the drawings on pages 8 &... -
Page 7: Handle Sub-Assembly
H AN D L E S U B - AS S E M B L Y Disconnect tool from air supply. Remove parts (24) through (28). Holding tool upright, remove four socket-head cap screws (54). Lift head assembly from handle (31) and set aside O-ring (52) and gasket (53). -
Page 8: G744 Pulling Heads
G 7 4 4 P U L L I N G H E A D S Pulling Heads are not furnished with riveter and must be ordered separately. See the appropriate Tool Sheet for mounting, maintenance and operation instructions of particular pulling heads. Pulling Head Type Adapter... -
Page 9: Cross Section Drawing Of G744
C R O S S S E C T I O N O F G 7 4 4... -
Page 10: Parts List For G744 Riveter
P A R T L I S T F O R T H E G 7 4 4 ( 7 4 4 - 0 8 1 ) R I V E T E R AS S E M B L Y ITEM PART NO DESCRIPTION... -
Page 11: Exploded View Of G744
E X P L O D E D V I E W O F G 7 4 4... -
Page 12: Declaration Of Conformity
GM corporation. ® PARKER is a trademark of Parker Hannifin Corporation ® LUBRRIPLATE is a trademark of Fiske Brothers Refining Co. © 2007 Cherry Aerospace TM-G744 Supplier’s Federal Identification Code: 11815 Rev.: A Date: 02/05/07 CR# 07-0097...
