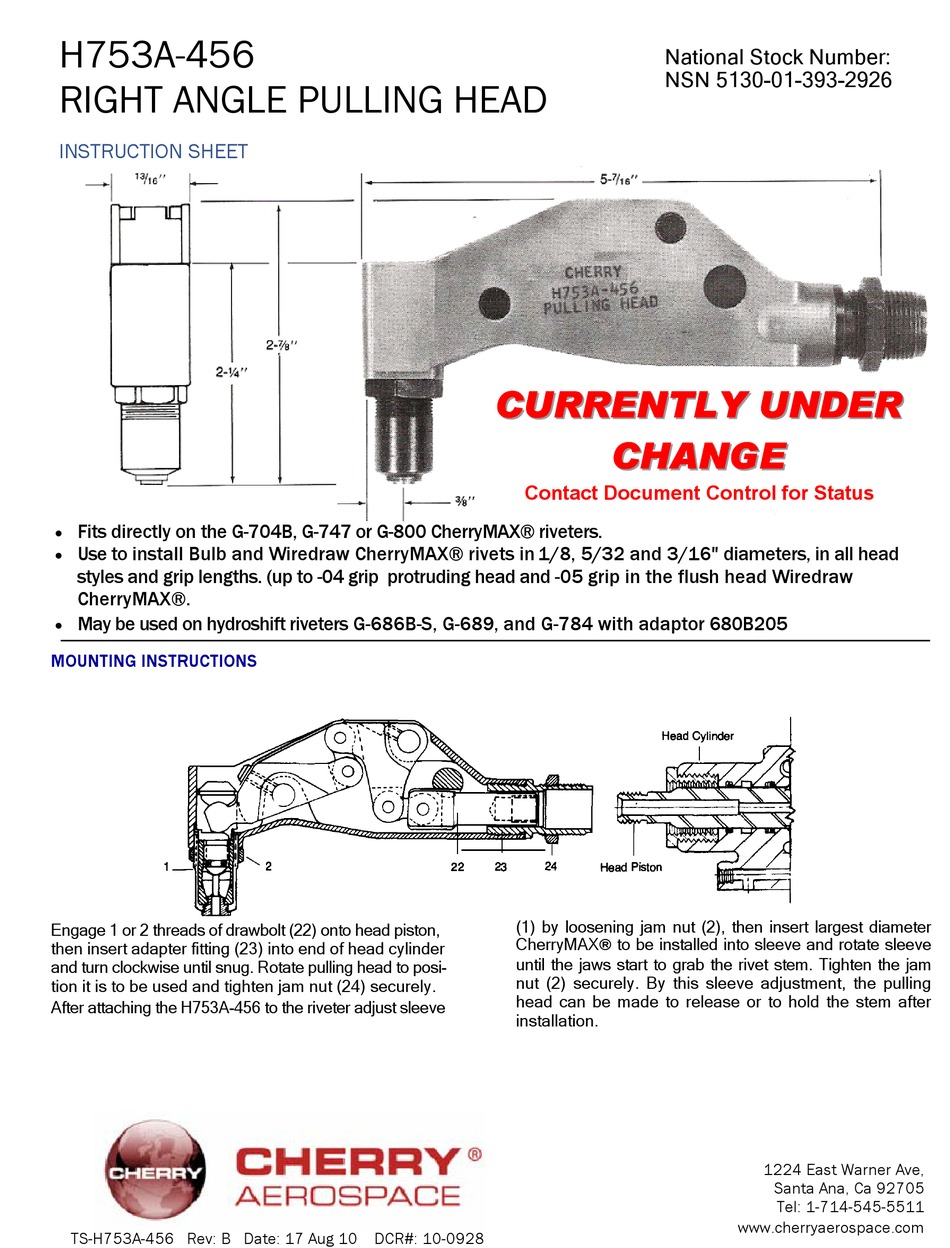

Cherry Aerospace H753A-456 Instruction Sheet

H753A-456

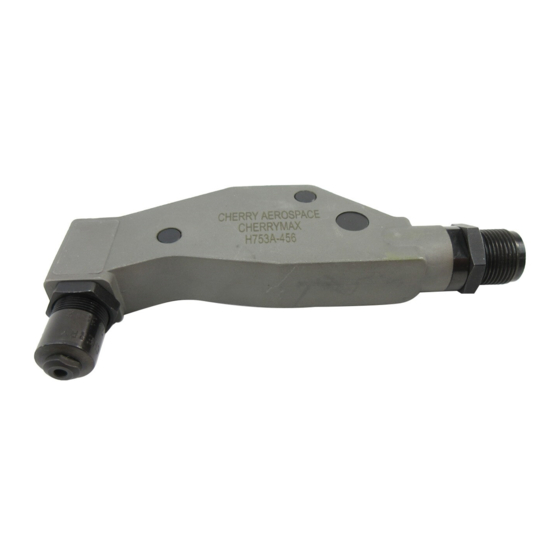

RIGHT ANGLE PULLING HEAD
INSTRUCTION SHEET
Fits directly on the G-704B, G-747 or G-800 CherryMAX® riveters.

Use to install Bulb and Wiredraw CherryMAX® rivets in 1/8, 5/32 and 3/16" diameters, in all head

styles and grip lengths. (up to -04 grip protruding head and -05 grip in the flush head Wiredraw
CherryMAX®.
May be used on hydroshift riveters G-686B-S, G-689, and G-784 with adaptor 680B205


MOUNTING INSTRUCTIONS

Engage 1 or 2 threads of drawbolt (22) onto head piston,
then insert adapter fitting (23) into end of head cylinder
and turn clockwise until snug. Rotate pulling head to posi-
tion it is to be used and tighten jam nut (24) securely.
After attaching the H753A-456 to the riveter adjust sleeve
TS-H753A-456 Rev: B Date: 17 Aug 10 DCR#: 10-0928
National Stock Number:
NSN 5130-01-393-2926
C U R R E N T
C U R R E N T
C U R R E N T
C H A
C H A
C H A
Contact Document Control for Status
(1) by loosening jam nut (2), then insert largest diameter
CherryMAX® to be installed into sleeve and rotate sleeve
until the jaws start to grab the rivet stem. Tighten the jam
nut (2) securely. By this sleeve adjustment, the pulling
head can be made to release or to hold the stem after
installation.
L Y U N D E
L Y U N D E
L Y U N D E
N G E
N G E
N G E
1224 East Warner Ave,
Santa Ana, Ca 92705
Tel: 1-714-545-5511
www.cherryaerospace.com
