Cherry Aerospace H83HL-6MB Technical Data Sheet

H83HL-6MB
PULLING HEAD FOR -6 DIA 130° MAXIBOLT
Technical Data Sheet, Page 1 of 2

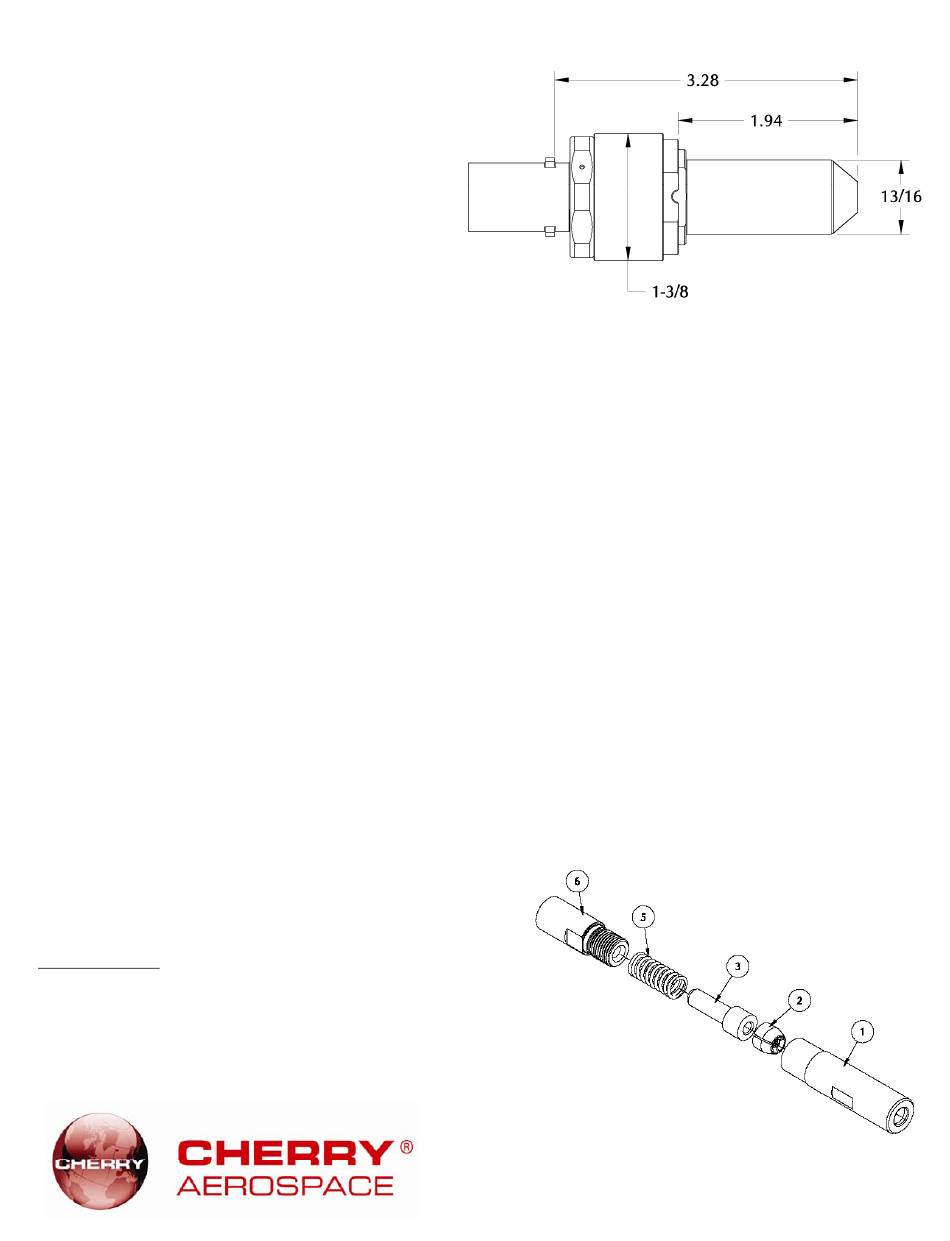

DIMENSIONAL DATA

(all measurements in Inches, see figure 1)
•
Tool Weight (without riveter): .33 Lbs (.150 Kg).

CHOICE OF RIVETERS

•
G83 or G84 Cherry® Riveters
•
May be used with G84-LS Cherry® split riveters; use with adaptor 744-700.

MOUNTING INSTRUCTIONS

•
Attach riveter to air source for correct piston positioning; on the hand riveters, make sure that the pressure has
been released and that the correct adaptors are used.
•
Push against the riveter piston and thread collet assembly onto the piston.
•
Snap sleeve assembly onto riveter bayonnet mount.

USAGE

•
This tool was designed to install -6 Diameter 130° Titanium Maxibolt

BEFORE USE, MAKE SURE THAT:

•
The correct pulling head is used and is properly mounted on the recommended riveter.
•
Proper air source is connected (see riveter specification for recommended pressure).
•
Make sure that the tool is clean and in good working condition
•
Make sure that the nut is snug against the Polyurethane Spring (item 11); do not over-tighten.

DURING OPERATION

•
Inspect the active area of the nosepiece regularly.
•
Keep the tool clean, especially the nosepiece and jaws; pay special attention when sealants are used.
•
If stem slippage occurs, the Jaws need to be either cleaned or replaced.

PREVENTATIVE MAINTENANCE

•
Clean the Insert, jaws and jaw cavity every 1,000 installations, or whenever failures occurs.
•
Lubricate outside configuration of the jaws with Lubriplate® or similar light lubricant.
•
Inspect regularly and keep the active area clean and in good working condition.
•
Replace worn or broken components.

ASSEMBLY / DISASSEMBLY PROCEDURE

Caution: Use Loctite® 242 on the threaded elements
Collet Assembly
Grease the tapered area of the Jaws with Lubriplate®.
Assemble as shown in the exploded view; make sure the jaws
(2) are properly aligned.
TS-H83HL-6MB Rev: A Date: 05/04/11 CR: 11-0486
TITANIUM FLUSH HEAD
TM
Figure 1
flush head fasteners (CR7774S-06).
TM
