Cherry Aerospace H83B-6MBU Technical Data Sheet

H83B-6MBU
MAXIBOLT STRAIGHT PULLING HEAD,
FOR -6 DIAMETER "U" TYPE MAXIBOLT
Technical Data Sheet, Page 1 of 2

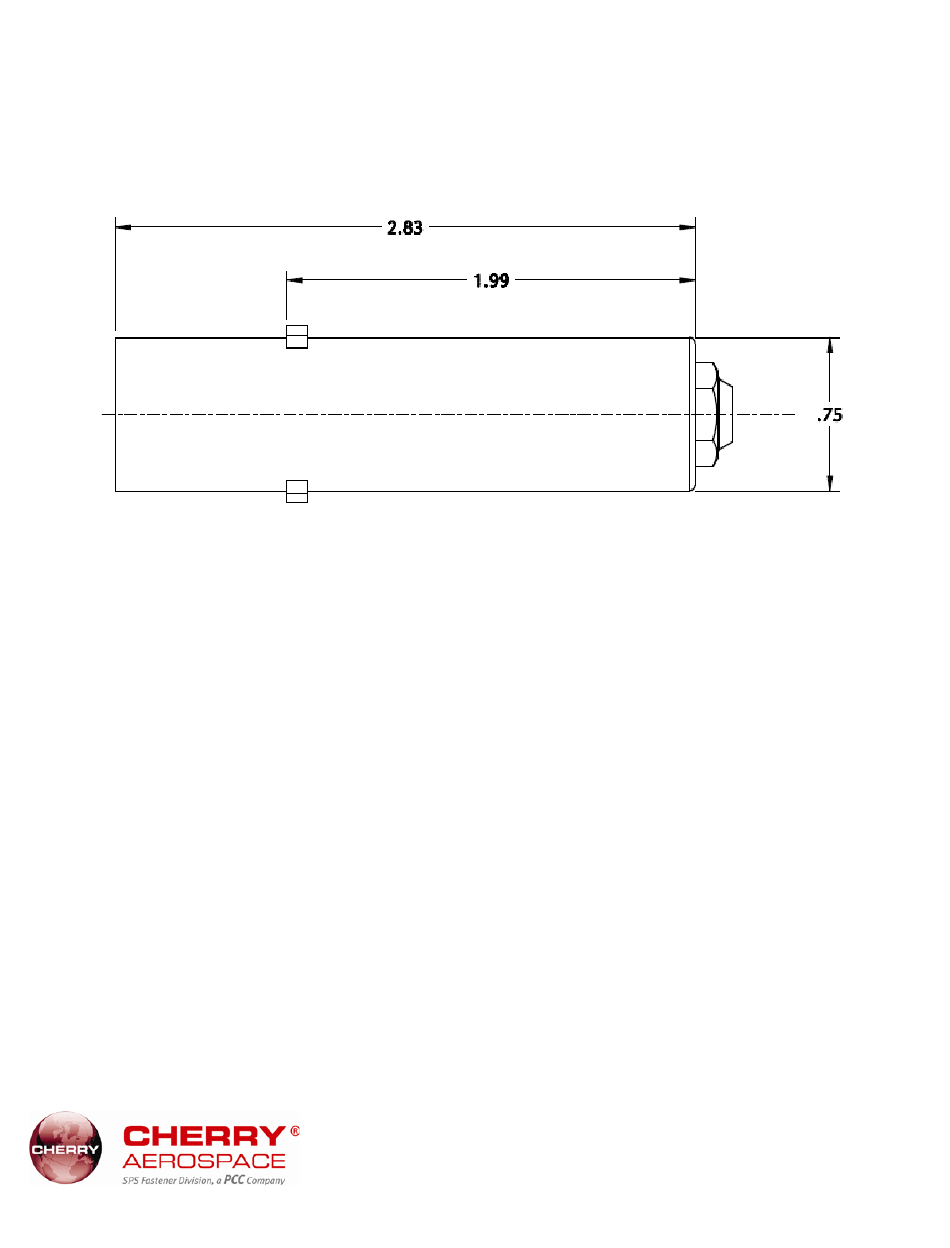

DIMENSIONAL DATA

(all measurements in Inches, see figure 1)
Pulling Head Weight: 0.2 Lbs (0.09 kg)

CHOICE OF RIVETERS

• G83A
and G84 Power
• G84-LS Split Power Riveter (with adaptor 744-700)

MOUNTING INSTRUCTIONS

• Attach riveter to air source for correct piston positioning.
• Thread Collet Assembly securely onto the riveter head piston.
• Depress the trigger and attach the sleeve assembly onto the bayonet mount.

USAGE

•
Use for -6 diameter
BEFORE USE, MAKE SURE THAT:
• Proper air source is connected (see riveter
•
Inspect the front end of the nosepiece to make
DURING OPERATION
•
Visually inspect the active area of the nose piece regularly.
• Keep the nose piece and jaws
• If stem slippage occurs,
TS-H83B-6MBU Rev: C Date: 08/16/17 CR: 17-0658
A
Riveters
Cherry "U" type Maxibolt® and Huck™
clean, especially
clean or replace the
FASTENERS
®
Figure 1
(ALCOA) "U" and
manual for recommended pressure).
sure that it is clean and in good working condition
when sealants are used.
internal jaws.
"S" Type Blind Bolts.
1224 East Warner Ave,
Santa Ana, CA 92705
Tel: 1-714-850-6022
www.cherryaerospace.com
