Cherry Aerospace H828-6MB Technical Data Sheet

H828-6MB
Right Angle Pulling Head for BlindBolt® (MaxiBolt®) fasteners
TECHNICAL DATA SHEET, Page 1 of 2
DIMENSIONAL DATA (all measurements in Inches, see Figure 1)
• Tool Weight (without riveter): 2.1 Lbs (0.9 Kg)
CHOICE OF RIVETERS
• G744 Cherry Riveters (no adaptation necessary)
• G83 or G84 Riveters with Adapters P/N 744-200
ADAPTOR INSTRUCTIONS
• Remove the bayonet adapter from riveter (if present)
• Thread and tighten adapter 744-200 onto the Pulling
Head
MOUNTING INSTRUCTIONS
• Attach riveter to air source for correct piston positioning.
• Push the drawbolt assembly forward (see Figure 1), before
mounting
• While holding drawbolt in a forward position, thread the
pulling head onto the riveter, making sure that both internal
and external threads are connected.
• Use the jam-nut to lock the pulling head in position.
• Cycle the tool to make sure it is functional.
BEFORE USE, CHECK IF:
• The pulling head is correctly mounted and the proper riveter is
selected.
• Proper air source is connected (see riveter specification for recommended pressure).
• The appropriate nose piece is used ("U" or "S" type – see component table).
• The tool is clean and in good working condition.
• The Jaws provide enough clearance for the Blindbolt® serrated area to fully engage in the tool
freely; if the serrated stems get stuck inside of the jaws, the pulling head was mounted on the
riveter incorrectly. See "Mounting Instructions".
USAGE
• This tool was designed to install "-6" diameter BlindBolt® (MaxiBolt®) fasteners.
DURING OPERATION
• Inspect the active area of the nosepiece regularly.
• Remove the broken stem by hand after each installation and dispose of them; if the broken stems
get stuck, the Jaws do not open enough. Make sure the pulling head is correctly mounted.
• Keep the tool clean, especially the nosepiece and jaws; pay special attention when used with
sealants and adhesives.
• If stem slippage occurs, the Jaws need to be either cleaned or replaced.
TS-H828-6MB, Rev: B, Date: 12/14/07, DCR# 07-1472

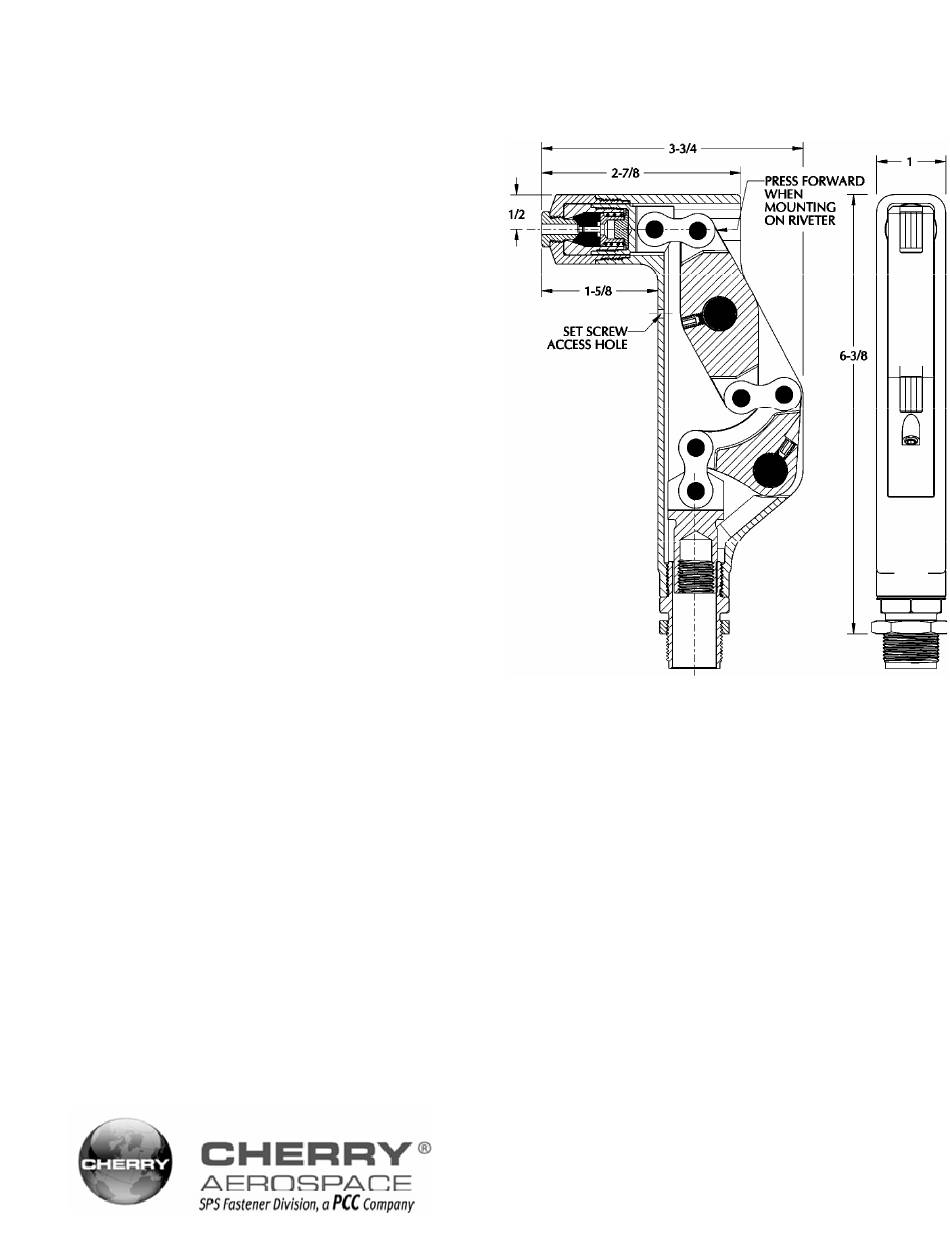

Figure 1
