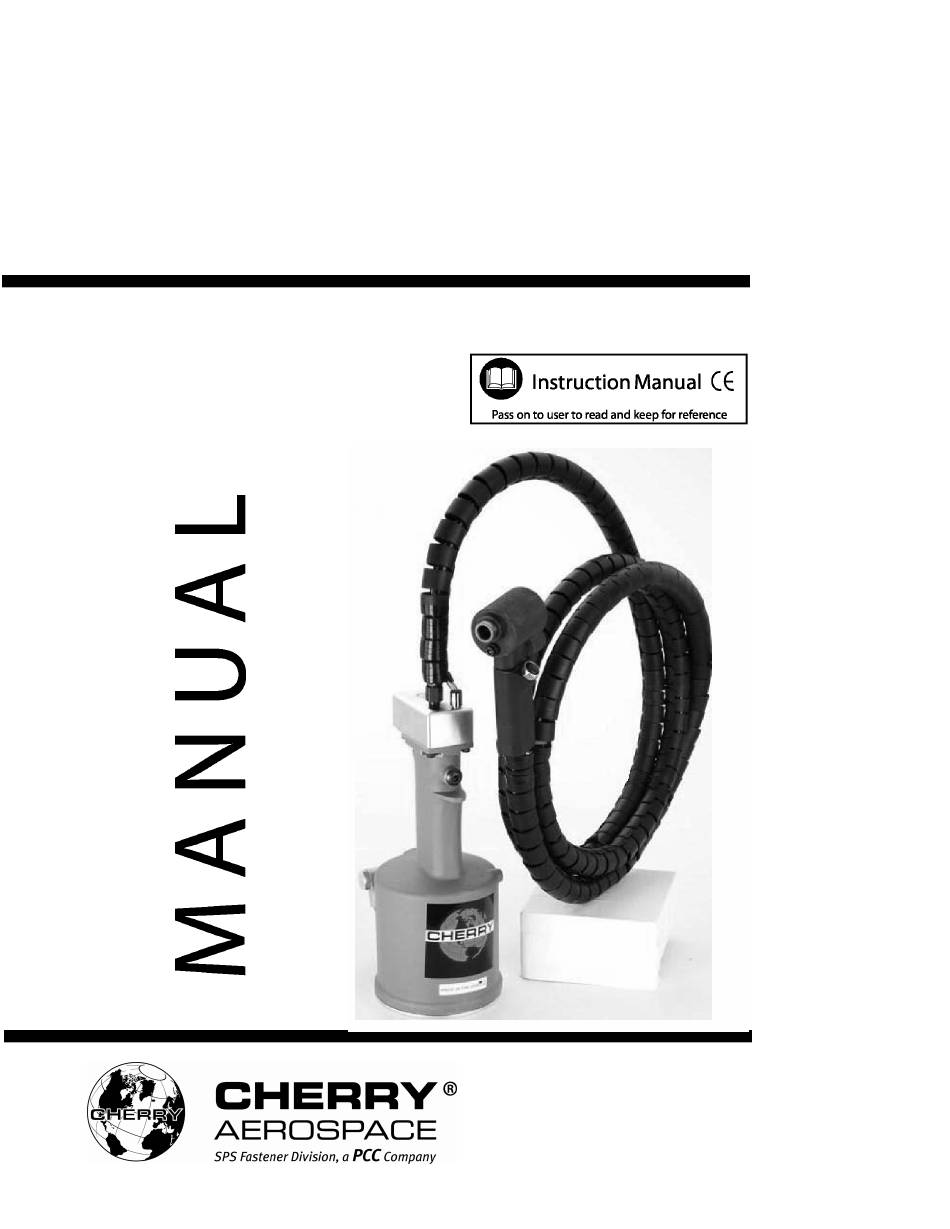

- Page 1 ORIGINAL INSTRUCTIONS G84-LS Split Riveter 1224 E. Warner Ave Santa Ana, CA 92705 www.cherryaerospace.com...
-
Page 2: Table Of Contents
DESCRIPTION The G84-LS is a powerful, rugged, compact split riveter designed for ergonomic, high speed and reliable operation. Adaptors are available for mounting most Cherry pulling heads; it will install most popular sizes and types of aircraft pull type fasteners including lock-bolts, blind-bolts, etc. -
Page 3: Recommended Usage
RECOMMENDED USAGE Adapter To Adapt to Tool Mounting This Riveter is designed to install pull type fasteners in conjunction with System compatible pulling heads. 744-500 Cherry® G744 mount Pulling heads suitable for G84-LSR or comparable riveters will mount directly with no ®... -
Page 4: Maintenance And Repair
MAINTENANCE AND REPAIR Note: Minor fluid loss over time at the piston rod is normal, and does not indicate seal damage. See troubleshooting guide (page 8) for simple tips on when tool maintenance or repair is necessary. Always remove the air source from the tools prior to performing any maintenance work. ... -
Page 5: Bleeding
FILL AND BLEED Figure 15 Figure 12 Figure 14 Figure 13 Figure 18 Figure 19 Figure 17 Figure 16 Figure 20 Required tools: Pressurized oil source with correct fitting (#10-32) A. Replenishing the fluid (refer to page 9 for Component List) This operation is necessary when a major fluid loss occurred. -
Page 6: Tool Overhaul
TOOL OVERHAUL Tool overhaul is needed in case of tool malfunction, massive fluid loss or as part of your routine maintenance program. TOOLS NEEDED: G84-LSKT – tool kit, Needle Nose Pliers, G84-LSKS – service kit: complete seal and fastener set for tool overhaul G84-LSKT TOOL KIT 8 3 6 B 7 4 0 Valve Spring Installation Tool... -
Page 7: Head Sub-Assembly
HEAD CYLINDER SUB-ASSEMBLY (744-202) Caution: Remove Pulling Heads or other attachments before attempting to disassemble. Disassembly instructions: Remove screw (57) and unscrew lock ring (58) with spanner wrench 530-202. Drain the fluid over an oil pan; dispose according to environmental regulations. ... -
Page 8: Tool Care
TOOL CARE This tool has been designed for optimum service with minimum care. In order to extend the life of the tool, please follow the simple instructions given below: Make sure the system is filled properly with fluid and is free of air (see fill and bleed instructions) ... -
Page 9: Parts List
PART LIST FOR THE G84-LS SPLIT RIVETER (744-190) ITEM PART NO. DESCRIPTION ITEM NO. PART NO DESCRIPTION 744-189 Sub-Assembly, Handle P268 O-Ring P884 Ring, Retaining 740B14 Sleeve, Valve 740B5 Cover, Base P891** O-Ring P886 Ring, Retaining 740A18 Spring 740C4 Base, Handle... - Page 10 G84-LS CROSS SECTIONAL VIEW...
-
Page 11: Exploded View
G84-LS EXPLODED VIEW... -
Page 12: Declaration Of Conformity
Declaration of Conformity W e, Cherry Aerospace, 1224 E. W arner Ave., Santa Ana, CA 92705 declare under our s ole res ponsibility that the product t y p e G 8 4 - L S Serial No. ___________________ to which this declaration relates is in conformity with the following standards EN ISO 12100- parts 1 &2...
