QUICK USER GUIDE
!!! Please refer to our website: www.geemarc.com for an up
to date user guide, as there may be important updates and
changes you need to be aware of !!!
CAUTION: Use only the battery provided. There may be a risk of
explosion if a wrong type of battery is used for the parent unit. The
battery cannot be subjected to high or low extreme temperature
and low air pressure at high altitude during use, storage or
transportation. Disposal of battery into fire or a hot oven, or
mechanically crushing or cutting or the battery can result in an
explosion. Leaving the battery in an extremely high temperature
surrounding environment can result in an explosion or the leakage
of flammable liquid of gas. Battery subjected to extremely low air
pressure may result in an explosion or the leakage of flammable
liquid or gas. Dispose of used battery according to the instructions.
o
Normal operating temperature for the product (e.g. 0 C ~ 40
Use only the adapters and battery listed below.
Power adapter information: output: 6V DC 0.45A, 2.7W.
Vtech Telecommunications Limited.
Model: VT05EEU06045 (EU), VT05EUK06045 (UK)
Rechargeable Battery Pack: Model: NI-MH AAA500x2.
2.4V, 500mAh. Corun.
Rechargeable Li-ion Battery: Model: GSP042535. 3.7V,
320mAh, 1.184 Wh. Guangzhou Great Power Energy & Technology
CO., Ltd.

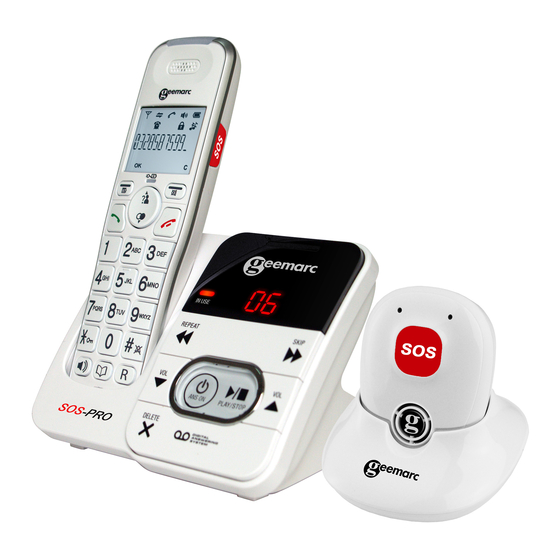

Base
Handset
1
Alarm pendant (SOS-PRO295)
Connection
o
C).
PACKAGE CONTENTS
1 Telephone base, 1 cordless Handset, 1 power adapter, 1 Alarm pendant,
1 pendant charger, 1 lanyard with breakout clip, 1 Telephone line cord, 1
NiMh battery pack, 1 Quick user guide.
INSTALLATION
Connecting the telephone
Connect the telephone cable to the telephone line socket (A) and to the
telephone wall socket (B).
Connect the power adapter jack to base (C) then connect the power
adapter plug in mains power (D).
Note: Use only the power adapters supplied with the phone.
Charger: Connect the power adaptor of the pendant in main power (D)
Connecting the battery
Plug the battery connector securely into the
socket inside the handset battery
compartment.
Insert the supplied battery as indicated.
Align the cover flat against the battery compartment,
and then slide it upwards until it clicks into place.
At the first starting, the phone will ask you to select the language
that you want.
Charging the batteries
Charge the batteries for at least 16 hours when charging for the first time
for the handset and the alarm pendant.
OVERVIEW
Base
1- /HANDSET LOCATOR
While the phone is idle, press to page all handsets.
2- IN USE
ON when handsets are in use, or when the answering system is answering
an incoming call.
ON when a handset is being registered.
Flashes when there is an incoming call or when handsets are being
deregistered.
Flashes when another telephone is in use on the same line.
3- MESSAGE COUNTER
Flashes when there is an incoming call.
4- /SKIP :
Press to skip a message.
5- VOL ( )
During message playback, press to increase the listening volume. While
in idle mode, press to increase the base ringer volume.
6- /PLAY/STOP
Press to start or stop message playback.
7- /ANS ON
Press to turn the built-in answering system on or off.
8- /DELETE
Press to delete the message currently playing.
Long press to delete all old messages when the phone is not in use.
2
9- VOL ( )
During message playback, press to decrease the listening volume. While in
idle mode, press to decrease the base ringer volume.
10- /REPEAT
Press to repeat a message.
Press twice to play the previous message.
Handset
11. EARPIECE
12. LCD DISPLAY
13. CHARGE LIGHT ( )
Steadily on when the handset is charging in the charger.
14. MENU/OK ( )
In idle mode: Press to access the main menu.
In sub-menu mode: Press to confirm the selection.
During a call: Press to access Intercom / Phonebook / Redial list / Call list.
15. UP/CALL LIST ( )
In idle mode: Press to access the call list.
In menu mode: Press to scroll up the menu items.
In phonebook list/redial list/call list: Press to scroll up the list.
In editing mode: Press to move the cursor one character to the left.
During a call: Press to increase the listening volume.
During ringing: Press to increase the ringer volume.
16. TALK ON ( )
In idle/pre-dial mode: Press to make a call in earpiece mode.
In phonebook/redial list/call list: Press to make a call to the selected entry
in the list in earpiece mode.
During ringing: Press to answer a call in earpiece mode.
17. DOWN/REDIAL LIST ( )
In idle mode: Press to access the redial list.
In menu mode: Press to scroll down the menu items.
In phonebook list/redial list/call list: Press to scroll down the list.
In editing mode: Press to move the cursor one character to the right.
During a call: Press to decrease the listening volume.
During ringing: Press to decrease the ringer volume.
18. SPEAKERPHONE ( )
In idle/pre-dial mode: Press to make a call in speakerphone mode. Press
again to switch to earpiece mode.
In phonebook list/redial list/call list: Press to make a call to the selected
entry in the list in speakerphone mode. Press again to switch to earpiece
mode.
During ringing: Press to answer a call in speakerphone mode. Press again
to switch to earpiece mode.
19. MICROPHONE
20. SOS
In idle mode: Press and hold for a second to enter the emergency calling
sequence set in your handset.
In call mode: press and hold for 2 seconds to stop the emergency call.
21. CANCEL/MUTE ( )
In main menu mode: Press to go back to idle screen.
In sub-menu mode: Press to go back to previous menu.
In sub-menu mode: Press and hold to go back to idle screen.
In editing/pre-dial mode: Press to delete a character/digit.
In editing/pre-dial mode: Press and hold to delete all the characters/digits.
During a call: Press to mute/resume the microphone.
During ringing: Press to silence the handset ringer.
In idle mode: Press to intercom another handset.
22. TALK OFF ( )
During a call: Press to end a call and go back to idle screen In menu/editing
mode: Press to go back to previous menu.
In menu/editing mode: Press and hold to go back to idle screen.
In idle mode: Press and hold to power off the handset.
Press and hold to power on when it is off.
23. ALPHANUMERIC KEYPAD, STAR ( ), HASH (
In predial or editing mode: Press to insert a digit / character / / .
key in idle mode: Press and hold to enable or disable the keypad
lock.
3
key in idle mode: Press and hold to turn on/off the ringer.
0
key in idle/pre-dial mode/number editing mode: Press and hold to
insert a pause.
24. R
During a call: Press to answer a new call if you subscribed to Call Waiting
service from your service provider.
25. PHONEBOOK ( )
In idle mode: Press to access the phonebook.
ALARM PENDANT
26. SOS: In idle mode, press to enter the emergency calling sequence
set on your handset.
In call mode: press and hold for 2 seconds to stop the emergency call.
27.
/ During a call: increase or increase the receiving volume
:
level, during ringing: increase or decrease the ringer level.
Press and hold for 2 sec to do a flash
incoming call ringing.
28. M1
dial the direct memory 1
29. M2
dial the direct memory 2
30. RESET
31. Microphone
32. Led indicator
(Purple)
- Steady On: Un-register.
- Slow Flash: registered but the base is not available. Searching or out
of range.
(Blue)
- Steady On: Seated in the base and fully charged.
- Steady on 3s and emit a long beep: Successfully registered.
- Double flashing: Off hook.
- Double flashing and on for 2s when just off hook: Off hook but the
signal is weak. Hear 3 rapid beeps in every 10s.
- Short flashing: idle mode and off the charger, the pendant is in Standby
mode.
- Long flashing: idle mode and off the charger. Continuously flashing:
ringing and can be heard.
(Red)
- In continue on the charger: The pendant charges.
- Long flashing: The battery is low in using and we hear a short double
beeps.
(Red/Bleu)
- Pairing mode after to hold and press the leys Vol(+) and Vol(-) during
10sec.
33. LOUDSPEAKER
34. CHARGER CONTACTS
MENU SETTING
The phone settings are always set in the same manner:
Press Menu/OK button to open the main menu. Then use the
▼▲buttons to select an entry and confirm it by pressing the Menu/OK
button.
The factory preset PIN code is 0000
Example: Set the language on the handset
, then select ▼▲HS settings, press MENU /
Press MENU / OK
, then select ▼▲language, press MENU / OK
OK
select ▼▲desired language and then press MENU / OK
confirm.
Handset
PHONEBOOK
►VIEW LIST
under an entry: ►ADD ►VIEW ►EDIT ►DELETE ►DELETE ALL ►PB
STATUS ►FASTDIAL
CALL LIST
►VIEW LIST
under an entry: ►ADD TO PB ►DELETE ►DELETE ALL ►DETAILS
►CATEGORY
)
BS SETTINGS
►BS RINGER ►RING VOLUME ►DELETE HS ►DIAL MODE ►FLASH
TIME ►CHANGE PIN
4
