Summary of Contents for Geemarc Liberty 200 Duo

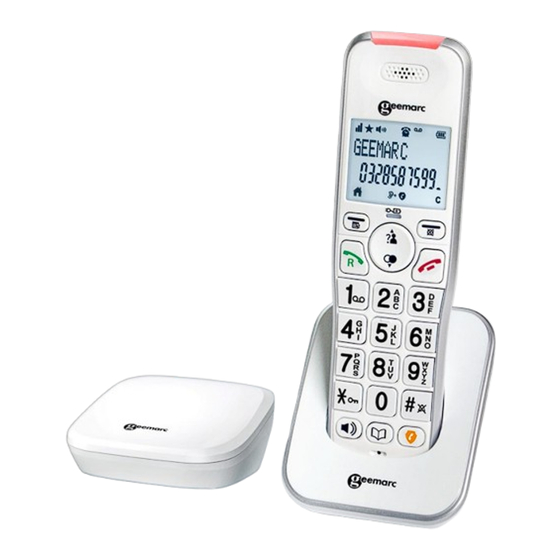

- Page 1 Amplified Cordless Telephone With its small separate DECT base connected to your internet box, you have the Liberty to place your telephone anywhere in the house without the need for a wall telephone socket.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS ........1 2. SET UP THE TELEPHONE ............2 Package Contents ..................2 Location ....................... 2 Installation ....................3 Connecting the Handset Battery ..............4 FIRST TIME USING YOUR HANDSET .......... 4 4. GET TO KNOW YOUR PHONE ............. 5 Overview of the Handset, Handset Base Charger &... - Page 3 Deleting contacts from the Phonebook ............15 Check the Phonebook Usage ..............15 CALL BLOCKER FUNCTION ..........15 Using the call block key ................15 Adding a block listed phone number ............. 15 Activating the black list function ..............15 Activating the function to block the private, international, payphone or unavailable numbers ...................
- Page 4 !! Please refer to our website: www.geemarc.com for an up-to-date user guide, as there may be important updates and changes you need to be aware of !!! CAUTION: Only use the batteries provided. There may be a risk of explosion if the wrong type of batteries are used for the handset.
-
Page 5: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS To reduce risk of electric shock, injury and fire when using this telephone equipment, always follow the basic safety precautions listed below: Read and understand all the instructions. Follow all warnings and instructions marked on the product. Unplug this product from the mains electrical wall socket before cleaning. -
Page 6: Set Up The Telephone
2. SET UP THE TELEPHONE 2.1 PACKAGE CONTENTS 1 DECT Base 1 Cordless Handset (receiver) 1 Handset Base Charger (Charging cradle for charging the cordless handset) 2 Power Adapters (1 for the DECT Base, 1 for the Charger) 1 telephone line cord 2 1.2V/400mA NiMh batteries 1 Quick-Start User Guide DECT Base Location... -
Page 7: Installation
2.3 Installation DECT Base Handset Base Charger (83x83x35mm) Connecting the telephone DECT Base: Connect one end of the supplied telephone line cord to the telephone line socket on the bottom of the base unit (TEL. LINE), and the other end of the line cord to either your (PSTN) telephone wall socket, a DSL filter, or to the Analogue Telephone Adapter (ATA) socket on your router. -
Page 8: Connecting The Handset Battery
Fitting the handset batteries Charge the batteries for at least 12 hours when charging them for the first time. Use only the power adapters and battery listed below. Power adapter information: output: 6V DC 0.45A, 2.7W. Vtech Telecommunications Limited. Model: A318-060045W-EU1 (EU), A318-060045W-UK1 (UK) Rechargeable Battery: Model: NI-MH AAA x 2. -
Page 9: Get To Know Your Phone
GET TO KNOW YOUR PHONE 4.1 Overview of the Handset & base DECT Base Handset Base Charger DECT Base (83x83x35mm) /HANDSET LOCATOR In idle mode, press to make all the handsets ring. Handset 1- EARPIECE 2. LCD DISPLAY 3. CHARGING INDICATOR LIGHT ( ON when the handset is charging. - Page 10 7. DOWN/REDIAL LIST ( In idle mode: Press to access the redial list. In main menu mode: Press to scroll down the menu items. In the phonebook / redial list / call log: Press to scroll down the list. In editing mode: Press to move the cursor one character to the right. During a call: Press to decrease the listening volume.
-
Page 11: Handset Lcd Display Icons And Symbols
14. CALL BLOCK When ringing (incoming call): Press this key then Menu/ OK to refuse the incoming call and add the number to the blacklist 15. PHONEBOOK ( In idle mode: Press to access the phonebook. Handset LCD Display Icons and Symbols The screen display gives you information on the current status of the telephone. -
Page 12: Handset Menu Structure
Steadily on to indicate a new Voice Message Waiting (VMWI) that has not yet been read. Symbol disappears when all the voice messages have been read. Steadily on when the keypad is locked. Steadily on when the ringer is switched off. Steadily on when there are new call(s) in call list. -
Page 13: Text And Digit Entry Table
Text and Digit Entry Table The following tables show you where each letter and punctuation character can be found. This will be helpful when storing a name in the phonebook or renaming your handset In editing mode, a cursor is displayed to indicate the current text entry position. It is positioned at the right of the last character entered. -
Page 14: Use Your Phone
5. USING YOUR PHONE Make an External Call Dial the phone number then press to call. Press CANCEL/MUTE delete an incorrect digit. Direct Dialing Press to get a dial tone then dial the phone number. Call from the Phonebook ▼▲ Press to access the phonebook then using the keys select the desired... -
Page 15: Adjust Earpiece And Speakerphone Volume
5.8 Adjust earpiece and speaker volume There are 5 volume levels to choose from (VOLUME 1 to VOLUME 5) for the earpiece and speaker volume. ▼▲ During a call: Use the keys to set the volume to the desired level. The current level is shown on the display. -
Page 16: Redial The Last Number
All the handsets registered to the base will produce the paging tone. “PAGING” will flash on the handset display. You can stop the paging by pressing Press the RIGHT SOFTKEY on any handset or /HANDSET LOCATOR on the DECT base to stop paging. NOTE: If there is an incoming call during paging, the phone will ring with the incoming call. -
Page 17: Call Transfer Or 3-Way Conference Functions
5.16 Call transfer or 3-way conference function 5.16.1 Make an Internal Call This feature allows you to make internal calls, transfer external calls and make conference calls. If the called handset is not answered within 60 seconds, it will stop ringing and the handset from which the internal call is made will return to standby mode. -
Page 18: Phonebook
6. PHONEBOOK Up to 60 names and numbers can be stored in the Liberty200’s phonebook for both regular and VIP contacts. The phone numbers saved in t he phonebook can have up to 24 digits. Contact names cannot have more than 12 characters. It is possible to have a specific ringtone for each phonebook entry. -
Page 19: Deleting Contacts From The Phonebook
6.5 Deleting contacts from the phonebooks and using the ▼▲ keys select “PHONEBOOK”, then press MENU/OK. Press MENU/OK Select “ALL CONTACTS” or “VIP”, then press MENU/OK to access the phonebook. Select the contact to delete then press MENU/OK Select “DELETE” or to delete all the contacts in the phonebook “DELETE ALL”. Press MENU/OK, the display reads “CONFIRM”. -
Page 20: Activating The Function To Block The Private, International, Payphone Or Unavailable Numbers
7.4 Activating the function to block the private, international, payphone, or unavailable numbers , “CALL BLOCKER” is shown on the display. Press MENU/OK Press MENU/OK then using the ▼/▲ keys select “SETTINGS”. Press MENU/OK then using the ▼/▲ keys select “CALL TYPE”. and choose between “WITHHELD”, “INTENAT’L”, “UNAVAILBLE”... -
Page 21: Caller Display(Network Dependent)
CALLER DISPLAY(NETWORK DEPENDENT) This feature is available if you have subscribed to the Caller Identification service from your network provider. Your phone’s call log can store the 20 last received calls with date and timestamp. The number is shown on the display when the phone is ringing. If the number matches with one of the entries in the phonebook, the caller’s name that is saved in the phonebook is displayed along with the number. -
Page 22: Delete An Entry Or The Entire Call List
8.5 Delete an Entry or the entire Call List to access the call log then ▼/▲to select the desired call list entry. Press Press MENU/OK then using the ▼/▲ keys select “DELETE” or “DELETE ALL”. the display reads “CONFIRM?”. Press MENU/OK, Press MENU/OK to confirm. -
Page 23: Phone Settings
9. PHONE SETTINGS The Liberty 200 has a selection of settings that allows you to personalize the way it works. 9.1 Alarm Settings You can use this phone to set an alarm. When an alarm is set, the symbol is shown on symbol and the words “ALARM ON”... -
Page 24: Set The Ringer Melody For Internal Calls
▼▲ Press MENU/OK then using the keys select the desired melody for your internal calls. NOTE: The melodies are played while you are browsing the melody list. Press MENU/OK to confirm. 9.5 Set the ringer volume You can set the ringer volume level. There are 6 volume levels to choose from, including VOLUME OFF which turns off the ringer. -
Page 25: Clock Setting
then using the ▼▲ keys select “HS SETTINGS”. Press MENU/OK Press MENU/OK then using the ▼▲ keys select “AUTO ANSWER”. Press MENU/OK then using the ▼▲ keys select “ON” or “OFF”. Press MENU/OK to confirm. 9.10 Clock Settings You will need to set the correct date and time so that you know when you received call list entries. -
Page 26: Handset Base Charger
9.12 HANDSET BASE CHARGER SETTINGS 9.12.1 De-register a Handset Enter the 4-digit system PIN (0000 by default) to de-register a handset from the handset base charger. “REGISTER” will appear on the handset display. NOTE: You cannot de-register the handset that you are currently using. then with the ▼/▲... -
Page 27: Registration
10. HANDSET REGISTRATION NOTE: The handset and the DECT Base are pre-paired. It is possible to add additional handsets. A maximum of 5 handsets can be paired to the DECT Base. The default PIN code to enter when pairing a handset is 0000 Pairing an additional handset On the DECT Base, press and hold the / HANDSET LOCATOR key to enter pairing... -
Page 28: Troubleshooting
12. TROUBLESHOOTING If you have difficulty with your phone, please try the suggestions listed below. Problem Solutions • My telephone does Make sure the handset batteries are installed and charged not work at all. correctly. • For optimum daily performance, return the handset to the Handset Base Charger after use. - Page 29 • There is The handset may be out of range. Move it closer to the interference DECT Base. during a • If you subscribe to high-speed Internet service (digital telephone subscriber line - DSL) through your telephone line, you must conversation.
-
Page 30: Technical Specifications
Input 100-240V 50/60Hz; & Charger output DC6V 0.45A, 2.7W adapter Handset 2X1,2V ; 400mAH rechargeable NiMh battery Manufacturer: Vtech (Dongguan) Telecommunications Limited. Vtech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong. Produit fabriqué en Chine pour Geemarc Telecom... -
Page 31: Guarantee
The guarantee does not cover accidents, negligence or breakages to any parts. The product must not be tampered with or taken apart by anyone who is not an authorized Geemarc representative. The Geemarc guarantee in no way limits your legal rights. - Page 32 UG Liberty200_UK_v1.0 Geemarc Telecom FRANCE 2 rue Galilée- Parc de l’étoile 59760 GRANDE-SYNTHE France help@geemarc.com E-Mail: Téléphone 01707 387602...
Need help?
Do you have a question about the Liberty 200 Duo and is the answer not in the manual?
Questions and answers
HOW DO YOU REDUCE THE RINGER VOLUME ON THE LIBERTY 200 DUO PHONE
To reduce the ringer volume on the Geemarc Liberty 200 Duo phone:
1. Press MENU/OK.
2. Use the ▼▲ keys to select “HS SETTINGS” and press MENU/OK.
3. Select “RING SETUP” and press MENU/OK.
4. Select “RING VOLUME” and press MENU/OK.
5. Use the ▼▲ keys to choose a lower volume level or select “OFF” to mute the ringer.
6. Press MENU/OK to confirm.
This answer is automatically generated
