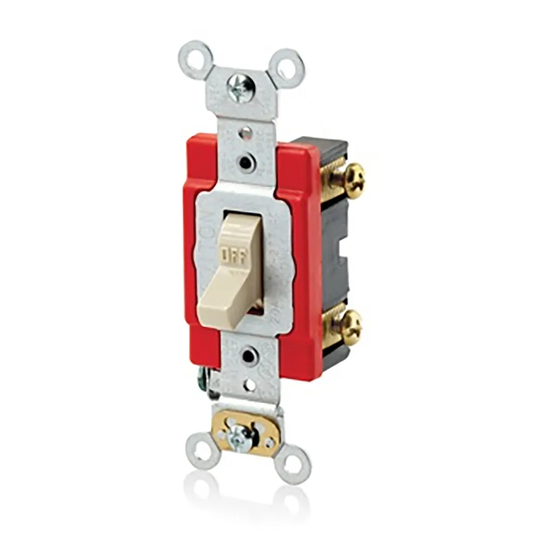

Leviton A1221 Installation Instructions

SINGLE POLE SWITCH
Cat. No. A1221 - Rated: 20A-120/277VAC
INTERRUPTOR UNIPOLAR
No. de Cat. A1221 - Capacidad: 20A-120/277VCA
WARNINGS AND CAUTIONS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL CODES AND REGULATIONS.
• IF YOU ARE UNSURE ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT AN ELECTRICIAN.
• USE THIS DEVICE WITH COPPER OR COPPER CLAD WIRE ONLY.
• TO AVOID DAMAGE TO THE PRODUCT, DO NOT USE DISINFECTING PRODUCTS, INCLUDING FOGGERS, SPRAYS OR OTHER TYPES OF
ATOMIZED CLEANING AGENTS.
• DO NOT SPRAY LIQUID ONTO THE PRODUCT.
• TO CLEAN USE A DAMP CLOTH WITH MILD SOAP
INSTALLATION

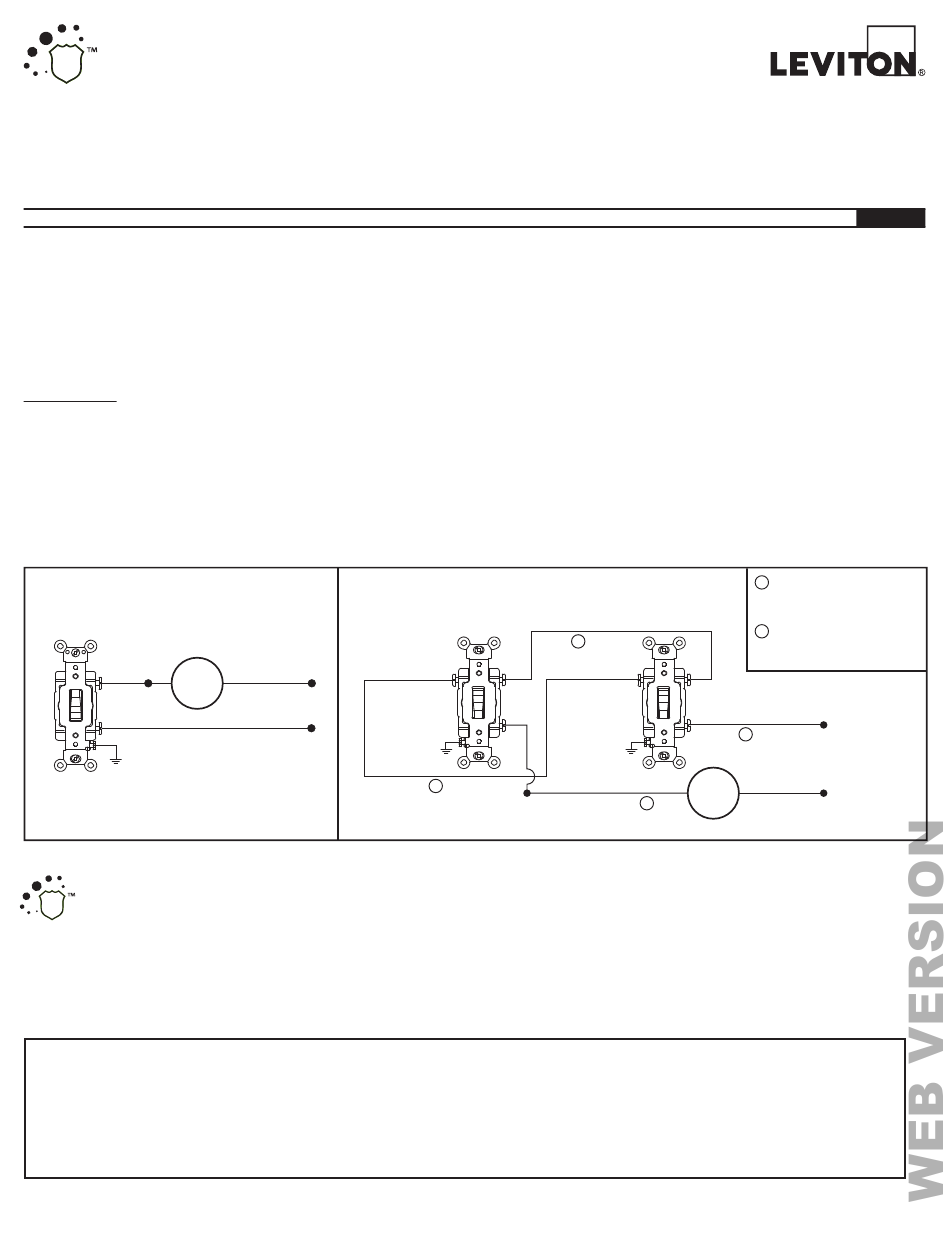

1. Connect wires per appropriate WIRING DIAGRAM, using one of the wiring methods below.
2a. To Side Wire: Remove insulation approx. 3/4" (1.9 cm). Loop wires clockwise ¾ turn around terminal screws. Tighten terminal screws over wire loops using the appropriate torque
value, which can be found at Leviton.com/torquevalue.
NOTE: Side wire accepts up to #12 AWG copper or copper-clad wire.
2b. To Back Wire: Remove insulation per strip gauge on device approx. 1/2" (1.3 cm). Insert straight wires under clamps next to appropriate terminal screws. Tighten terminal screws
using the appropriate torque value, which can be found at Leviton.com/torquevalue. NOTE: Back wire accepts up to #10AWG copper or copper-clad wire.
3. Mount device using long mounting screws. Attach wallplate (not included).
4. Restore power at circuit breaker or fuse. Installation is complete.
Single Pole Switch
Interruptor Unipolar
Black
Negro
Load
Charge
Carga
Ground
(Green Screw)
Tierra
(Tornillo Verde)
ANTIMICROBIAL TREATED
This product is treated with an antimicrobial material to provide an added layer of cleanliness and durability between normal cleanings. The active material used in this product is
designed to protect the device from discoloration, staining, deterioration and corrosion caused by mold, mildew, fungi and odor-causing bacteria.
Antimicrobial Tested: The antimicrobial material used in this product has been tested to the international standard JIS Z 2801:2000.
Care and use: Standard daily proper cleaning procedures must be maintained. DO NOT WAX, PAINT, LACQUER, VARNISH, COAT OR ENGRAVE THIS PRODUCT. Testing
illustrates that cleaning with the following chemicals have no negative effect on the antimicrobial additive: Oxivir (0.5% Hydrogen Peroxide) solution, Virex (n-Alkyl Dimethyl Benzyl
Ammonium Chloride), Dispatch (Sodium Hypochlorite stabilized bleach solution), Isopropyl Alcohol.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in
materials and workmanship under normal and proper use for ten years from the purchase date. Leviton's only obligation is to correct such defects by repair or
replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal of
this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered
in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties
of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration
of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to ten years. Leviton is not liable for incidental, indirect,
special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to
perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
ANTIMICROBIAL TREATED
TRATADO CON AGENTES ANTIMICROBIANOS
INSTALLATION INSTRUCTIONS
Neutral (White)
Neutro (Blanco)
Ground
(Green Screw)
Line Hot (Black)
(Tornillo Verde)
Linea Fase (Negro)
LIMITED 10 YEAR WARRANTY AND EXCLUSIONS
For Technical Assistance Call: 1-800-824-3005 (USA Only) www.leviton.com
Cat. No. A1223 - Rated: 20A-120/277VAC
No. de Cat. A1223 - Capacidad: 20A-120/277VCA
3-Way Switch
Interruptor de 3 Vías
2
Ground
(Green Screw)
Tierra
(Tornillo Verde)
2
Black/Negro
3-WAY SWITCH
INTERRUPTOR DE 3 VIAS
1
Common Terminal (Black screw)
Terminal Común (Tornillo Negro)
3-Way Switch
Interruptor de 3 Vías
2
Travelers (Brass screw)
Viajeros (Tornillo Laton)
Line Hot (Black)
Linea Fase (Negro)
Tierra
1
Load
Charge
Carga
1 Neutral (White)
Neutro (Blanco)
