Leviton VSHUB Installation Instructions

DI-000-VSHUB-00A
Camera Hub
59-25 Little Neck Parkway.
Little Neck, N.Y. 11362-2591, USA
Tech Support: 800-824-3005
www.leviton.com
Installation Instructions
DESCRIPTION
The Camera Hub will distribute video from 4 cameras to a TV monitor, multiplexer, quad or Leviton IP quad by simply patching an RCA cable to the device.
The Leviton UTP camera system will transmit video and power over a single UTP (Cat 5, 5e, or 6) cable. The Camera Hub supplies DC power to the
cameras, and routes video signals from the cameras to RCA connectors to adapt to most video distribution systems.
PACKAGE CONTENTS
Camera Hub Plastic Bracket
INSTALLATION
• Install in the single plastic bracket (Cat No. 47612-SBK) supplied, or use a Leviton expansion bracket (Cat No. 47612-EBK-sold separately) and mount
the Camera Hub onto the bracket in an open slot.
• Connect a Cat 5e patch cord between the Camera Hub and the Voice and Data board.
• Run power to the board using one of the power supplies listed below.
CONNECTING UTP CAMERA CABLE TO THE
CAMERA HUB
:
• Terminate your UTP cable in the SMC to an open port
on your Leviton Voice and Data Module. (Cat No.
47605-C5B-sold separately)
• Connect a UTP patch cable from the voice and data
board to one of the 4 ports on the Camera Hub.
POWERING THE UNIT
If your camera UTP cable is 100 Meters (328ft) or less
the Camera Hub located inside your Structured Media™
Center will power your camera.
• Leviton Compatible Power Supplies:
Note: Each Outdoor Camera in no light conditions draws
about 220 mA from the Camera Hub. Each Indoor
Camera draws about 110 mA from the Camera Hub.
Make sure the sum of the currents from all devices
powered by the power supply in the SMC does not
exceed the maximum output of that power supply.
• 47605-PSA (Maximum output: 12VDC at 3000 mA)
• 47605-PSB (Maximum output: 12VDC at 750 mA)
• 48212-DC (Maximum output: 12VDC at 1500 mA)
Note: The Camera Hub board (VSHUB) regulates and
raises the voltage of the 12VDC input to 15VDC
before sending it over the Cat 5e to the camera.
Three pairs of Cat 5e cable provide power to the camera to reduce the resistance
loss in the cable. A regulator circuit at the camera reduces the voltage back to
12VDC to power the camera engine.
• One pair of the Cat 5e is a balanced video signal from the camera to the SMC
Camera Hub (VSHUB). The remaining pairs are for power to the camera.

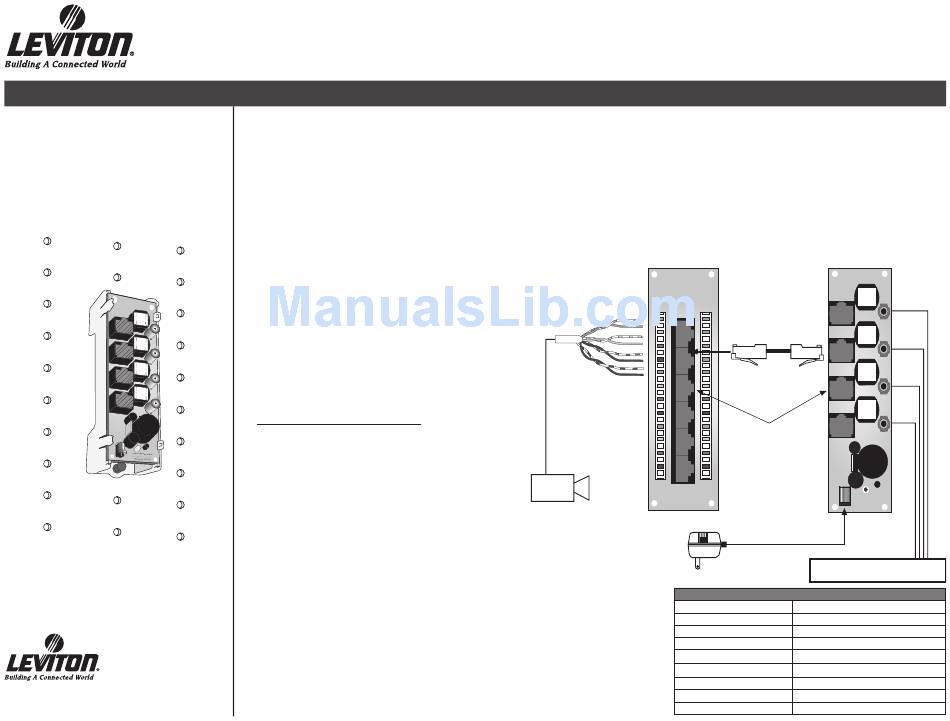

4 RCA Video Cables
Voice and Data
Module
47605-C5
Indoor Camera or
Outdoor Camera
Power Supply
Camera Hub
Cat 5e
Patch Cord
Note: All UTP Terminations
based on T 568 A
Power Jack
Center Conductor is
+12 VDC
Top Modulator, Sequencer,
IP Quad or direct to TV monitor
Signal Connections ( T568A )
Wire Color Signal
Power
White/Green
Green Ground
White/Orange
Video Signal
Blue Ground
White/Blue Power
Orange Video Signal Ground (-)
White/Brown Power
Brown Ground
VSHUB
Composite RCA
cables to device
