WARNINGS:
• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE, DO NOT install to control a
receptacle, or a load in excess of the specified rating.
• DO NOT use to control lighting if it is the only light source in the area.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
Features
• Easy operation with four preset buttons and one "OFF" button.
• Simple press and hold override function for 24-hour override.
• For Single-Pole wiring only.
• With Zero Cross turn-ON technology that extends the life of the switching
relays (turns ON at the minimum voltage).
• Color change kits are available in white, light almond, ivory, black, brown, and
gray (DTKIT-00x).
• Available with six countdown timer options (15, 30, 60 minutes, and 2, 4, 12 hours).
• Available in a 20A larger load, multi-way, or multi-timer (Cat. No. DT2xx).
You Will Need:
• Slotted/Phillips screwdriver
• Electrical tape
• Cutters
• Pliers
Installation
WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn OFF power at circuit
breaker or fuse and test that the power is OFF before wiring!

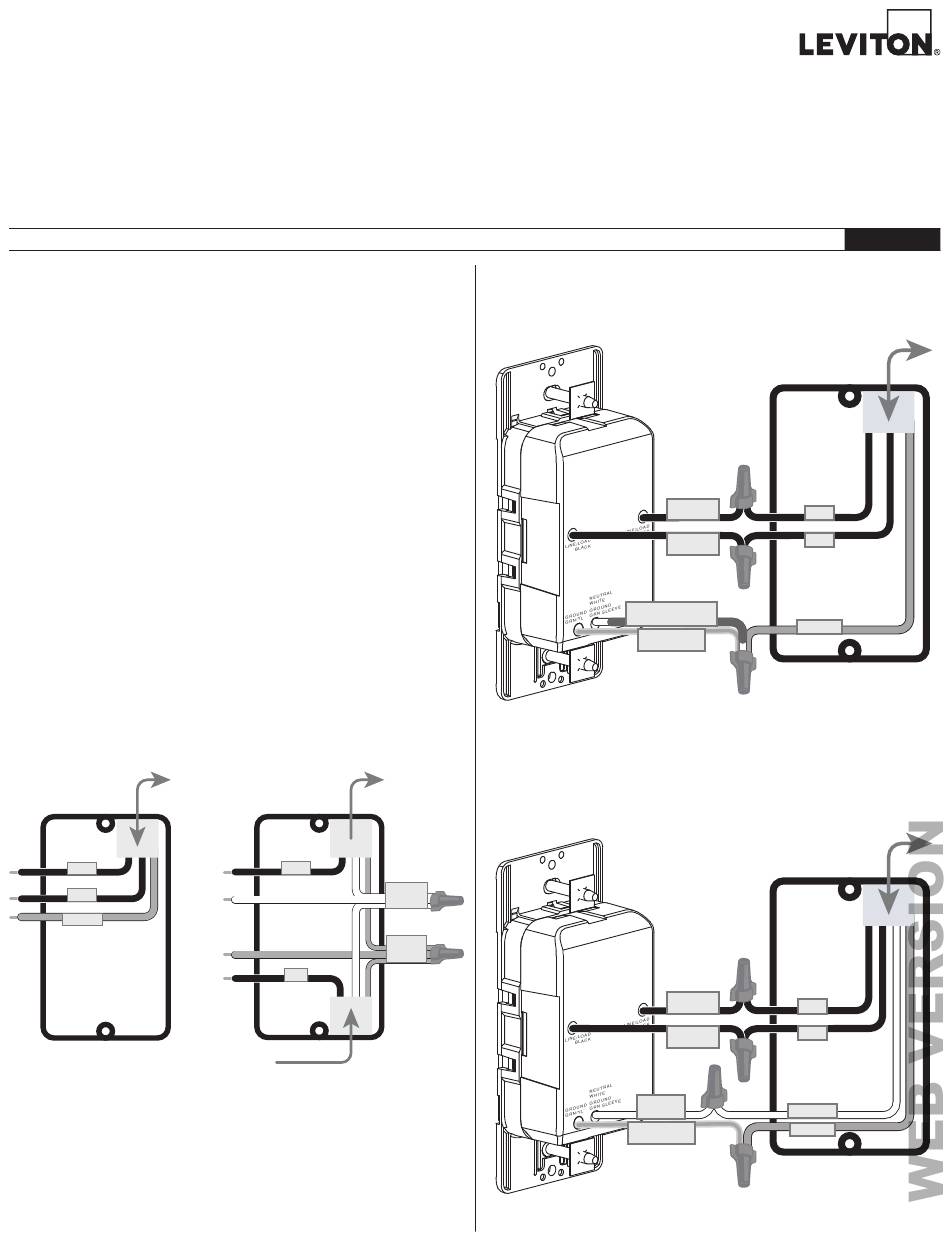

1. Identify your wires (most common shown).
NOTE: A Neutral wire (if present) or a Ground wire is required for
operation. If the wiring in the wallbox does not resemble this configuration,
consult an electrician.
No Neutral Wire
To and From Load
LOAD
LINE
GROUND

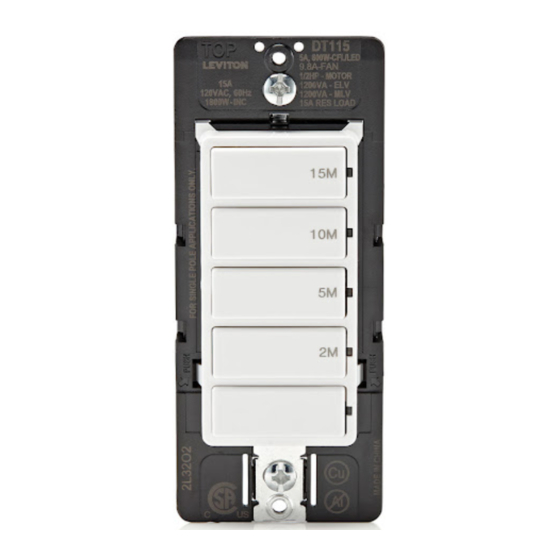

Electronic Countdown Timer Switch (Single Pole)
Cat. Nos. DT115, DT130, DT160, DT102, DT104, DT112 Lighted
Ratings: 15 A Resistive, 1,800 W Incandescent/Halogen, 600 W LED/CFL,
1,200 VA ELV/MLV/Fluorescent, 1/2 HP or 9.8 A Motor/Fan, 120 VAC, 60 Hz
INSTALLATION INSTRUCTIONS
With Neutral Wire
To Load
LOAD
NEUTRAL
GROUND
LINE
From
Branch Circuit
CAUTIONS:
• DO NOT use disinfecting products, including foggers, sprays or other types of atomized
cleaning agents.
• DO NOT spray liquid onto the product.
• To clean, use a damp cloth with mild soap.
• No user serviceable components. DO NOT attempt to service or repair.
• Use this device WITH COPPER OR COPPER-CLAD WIRE ONLY.
2a. Wire device (when Neutral is NOT present).
Work on one connection at a time, and connect wires as shown.
NOTE: This device is designed so that the line and load wires can be
wired interchangeably.
GROUND
(Green sleeved wire)
GROUND
(Green/Yellow)
2b. Wire device (when Neutral is present).
• Remove the green sleeve from the white wire.
• Work on one connection at a time, and connect the wires as shown.
NOTE: This device is designed so that the line and load wires can be
wired interchangeably.
NEUTRAL
(White)
GROUND
(Green/Yellow)
PK-A3460-10-00-2A
To and From
To and From
Light/Load
Light/Load
LINE/LOAD
(Black)
LINE
LINE/LOAD
LOAD
(Black)
GROUND
To and From
To and From
Light/Load
Light/Load
LINE/LOAD
(Black)
LINE
LINE/LOAD
LOAD
(Black)
NEUTRAL
GROUND
ENGLISH
