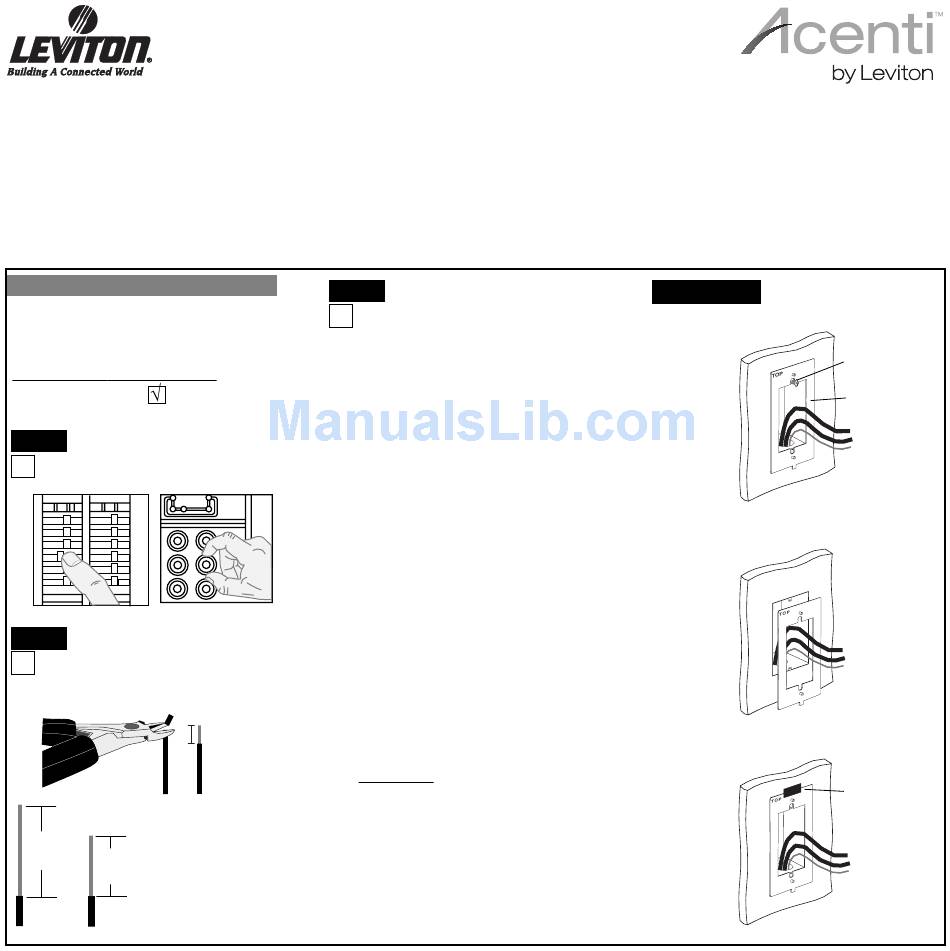

Leviton Acenti AC201-1L Installation Instructions

DI-000-AC201-00C
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes
and regulations.
• If you are unsure about any part of these instructions, consult a qualified
electrician.

Tools needed to install your Switch:

Slotted/Phillips Screwdriver
Pliers
Cutters

INSTALLING YOUR SWITCH

NOTE: Use check boxes when Steps are
completed.
WARNING:
TO AVOID FIRE, SHOCK,
Step 1
OR DEATH; TURN OFF POWER at
circuit breaker or fuse and test that power
is off before wiring!
OFF ON
OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON

Preparing wires:

Step 2
This switch can be wired using side
wire terminal screws or through back
wire openings. Choose appropriate
wire stripping specifications accordingly.
Cut
(if necessary)
• Make sure that the ends
3/4"
of the wires from the
(1.9 cm)
1/2"
wall box are straight
Side Wire
(1.3 cm)
(cut if necessary) .
Back Wire
• Remove insulation from
each wire in the wall
box as shown.
Strip Gage (measure bare wire here)
INSTALLATION INSTRUCTIONS
Step 3
Important Notice for Installer
To achieve proper aesthetic installation of the
Acenti products, the wall surface surrounding
the wall box opening must be fairly flat and free
of irregularities. The wall box must be level and
recessed or flush to the wall surface. The Acenti
installation system allows for adjustments that
will correct minor flaws that may be present in
the installation area.
This device must be installed with the Acenti™
Alignment Plate. The Alignment Plate is
packaged with the Acenti™ Wallplate, which is
sold separately from this device.
The Alignment Plate will function properly only if
it is mounted to a flat wall surface as described
above.
• Leviton recommends to temporarily position
the Alignment Plate prior to wiring the device.
If the wall box wires extend at least 6 inches
out of the wall box, it is also possible to install
the Alignment Plate after the device has been
wired (refer to Wallplate instruction sheet).
• The Alignment Plate must be installed with
Strip 1/2" (Back wire)
the tab towards the bottom.
Strip 3/4" (Side wire)
• Leviton recommends the following 3 methods
to temporarily hold the Alignment Plate –
use of device mounting screw, use of wall box
wires, or use of electrical tape (refer to the
following figures):
Single Pole Switch
AC201-1L
20A-120V AC
AC201-7L
20A-277V AC
WARNINGS AND CAUTIONS:
• Disconnect power at circuit breaker or fuse when servicing, installing or
removing device.
• Use this device only with copper or copper clad wire. With aluminum wire use
only devices marked CO/ALR or CU/AL.

Installing your Alignment Plate:

Step 3 cont'd
Alignment Plate Held By Mounting Screw
Alignment Plate Held By Wires
Alignment Plate Held By Tape
Mounting
Screw
Alignment
Plate
Electrical
Tape
