Summary of Contents for NEFF K59 D Series

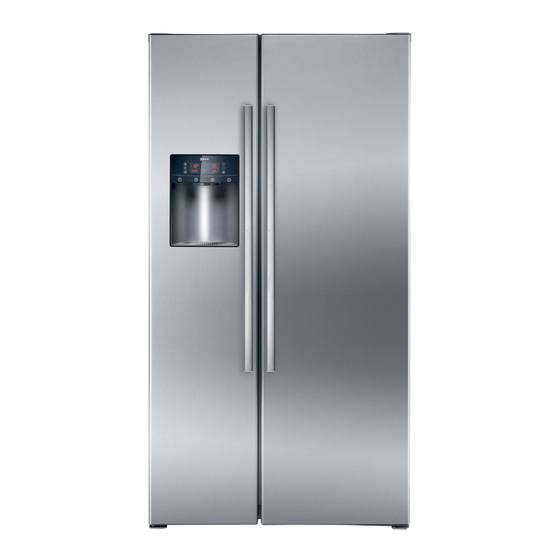

- Page 1 K59..D K59..N en Installation instructions and instructions for use...
-
Page 2: Table Of Contents
en Table of Contents e n I n s t a l l a t i o n i n s t r u c t i o n s a n d i n s t r u c t i o n s f o r u s e Safety and warning information ...... -
Page 3: Safety And Warning Information
Important information when using the Safety and warning appliance information Never use electrical appliances inside the ■ appliance (e.g. heater, electric ice maker, Before you switch ON the appliance etc.). Explosion hazard! Please read the operating and installation Never defrost or clean the appliance with ■... -
Page 4: Information Concerning Disposal
Never put frozen food straight from the ■ Information concerning freezer compartment into your mouth. Risk of low-temperature burns! disposal Avoid prolonged touching of frozen food, ■ ice or the evaporator pipes, etc. * Disposal of packaging Risk of low-temperature burns! The packaging protects your appliance from damage during transit. -
Page 5: Installing The Appliance
Observe ambient temperature Installing the appliance and ventilation Ambient temperature Transporting The climate class can be found on the rating plate. The appliance is heavy. Secure in position during The climate class indicates within which ambient transportation and installation. temperatures the appliance can be operated. The rating plate is located in the refrigerator Due to the weight/dimensions of the appliance and to compartment at the bottom right side. -
Page 6: Installation Dimensions
Installation dimensions Door opening angle 1031 1159 160° 160° 90° 90°... -
Page 7: Aligning The Appliance
Water connection Aligning the appliance The water may be connected only by a competent fitter according to the local regulations of the appropriate To ensure that the appliance functions correctly, it must water supply company. be set level with a spirit level. If the appliance is not level, water may flow out Caution of the ice maker, ice cubes may be irregular... -
Page 8: Removing Appliance Doors And Handles
Removing appliance doors and handles If the appliance will not fit through the house door, the appliance doors and handles can be unscrewed. Caution Only customer service may unscrew the appliance doors. -
Page 9: Getting To Know Your Appliance
Getting to know your appliance These operating instructions refer to several models. The diagrams may differ. alarm super alar m supe r filter chang e °C °C timer °F quick ic e clock °C se c IWD of f time lock sabbat h vitaresh... - Page 10 Control and display panel The display panel and display panel on the door consists of a touch pad. Touch the keypad to actuate the corresponding function. alarm super alarm super filter change °C °C timer °F °F vacation quick ice FreshprotectBox clock °C...
-
Page 11: Switching The Appliance On
Refrigerator compartment Switching the appliance on The refrigerator compartment can be set from +2 °C to +8 °C. Switch on the appliance with the ON/OFF button. A warning signal sounds. Press the ”alarm/lock” button. The warning signal switches off. Display “alarm” goes out when the appliance has reached the set temperature. - Page 12 [IWD off] Switching off [timer] To deactivate the function, simultaenously press You can use this function to switch off the ice and water the setting buttons + and - for 3 seconds. dispenser. Caution [eco] Before switching off the ice maker, it is most ■...
-
Page 13: Sabbatical Mode
Freezer compartment Sabbatical mode “AL” flashes on the freezer compartment display panel and “alarm” is displayed. Sabbatical mode settings: Accoustic signal is switched off. ■ Super cooling or super freezing is then ended ■ (if activated). The light is switched off. ■... -
Page 14: Freezer Compartment
Freezer compartment Freezing fresh food Freeze fresh and undamaged food only. Use the freezer compartment To retain the best possible nutritional value, flavour and To store deep-frozen food. colour, vegetables should be blanched before freezing. ■ Aubergines, peppers, zucchini and asparagus do not To make ice cubes. -
Page 15: Super Freezing
Super freezing Thawing frozen food Food should be frozen solid as quickly as possible Depending on the type and application, select one in order to retain vitamins, nutritional value, appearance of the following options: and flavour. at room temperature ■ Several hours before placing fresh food in the freezer in the refrigerator ■... -
Page 16: Super Cooling
Super cooling “Cool-fresh” container Super cooling sets the refrigerator temperature (not all models) to the coldest temperature setting for approx. 6 hours. The temperature in the “cool-fresh” container is about Then the appliance automatically switches 0 °C. The low temperature and the optimum moisture to the temperature set prior to super cooling mode. -
Page 17: Ice And Water Dispenser
Observing drinking water quality Ice and water dispenser All materials used in the drinks dispenser are odourless and tasteless. The following can be dispensed as required: If the water has an aftertaste, this may be caused by: cooled water, ■ Mineral and chlorine content of the drinking water. -
Page 18: Water Filter
Air trapped in the system may cause water Dispensing ice ■ to escape and the filter cartridge to be ejected. Caution when removing. The filter must be changed at least every 6 months. ■ Important information concerning the water filter After use, the water system is subject to low ■... -
Page 19: Specification And Performance Data Sheet
The concentration of the indicated substances which Specification and performance are dissolved in water and penetrate the system was reduced to a value below or equal to the permitted limit data sheet value in accordance with ANSI/NSF 42 and 53 for water discharged out of the appliance. -
Page 20: Bar Compartment
Bar compartment Features of the freezer compartment (not all models) To remove drinks from the refrigerator compartment, (not all models) it is not necessary to open the door. Freezer calendar Loading the bar compartment To prevent the quality of the frozen food from deteriorating, do not exceed the storage Taking out drinks duration.The storage period depends on the type... -
Page 21: Interior Fittings Of Refrigerator Compartment
Interior fittings of refrigerator Variable interior design compartment You can vary the shelves inside the appliance and the door shelves as required. Vegetable container with humidity filter Pull shelf forwards, lower and swing out to the side. ■ The vegetable container is covered by a special filter which optimises retention of the air humidity in the storage compartment. -
Page 22: Switching Off And Disconnecting The Appliance
Special features Switching off and (not all models) disconnecting the appliance Adjustable glass shelf “easy Lift” Switching the appliance off Press the On/Off button. Pull out the mains plug. Disconnecting the appliance If you do not use the appliance for a prolonged period: 1. -
Page 23: Cleaning The Appliance
To insert the container, place on the telescopic rails Cleaning the appliance and push into the appliance. Attach the container by pressing it down. Warning Removing the humidity filter Never clean the appliance with a steam cleaner! Take out the vegetable container first. Then, pull out the humidity filter. -
Page 24: Light
Cleaning the water collection tray Light Spilled water collects in the water collecting tray. To empty and clean, remove the filter. Wipe out water (not all models) collecting tray with a sponge or absorbent cloth. Light (LED) Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only. -
Page 25: Tips For Saving Energy
Tips for saving energy Operating noises Install the appliance in a dry, well ventilated room! ■ Quite normal noises The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker). Droning If required, use an insulating plate. Motors are running (e.g. -
Page 26: Eliminating Minor Faults Yourself
Eliminating minor faults yourself Before you call customer service: Please check whether you can eliminate the fault yourself based on the following information. Run an appliance self-test (see chapter “Appliance self-test”). Customer service will charge you for advice even if the appliance is still under guarantee! Fault Possible cause Remedial action... - Page 27 Water and ice dispenser Fault Possible cause Remedial action Despite prolonged operating time, Tap turned off. Turn on tap. ice cubes are not being dispensed. Water supply is interrupted. Water pressure Inform plumber. too low. Ice and water dispenser is switched off. “IWD Switch on ice and water dispenser (see “Switching on and off off”...
-
Page 28: Appliance Self-Test
Appliance self-test Customer service Your appliance features an automatic self-test program Your local customer service can be found which shows you sources of faults which in the telephone directory or in the customer-service may be repaired by customer service only. index. - Page 29 *8001029298* Register your product online 8001029298 (9511)
