- Page 1 Compact manual G 1200 Thermocouple Quick Response Thermometer for exchangeable Type K sensors...
-
Page 2: Table Of Contents
Table of contents Table of contents About this documentation ............4 Foreword ..................4 Legal notices .................. 4 Further information ................. 4 Safety ..................5 Explanation of safety symbols ............5 Foreseeable misuse ............... 5 Safety instructions ................6 Intended use ................... 6 Qualified personnel ................. - Page 3 Table of contents 6.2.1 Battery indicator................12 6.2.2 Changing battery ................12 Error and system messages ..........14 Technical data ............... 15 Disposal ................. 16 Service ................... 17 10.1 Manufacturer ................17 10.2 Calibration and adjustment service ..........17 10.3 Accessories ..................
-
Page 4: About This Documentation
1 | About this documentation G 1200 About this documentation Foreword Read this document carefully and familiarise yourself with the operation of the device before you use it. Keep this document ready to hand and in the immediate vicinity of the device so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Safety
G 1200 Safety | 2 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 6: Safety Instructions
2 | Safety G 1200 Safety instructions CAUTION Risk of injury at the temperature sensor! Devices with insertion probes entail the risk of stab injuries due to the pointed probe design. There is a risk of burns when measuring in high (and very low) temperatures. Use gloves if necessary. -
Page 7: The Device At A Glance
G 1200 The device at a glance | 3 The device at a glance Top view LCD Display Front view Display elements Display Battery indicator Evaluation of the battery status Unit display Display of units or min/max/hold Main display Measurement of the current temperature or value for min/max/hold Auxiliary display Measurement of the current temperature in... -
Page 8: Operating Elements
3 | The device at a glance G 1200 Operating elements On / Off button Press briefly Switch on the device Activate / deactivate lighting Long press Switch off the device Reject changes in a menu Up / Down button Display of the min/max value Press briefly Change value of the selected parameter... -
Page 9: Operation
G 1200 Operation | 4 Operation Opening the configuration menu Press the Function button for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function button. Parameter Values Meaning POFF Shut-off time No automatic shut-off 0:15, 0:30, 1:00, Automatic shut-off after a selected time in hours:minutes, during which no buttons have been... -
Page 10: Adjustment Of The Measuring Input
4 | Operation G 1200 Adjustment of the measuring input The temperature input can be adjusted with the zero point correction and the gradient correction. If an adjustment is made, you change the pre-adjusted factory settings. This is signalled with the display text T.OF or T.SL when switching on. Switch the device off. -
Page 11: Measurement Basics
G 1200 Measurement Basics | 5 Measurement Basics Sensor/device accuracy The device can be equipped with different interchangeable sensors. The temperature sensors are divided into the following classes according to EN 60584-2. class deviation temperature range -40 … 1000 °C ±1.5 °C or ±0.4 % of measured value * -40 …... -
Page 12: Operation And Maintenance
6 | Operation and maintenance G 1200 Operation and maintenance Operating and maintenance notices NOTE The device and temperature probe must be handled with care and used in accordance with the technical data. Do not throw or strike. NOTE Plugs and sockets must be protected from soiling. NOTE If the not used for an extended period of time, the batteries must be removed. - Page 13 G 1200 Operation and maintenance | 6 CAUTION Damage! If the batteries have different charge levels, leaks and thus damage to the device can occur. – Only use high-quality and suitable alkaline batteries! – Do not use different types of batteries! –...
-
Page 14: Error And System Messages
7 | Error and system messages G 1200 Error and system messages Display Meaning Possible causes Remedy ---- No suitable meas- Incorrect measuring Connect a suitable meas- uring probe con- probe uring probe nected Measuring probe or Measurement leaves the Measurement far device defect permissible range... -
Page 15: Technical Data
G 1200 Technical data | 8 Technical data Sensor connection Connection socket for miniature flat plug Supported sensor type Thermocouple type K (NiCr-Ni) -65.0 … +1200.0 °C (-85.0 ... +2192 °F) Measuring range Accuracy Note: The system accuracy depends on the accuracy of the used temperature sensor! (at nominal temperature) Device... -
Page 16: Disposal
9 | Disposal G 1200 Battery indicator 4-stage battery status indicator, Replacement indicator for depleted batteries: "BAT" Auto-power-OFF The device switches off automatically if this is activated function Directives and stand- The devices conform to the following Directives of the Coun- ards cil for the harmonisation of legal regulations of the Member States:... -
Page 17: Service
Service 10.1 Manufacturer If you have any questions, please do not hesitate to contact us: Contact GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Email: info@greisinger.de | www.greisinger.de WEEE reg. no. DE 93889386 10.2 Calibration and adjustment service The purpose of the calibration is to verify the precision of the measuring device by comparing it with a traceable reference. -
Page 18: Accessories
10 | Service G 1200 10.3 Accessories Spare parts: GB-AA-2 art. no. 479249 Spare batteries AA (2 pcs.) Suitable sensors: GTE 130 OK art. no. 601483 Insertion probe without cable, Ø1,5 mm GF 1TK-T3 art. no. 609695 Compact immersion probe with silicone handle, Ø3 mm GF 1TK-E3 art.
Need help?
Do you have a question about the Greisinger G 1200 and is the answer not in the manual?
Questions and answers

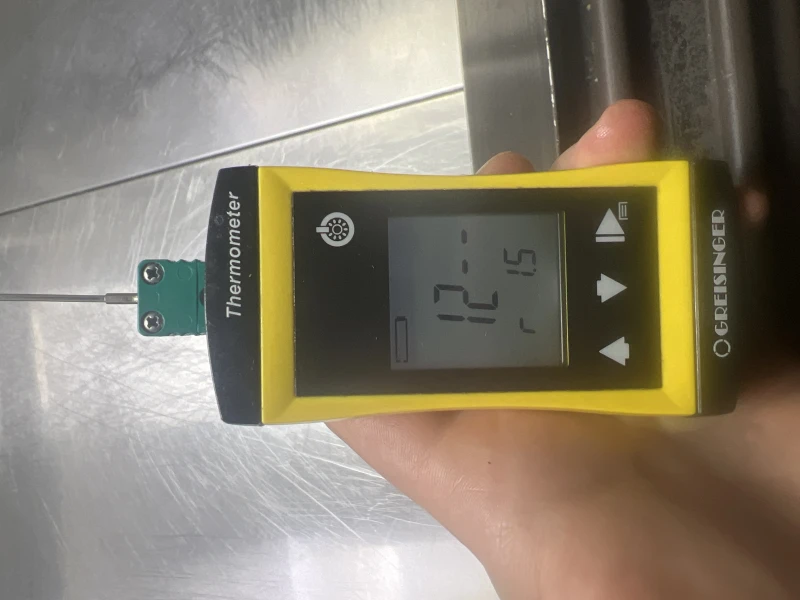

How can I fix my thermometer? I used it today with no problem but from one to the next second it turn off so I changed the battery, but now this is displaced and I can’t turn it of. What can I do?
