H56.0.02.6C-01
As of version 1. 0
Please carefully read these instructions
before use!!
Please consider the safety instructions!
Please keep for future reference!
GHM GROUP - Greisinger
GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY
Tel.: +49 9402 9383-0 |
Quick-Response Thermometer
info@greisinger.de
| www.greisinger.de
Operating manual

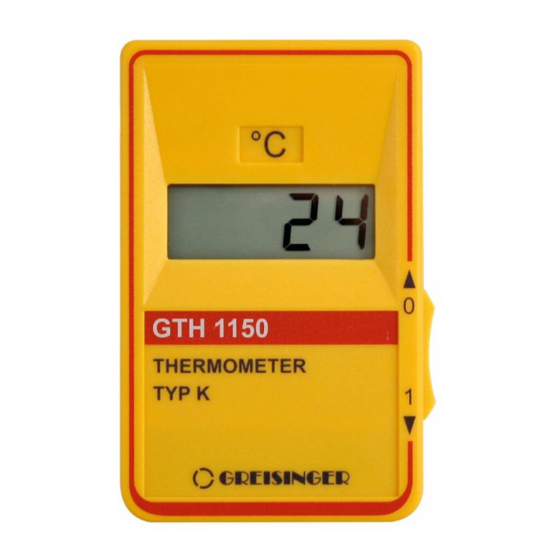

GTH 1150
WEEE-Reg.-Nr. DE 93889386
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GHM GREISINGER GTH 1150
Summary of Contents for GHM GREISINGER GTH 1150
- Page 1 Please consider the safety instructions! WEEE-Reg.-Nr. DE 93889386 Please keep for future reference! GHM GROUP - Greisinger GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Tel.: +49 9402 9383-0 | info@greisinger.de | www.greisinger.de...
-
Page 2: Table Of Contents
H56.0.02.6C-01 Operating Manual GTH 1150 Page 2 von 10 _____________________________________________________ _____________________________________________________________________________ Contents SAFETY ..................................3 ..............................3 ENERAL NOTE ............................... 3 NTENDED ..............................3 UALIFIED STAFF ..........................3 AFETY SIGNS AND SYMBOLS ........................4 EASONABLY FORESEEABLE MISUSE .............................. 4 AFETY GUIDELINES PRODUCT DESCRIPTION ............................ -
Page 3: Safety
H56.0.02.6C-01 Operating Manual GTH 1150 Page 3 von 10 _____________________________________________________ _____________________________________________________________________________ 1 Safety 1.1 General note Read through this document attentively and make yourself familiar to the operation of the device before you use it. Keep this document in a ready-to-hand way in order to be able to look up in the case of doubt. Mounting, start-up, operating, maintenance and removing from operation must be done by qualified, specially trained staff that have carefully read and understood this manual before starting any work. -
Page 4: Reasonably Foreseeable Misuse
H56.0.02.6C-01 Operating Manual GTH 1150 Page 4 von 10 _____________________________________________________ _____________________________________________________________________________ 1.5 Reasonably foreseeable misuse This device must not be used at potentially explosive areas! Do not use these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury or material damage. -
Page 5: Operating And Maintenance
H56.0.02.6C-01 Operating Manual GTH 1150 Page 5 von 10 _____________________________________________________ _____________________________________________________________________________ 2.2 Operating and Maintenance Battery operation: If the "BAT" symbol is displayed at the bottom left of the display, the battery is weak and should be replaced soon. However, the device will still operate for a certain length of time. If an additional "BAT"... -
Page 6: Adjustment
H56.0.02.6C-01 Operating Manual GTH 1150 Page 6 von 10 _____________________________________________________ _____________________________________________________________________________ Adjustment The device is calibrated and adjusted at the factory so that any standard probe offered by Greisinger can be plugged in without recalibration. If the value deviates excessively over time, we offer factory re-calibration. 4.1 Manual Adjustment Manual adjustment changes the factory settings, which can no longer be simply restored! If you want to adjust the device to the available probe, the probe must be plugged in first. -
Page 7: Limit Values
H56.0.02.6C-01 Operating Manual GTH 1150 Page 7 von 10 _____________________________________________________ _____________________________________________________________________________ 5.2.5 Limit values If this is disregarded, the probe can be destroyed! Thermocouples are suitable for detecting very large temperature ranges. However, the permissible limits of your probe must be observed when measuring high temperatures. See chapter 6 Type K-sensor. 6 Type K-sensor 6.1 Details about the sensors Application... -
Page 8: Gft 300
H56.0.02.6C-01 Operating Manual GTH 1150 Page 8 von 10 _____________________________________________________ _____________________________________________________________________________ 6.2.6 GFT 300 You will find more Type K sensors in our catalogue on page 24 to 27. 7 Replacing batteries The use of damaged or unsuitable batteries could lead to further heating, whereby the batteries can burst or in the worst case exploding. -
Page 9: Fault And System Messages
Measuring residuals at housing or sensor may be a risk for persons or environment Use an adequate transport package for reshipment, especially for fully functional devices. Please make sure that the device is protected in the package by enough packing materials. Add the completed reshipment form of the GHM website http://www.ghm-messtechnik.de/downloads/ghm-formulare.html. Disposal... -
Page 10: Specification
H56.0.02.6C-01 Operating Manual GTH 1150 Page 10 von 10 _____________________________________________________ _____________________________________________________________________________ 9 Specification 1 °C Resolution -50 … 1150 °C Measuring range ±0.2 % v.MW. ±0.2 % FS. Accuracy at nominal temperature For more detailed values please refer to chapter 5 Basics of the measurement Sensor Type K (NiCr-Ni), acc.
