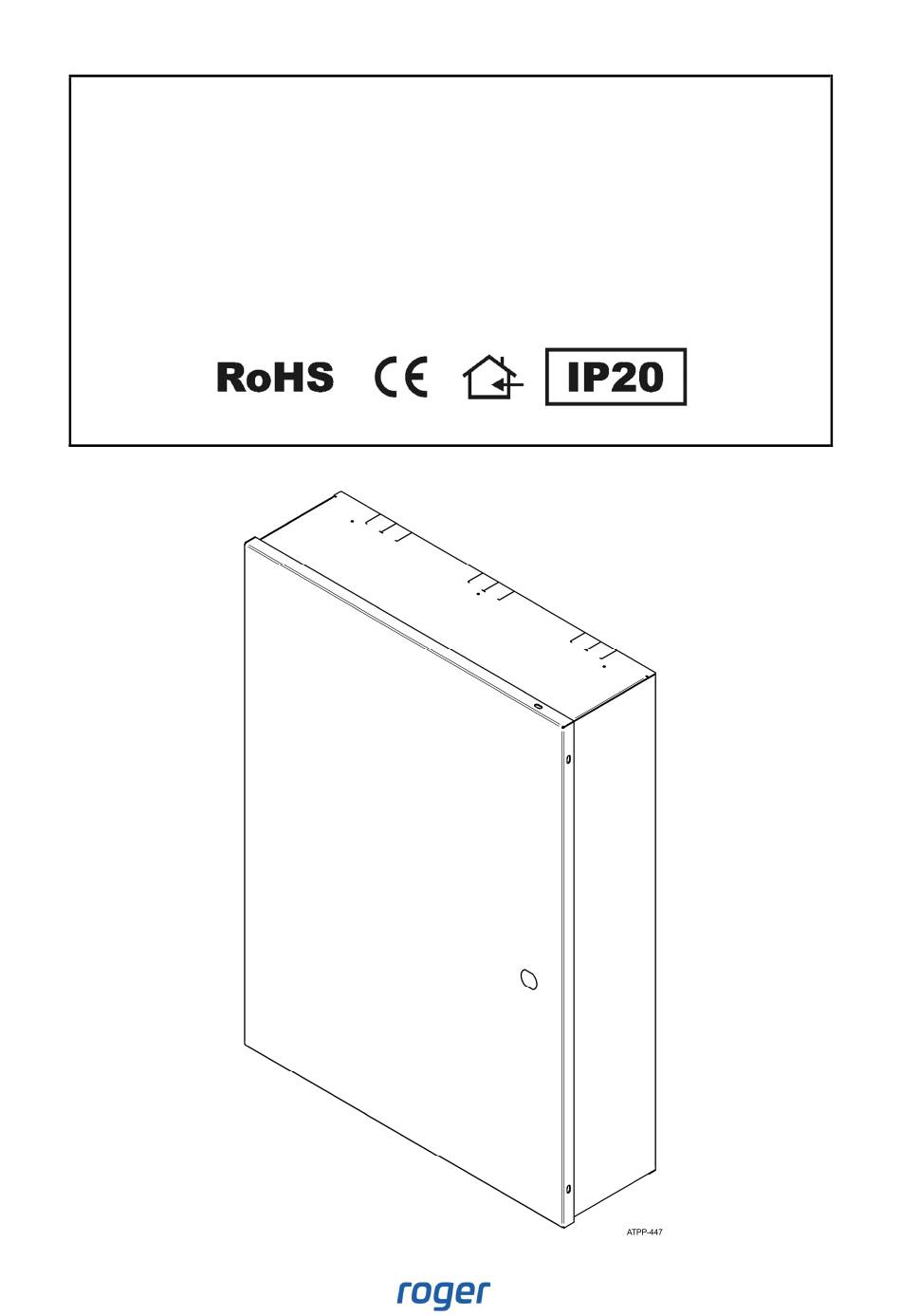

- Page 1 Roger Access Control System Metal Enclosure ME-43-S Operating Manual Product version: v1.0 Firmware version: – Document version: Rev. D...
- Page 2 13.8V/4A, tamper contact and main fuse switch. Access to the internal space of the enclosure is protected by a door fixed by screws. Optionally, the door can be equipped with a key lock. The ME-43-S is made of a metal sheet painted with an anthracite grey powder coating. 2. I NSTALLATION 1.
- Page 3 Operating manual ME-43-S .docx 2023-09-05 Caution The installation can be done by qualified person only and with all necessary certificates concerning connection and maintenance of 230VAC and low voltage networks. Caution It is forbidden to use the enclosure without properly assured and operational protective earthing.
- Page 4 Operating manual ME-43-S .docx 2023-09-05 Fig. 2 Internal view of ME-43-S enclosure Page 4 of 6...
- Page 5 Operating manual ME-43-S .docx 2023-09-05 Fig. 3 Cable fixing method Fig. 4 Forming a cable entry hole in the bottom or top wall of the enclosure 3. S PECIFICATION Parameter Value Rated Output Voltage 13,8VDC Rated Output Current Rated Power...
- Page 6 Weight of the equipment is specified in the document. Contact: Roger sp. z o. o. sp. k. 82-400 Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133...
