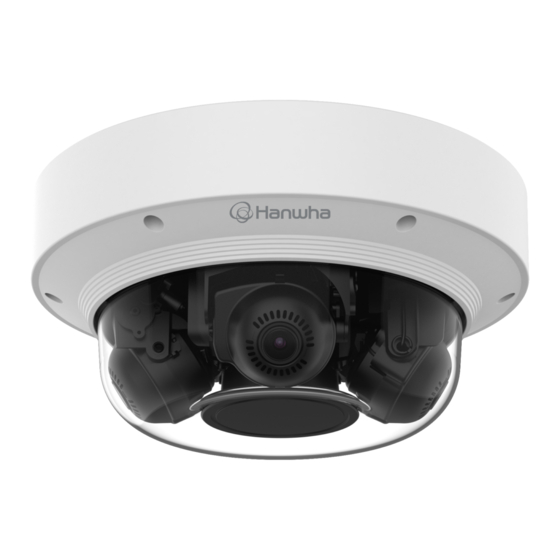

Hanwha Vision PNM-8082VT User Manual

Hide thumbs Also See for PNM-8082VT:
Table of Contents

Advertisement

Quick Links

Download this manual
NETWORK CAMERA
User Manual
PNM-8082VT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNM-8082VT and is the answer not in the manual?

Questions and answers

Related Manuals for Hanwha Vision PNM-8082VT

Summary of Contents for Hanwha Vision PNM-8082VT

  • Page 1 NETWORK CAMERA User Manual PNM-8082VT...
  • Page 2 Network Camera User Manual Copyright ©2020 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated from PoE(53 Vdc), 0.32 A. (PNM-8082VT) EXPLANATION OF GRAPHICAL SYMBOLS 16. This product is intended to be supplied by isolation power.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup What’s Included Optional Accessories for Installation At a Glance APPENDIX Troubleshooting INSTALLATION & CONNECTION Installation Powering and networking NETWORK CONNECTION AND...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher (As for each sales country, accessories are not the same.) ~ RAM : 8G or higher ~ Recommended browser: Chrome Appearance...

  • Page 7: Optional Accessories For Installation

    OPTIONAL ACCESSORIES FOR INSTALLATION AT A GLANCE You can purchase appropriate optional accessories available. Appearance Product type Wall mount Model Name SBP-300WMW1 Product type Hanging mount Ceiling mount Model Name SBP-276HMW SBP-300CMW Product type Corner mount Pole mount Model Name SBP-300KMW SBP-300PMW Item...
  • Page 8 overview Components Item Description Output port for test monitoring the video output. Use the test monitor cable to connect to a Test monitor out port mobile display and check the test video. The button restores all camera settings to the factory default. Press and hold for about 5 seconds to reboot the system.

  • Page 9: Installation & Connection

    installation & connection INSTALLATION 2. Loosen the fastening screw on the camera body. You don’t have to completely remove the screws. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 10 installation & connection Inserting a Micro SD card Removing a Micro SD card Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD 1. Remove the dome cover of the camera. card from the slot.
  • Page 11 Installation (mount plate) 1-3. Pull out network cable through the hole in the mount plate. [Directly installing on ceiling] 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. [Installing using pipe] 2-1. Attach the installation template and drill holes for screws and cables. 2-2.
  • Page 12 installation & connection 2-3. Place the pipe on the mount plate. [Attaching to the unbundled adapter] 2-4. Fix the mount plate using appropriate screws. Choose and purchase a necessary one of the following options (unbundled) that is suitable to the installation site or for your convenience.
  • Page 13 Installation (camera body and dome cover) 3. Connect the network cable jack to the PoE+ port of the camera. Refer to “Connecting waterproof network cable” on page 14. 1. Connect the safety wire. 4. Push the mounting clip until it clicks into place as shown in the figure. 2.
  • Page 14 installation & connection 6. Adjust the lens to the desired direction by referring to “Adjusting the monitoring direction for the Connecting waterproof network cable camera”. (Page 16) Use an appropriate cable bush for the network cable to be connected. If you tilt the lens, you may need to adjust the lens as this may block the screen. - Basic camera : Use the cable with a diameter of Ø5~6.5.
  • Page 15 4. Connect the network cable jack to the PoE+ port of the camera. Connecting the installation monitor Connect the test monitor out port of this product to the video input terminal of the monitor for installation. The wiring varies depending on your monitor type and peripheral devices; please refer to the user manual for each device. Please make sure the monitor and camera are turned off when connecting them.
  • Page 16 installation & connection How to set up channels to monitor for installation Adjusting the monitoring direction for the camera The camera body has a channel DIP switch, as shown in the figure. You can change the channel of the camera using the channel DIP switches. Tilt Moving the camera module (Pan) Lens Rotation...

  • Page 17: Powering And Networking

    POWERING AND NETWORKING Connect the PoE+ device with the PoE+ port of the camera. Connect and use a PoE+ -enabled router. Use a PoE+ device that complies with the IEEE 802.3at standard. If you connect using an PoE+ -enabled router, you don't need a separate power supply cable to power it on. Network Cable Specification Item Contents...

  • Page 18: Network Connection And Setup

    network connection and setup network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 19: Using Device Manager

    If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).

  • Page 20: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. PNM-8082VT - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 21: Port Range Forward (Port Mapping) Setup

    PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen.

  • Page 22: Connecting To The Camera From A Shared Local Pc

    network connection and setup CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.

  • Page 23: Connecting To The Camera

    web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1.

  • Page 24: Password Setting

    web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 digits, you must use at least 3 of system over the network.

  • Page 25: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION ~ Check whether two or more cameras are set to a single multicast address instead of different PROBLEM SOLUTION Images overlap. addresses. If a single address is used for multiple cameras, the images may overlap. ~ On the authentication popup window prompted when initially accessing https, click "View ~ If the transmission method is set to multicast, check whether there is a router that supports Authentication Certificate"...
  • Page 26 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
