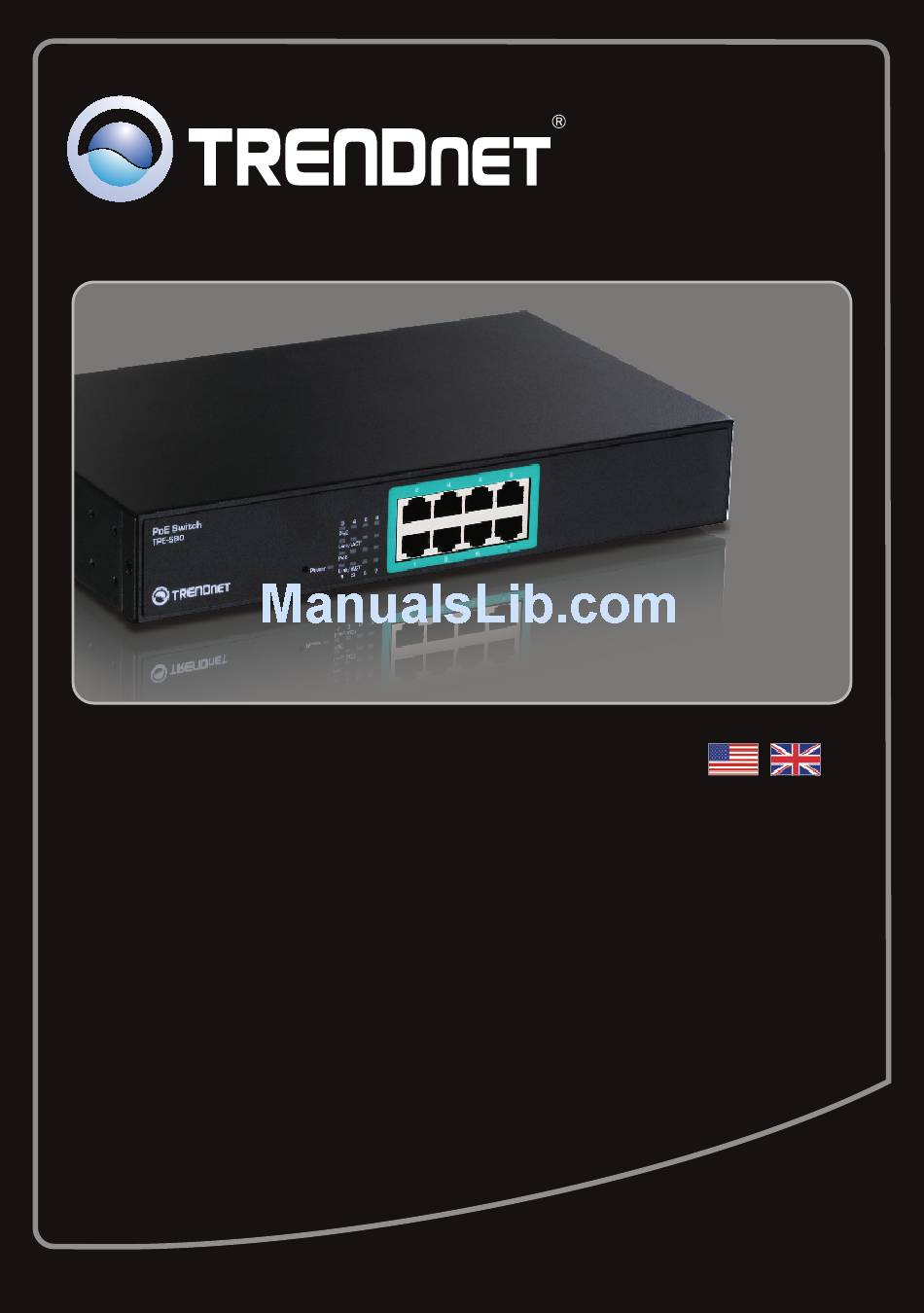

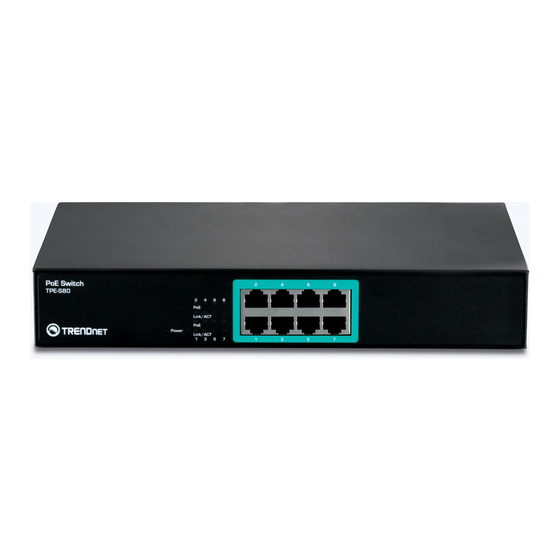

- Page 1 Quick Installation Guide TPE-S80 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start LEDs 3. Hardware Installation echnical Specifications Troubleshooting Version 04.06.2010... -
Page 3: English
Switch Do not place heavy objects on the Switch IEEE 802.3af Powered Device TPE-112S (Optional) EIA standard 19” rack (Optional) Note: The TPE-S80 only supports Powered Devices that follow the IEEE 802.3af standard Package Contents TPE-S80 Multi-Language Quick Installation Guide... -
Page 4: Leds
2. LEDs Link/ACT Green (Solid): Link to another device Green (Blinking): Activity is occurring from the link Not Illuminated: No valid network connection on the port. Amber: Link to PoE device Not Illuminated: No PoE device is connected Power Amber: Power is on Not Illuminated: Power is off... -
Page 5: Hardware Installation
3. Hardware Installation 1. Connect the Power Cord to the TPE-S80 and then to a power outlet. 2. Move the Power switch to the on position. 3. Connect a RJ-45 network cable from the computer to an available Ethernet port on the... - Page 6 4. Connect a RJ-45 cable from a PoE port (1~8) on the TPE-S80 to the LAN port of the PoE device (e.g. TEW-638PAP) 5. Verify that the following panel lights are on: Power, PoE and Link/ACT.
- Page 7 Using a non-PoE device with the TPE-S80 and the TPE-112GS PoE Splitter Note: Take note of the output power for your non-PoE device. The TPE-112GS only supports non-PoE devices with an out put power of 5V, 7.5V, 9V or 12V.
-
Page 8: Rack Mount
Rack Mount The Switch can be mounted in an EIA standard-size, 19-inch rack, which can be placed in a wiring closet with other equipment. 1. Attach the mounting brackets to both sides of the chassis and secure them with the provided screws. -
Page 9: Echnical Specifications
132 Watts max. (8 x 15.4 watts PoE devices connected) Operating: 0° ~ 45°C (32° ~ 113°F) Storage: -10° ~ 70°C (14° ~ 158°F) Up to 15.4 watts per port; PD classification Polymer switch for short protection PoE: pin 3,6 for power (+) and pin 1,2 for power (-) -
Page 10: Troubleshooting
1. After connecting the Switch to a power outlet, the LEDs do not turn on. 1. Check the connection of the power cord to the TPE-S80 and the power outlet. 2. Verify that the power switch is set to the On position. - Page 11 RMA number is required in order to initiate warranty service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
- Page 12 Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt...
- Page 14 Copyright ©2010. All Rights Reserved. TRENDnet.
