Elite Screens Pro Frame Thin DarkUST Series User Manual

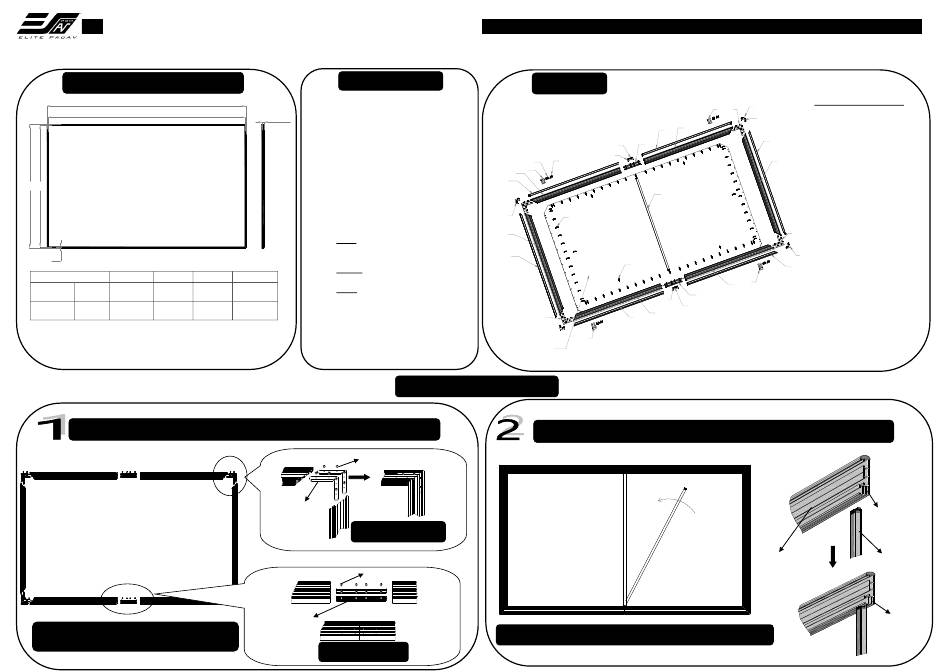

Pro Frame Thin DarkUST Series User's Guide
E Type - S/N# 205E +
Dimensions Table
A
B
C D
Bezel Width = 10mm (.39")
Unit: mm (inch)
A B
2234 2214
100 16:9
(88.0") (87.2")
2677 2657
120 16:9
(105.4") (104.6")
Frame Assembly
(2) Frame A
(10) Frame B
(14) Frame C (14) Frame C
(10) Frame B (2) Frame A
Note：Make sure all holes are in alignment and the
frame pieces are flush (no gaps), then fasten the screws.
Screen Maintenance
Dust, dirt and scratches on the projection screen
surface will affect the quality and performance
Frame Width =
of the projection image. Follow the instructions
28.2 mm (1.1")
below to properly maintain the screen.
1) The screen surface has a horizontal structure.
DO NOT wipe the screen up and down or in a
circular motion. Wipe from left to right only.
2) Clean the dust on the screen surface with a
soft brush or microfiber cloth. A rough towel or
cloth may damage the screen's surface.
3) Gently wipe the screen with a moistened
microfiber cloth with mild soap diluted in water.
Notes: The following precautions should always
be followed to avoid damaging the material,
which is not covered under warranty.
• Don't touch the screen material to avoid
leaving fingerprints. Use gloves when
handling the material.
• Don't scratch the material, as it will leave
permanent markings on the screen's surface.
C D
• Don't point to the screen material with a
1265 1245
(49.8") (49.0")
fingertip or other sharp objects to prevent
1514 1494
damage to the material.
(59.6") (58.8")
• Don't use acetone, benzene, alcohol and any
other organic solvents to clean the screen
material. Using such chemicals will
permanently damage the screen.
(11) M5x6 Screws
(15) Elbow Joint a
Corner Connection
(11) M5x6 Screws
(8) Long Center
joints
Center Connection
-04152021JA
Exploded view
5
4
3
2
1
12
17
14
13
15
18
Screen Installation
Center support bar Installation
See illustration on the right side on how to properly install the Support bar.
12
3 11
7
10
9
8
7
6
16
19
3
2
8
11
6
10
9
3
Insert the support bar's
tip into the frame's
(back side)
groove in the middle,
then rotate it and insert
the other end on the
other side of frame.
Hardware and Parts List
(1) Edge Trim A x2
(2) Frame A x2
(3) Wall Bracket x4
13
(4) Anchor x8
14
(5) Wood crews x8
(6) Short Center joints x2
(7) M4x4 Screws x24
(8) Long Center joints x4
(9) Edge Trim B x2
(10) Frame B x2
15
(11) M5x6 Screws x48
(12) Elbow Joints b x4
12
(13) Edge Trim C x2
1
(14) Frame C x2
(15) Elbow Joints a x8
(16) Support Bar x1
(17) Springs a x74-84
(18) DarkUST material x1
(19) Springs b x8
Insert groove
Frame
(16) Support Bar
Support Bar
properly inserted
into groove
