Sirio Antenne GPA 108-136 Installation Manual

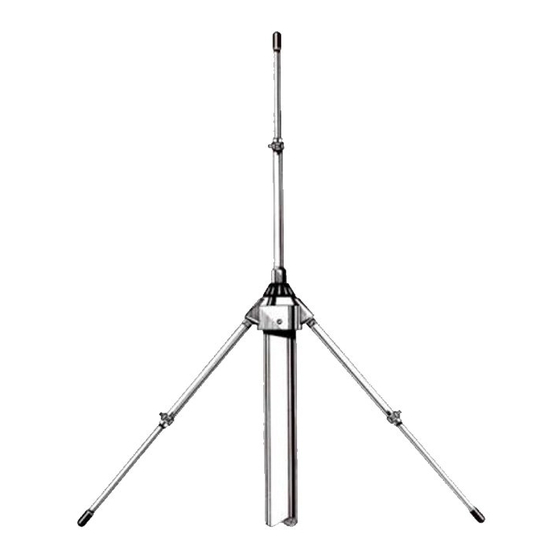

Vhf ground plane antenna 108-136 mhz

Download this manual

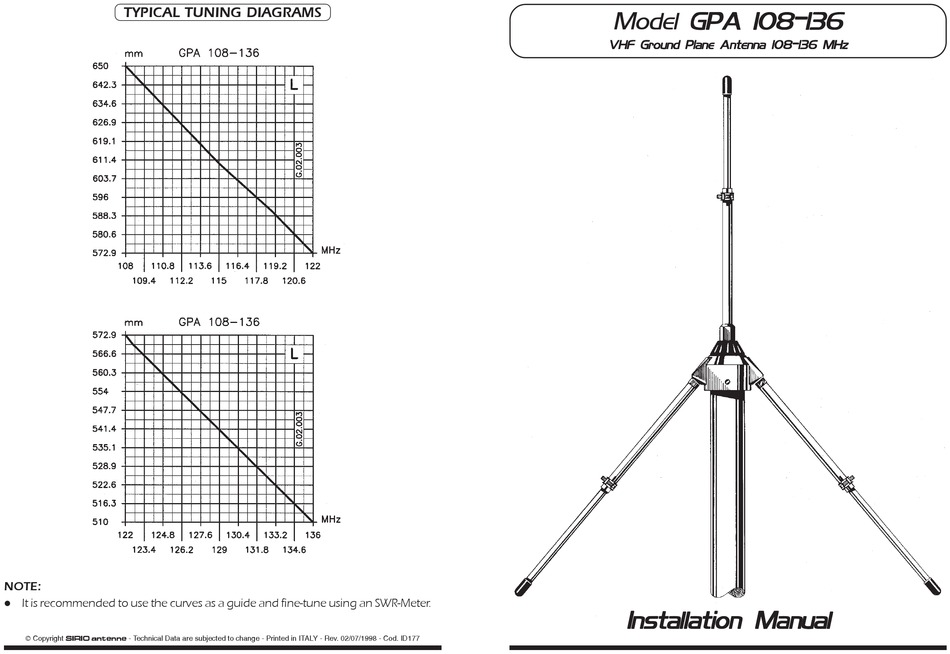

TYPICAL TUNING DIAGRAMS

NOTE:

It is recommended to use the curves as a guide and fine-tune using an SWR-Meter.

B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 02/07/1998 - Cod. ID177

GPA 108-136

Model GPA 108-136

GPA 108-136

VHF Ground Plane Antenna 108-136 MHz

Installation Manual

Need help?

Do you have a question about the GPA 108-136 and is the answer not in the manual?

Page 1 It is recommended to use the curves as a guide and fine-tune using an SWR-Meter. Installation Manual Installation Manual Installation Manual Installation Manual Installation Manual B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 02/07/1998 - Cod. ID177...
Page 2 DESCRIPTION MOUNTING INSTRUCTIONS 1/4 λ Ground Plane antenna for base station service working on 108-136 MHz by means of the tuning diagram enclosed. It is entirely made of non-corrosive aluminium and assembled on a strong die-cast base which allows an easy and safe installation assuring very good performances. SPECIFICATIONS Electrical Data 1/4 λ...
