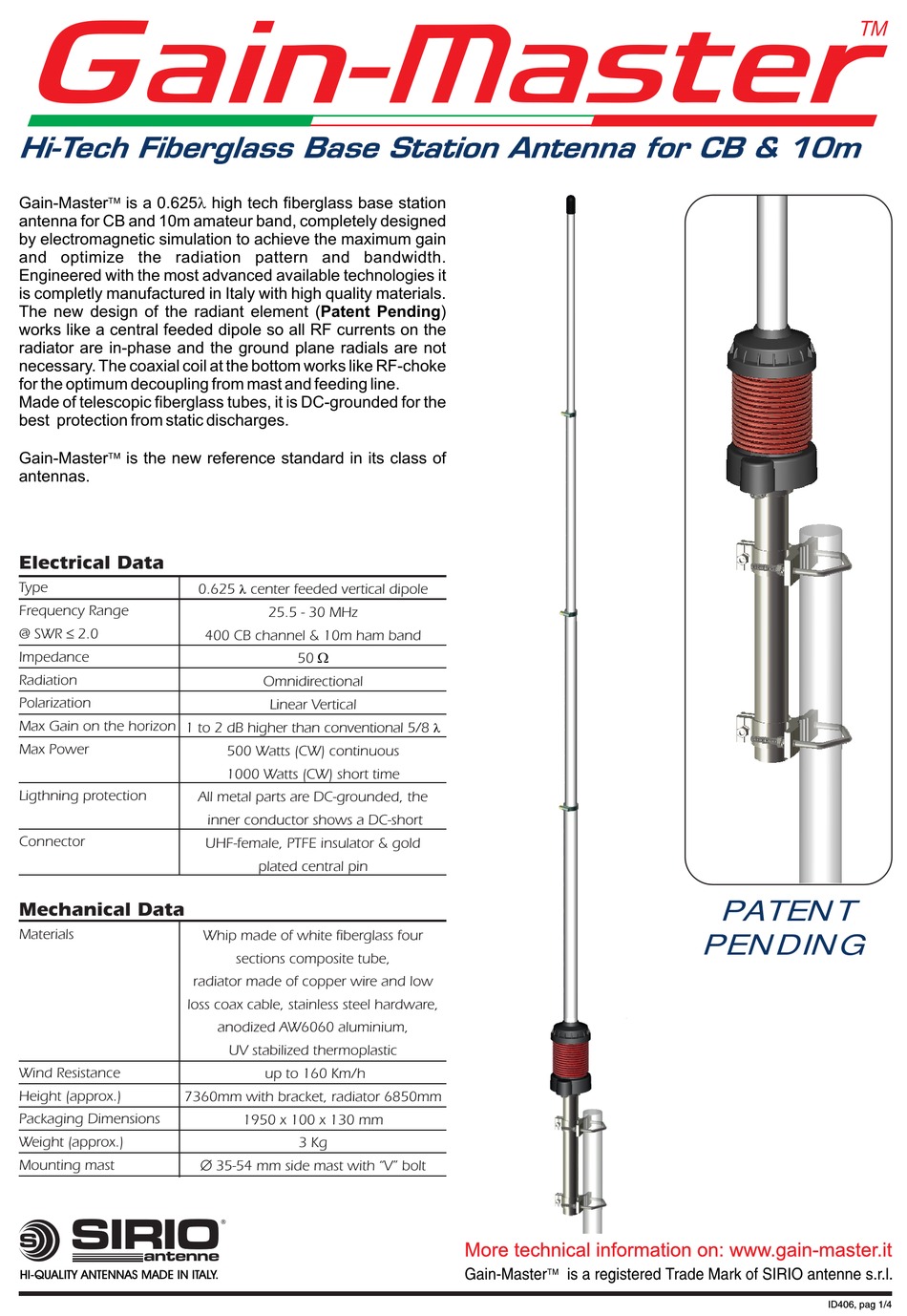

Sirio Antenne Gain-Master Manual

Gain-Masterä is a 0.625
antenna for CB and 10m amateur band, completely designed
by electromagnetic simulation to achieve the maximum gain
and optimize the radiation pattern and bandwidth.
Engineered with the most advanced available technologies it
is completly manufactured in Italy with high quality materials.
The new design of the radiant element (Patent Pending)
works like a central feeded dipole so all RF currents on the
radiator are in-phase and the ground plane radials are not
necessary. The coaxial coil at the bottom works like RF-choke
for the optimum decoupling from mast and feeding line.
Made of telescopic fiberglass tubes, it is DC-grounded for the
best protection from static discharges.
Gain-Masterä is the new reference standard in its class of
antennas.
Electrical Data
Type
Frequency Range
@ SWR 2.0
£
Impedance
Radiation
Polarization
Max Gain on the horizon
1 to 2 dB higher than conventional 5/8
Max Power
Ligthning protection
Connector

Mechanical Data

Materials
loss coax cable, stainless steel hardware,
Wind Resistance
Height (approx.)
7360mm with bracket, radiator 6850mm
Packaging Dimensions
Weight (approx.)
Mounting mast
SIRIO
S
antenne
HI-QUALITY ANTENNAS MADE IN ITALY.
l high tech fiberglass base station
0.625 center feeded vertical dipole
l
25.5 - 30 MHz
400 CB channel & 10m ham band
50
W
Omnidirectional
Linear Vertical
500 Watts (CW) continuous
1000 Watts (CW) short time
All metal parts are DC-grounded, the
inner conductor shows a DC-short
UHF-female, PTFE insulator & gold
plated central pin
Whip made of white fiberglass four
sections composite tube,
radiator made of copper wire and low
anodized AW6060 aluminium,
UV stabilized thermoplastic
up to 160 Km/h
1950 x 100 x 130 mm
3 Kg
35-54 mm side mast with "V" bolt
Æ
l
More technical information on: www.gain-master.it
Gain-Master is a registered Trade Mark of SIRIO antenne s.r.l.
ä
TM
PATENT
PENDING
ID406, pag 1/4
