DESCRIPTION

DESCRIPTION
5/8
antenna for base station working on 27 MHz. It is made of anti-corodal aluminium tubes and supplied with
jointing sleeves of polythene to guarantee a perfect waterproofing. Strong and easy to install, it allows very good links.
REMARK Tornado 27 is an antenna that is influenced by the height from
the ground plane where it's installed. Unfortunately it's difficult to give the
correct instructions as the places where antennas could be installed are so
different in sizes and types that's impossible to give the correct way to
mount it. However we suggest to carefully verify the height of your
installation pole in order to avoid too much influence of the ground plane
to the antenna performance. Suggested length of final element for the 27
MHz is L=1120 mm but we recommend to get the fine tuning by checking
with your SWR-meter as the ground plane can highly influence the
performance of your antenna.

SPECIFICATIONS

SPECIFICATIONS
Electrical Data
Type
Frequency range
Impedance
Radiation (H-plane)
Polarization
Gain
Bandwidth @ SWR
2 :
SWR @ res. freq.
Max Power
Feed system / position : Transformer / base
Connector
Mechanical Data
Materials
Wind Load / Resistance : 187 N @ 150Km/h / 130 Km/h
Wind surface
Length (approx.)
Weigth (approx.)
Mounting Mast
TORNADO 27 5/8
TORNADO 27 5/8
CB Base Station Antenna
: 5/8
Ground Plane
: 26 - 28 MHz
: 50
: 360° omnidirectional
: Linear Vertical
: 1.2 dBd, 3.35 dBi
2000 KHz (180 channel)
:
1.2
: 1000 Watts (CW) continuous
: 3000 Watts (CW) short time
: UHF-female
: Aluminium, Steel, Nylon
2
: 0.16 m
: 7230 mm
: 2900 gr
:
35-42 mm
HI-QUALITY ANTENNAS MADE IN ITALY
ID039

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TORNADO 27 5/8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sirio Antenne TORNADO 27 5/8

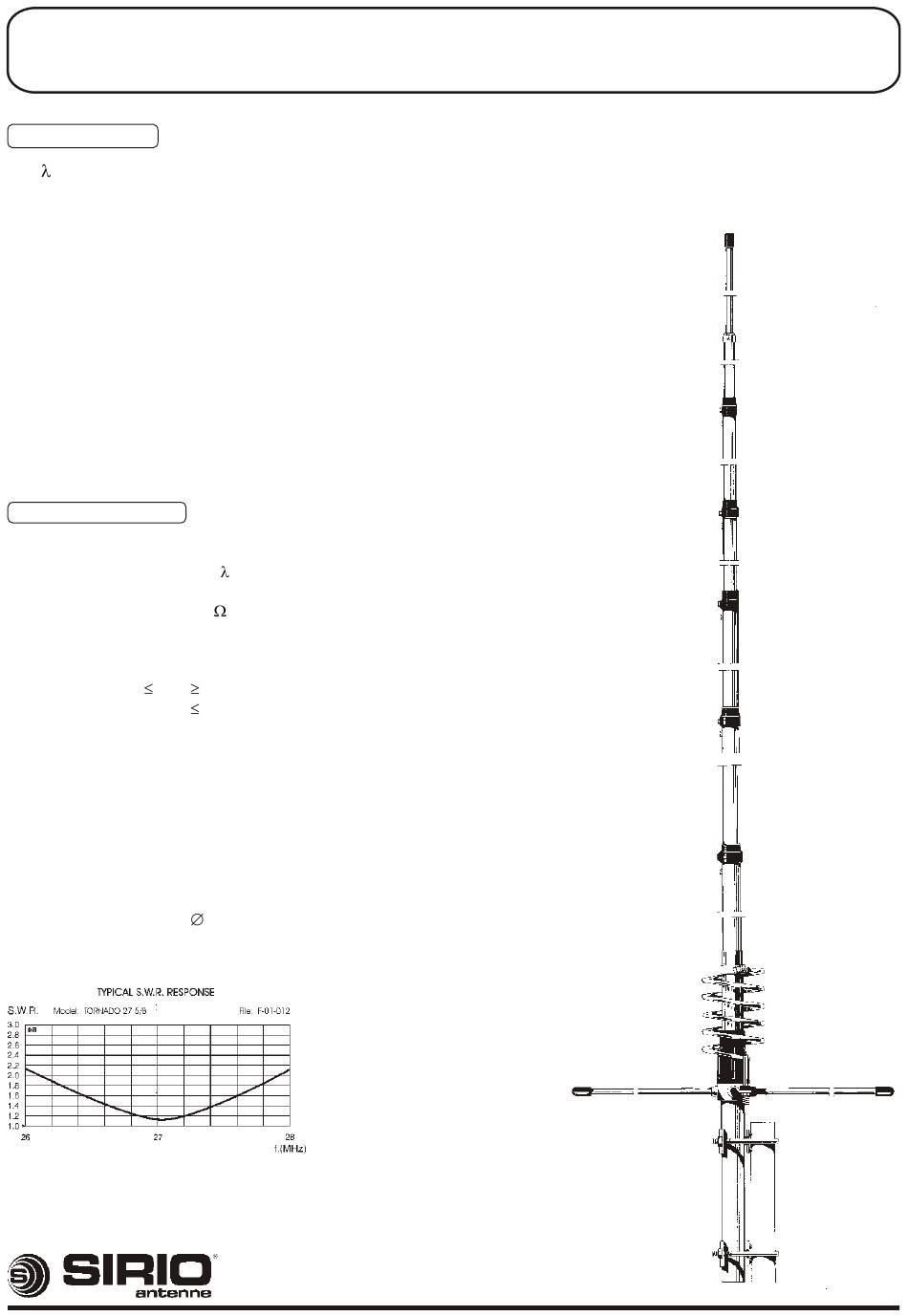

  • Page 1 TORNADO 27 5/8 TORNADO 27 5/8 CB Base Station Antenna DESCRIPTION DESCRIPTION antenna for base station working on 27 MHz. It is made of anti-corodal aluminium tubes and supplied with jointing sleeves of polythene to guarantee a perfect waterproofing. Strong and easy to install, it allows very good links.
