Sirio Antenne GP 160 LB Installation Manual

Enlarged version

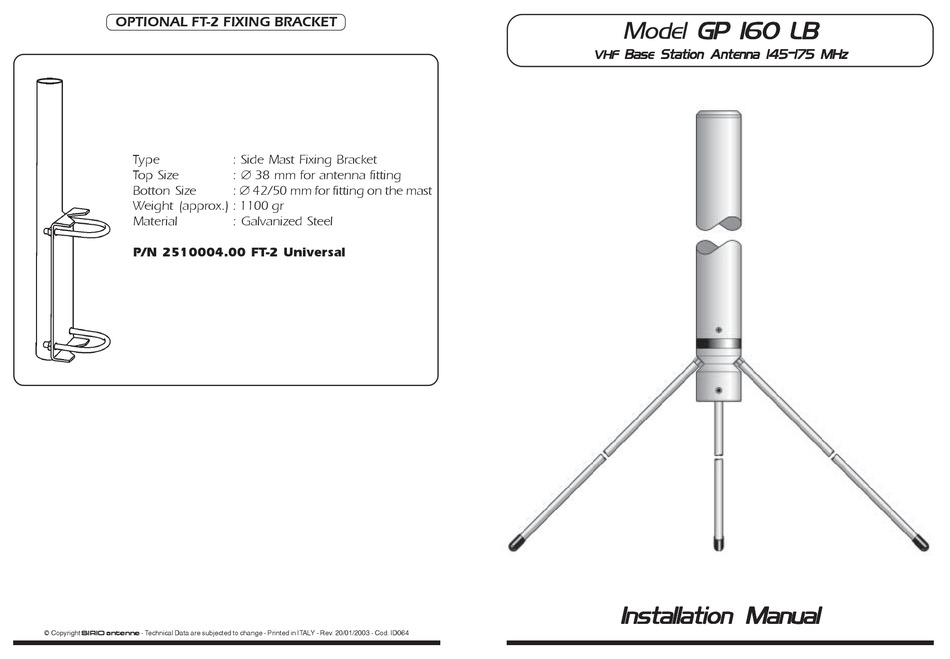

OPTIONAL FT-2 FIXING BRACKET

Type

Top Size

Botton Size

Weight (approx.) : 1100 gr

Material

P/N 2510004.00 FT-2 Universal

B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 20/01/2003 - Cod. ID064

: Side Mast Fixing Bracket

: ∅ 38 mm for antenna fitting

: ∅ 42/50 mm for fitting on the mast

: Galvanized Steel

GP 160 LB

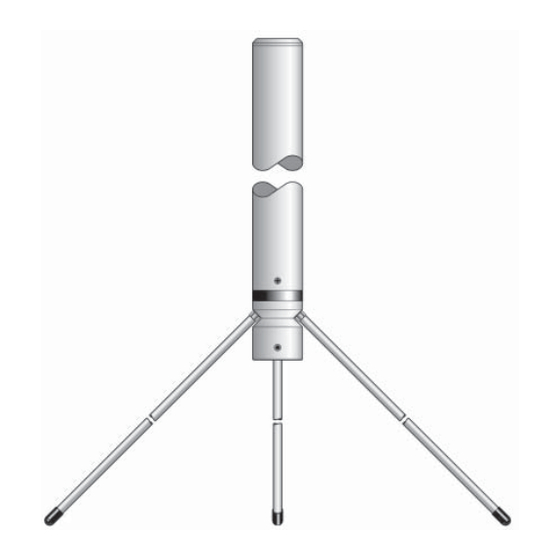

Model GP 160 LB

GP 160 LB

Base Station Antenna 145-175 MHz

VHF

Installation Manual

Table of Contents

Do you have a question about the GP 160 LB and is the answer not in the manual?

Page 1 Weight (approx.) : 1100 gr Material : Galvanized Steel P/N 2510004.00 FT-2 Universal Installation Manual Installation Manual Installation Manual Installation Manual Installation Manual B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 20/01/2003 - Cod. ID064...
Page 2: Mounting Instructions
Max Power 1000 Watts Feed System / Posistion Direct DC-Ground / Center Connector GP 160 LB - U UHF Female, gold plated central pin GP 160 LB - N N Female, gold plated central pin and teflon insulator Mechanical Data...
