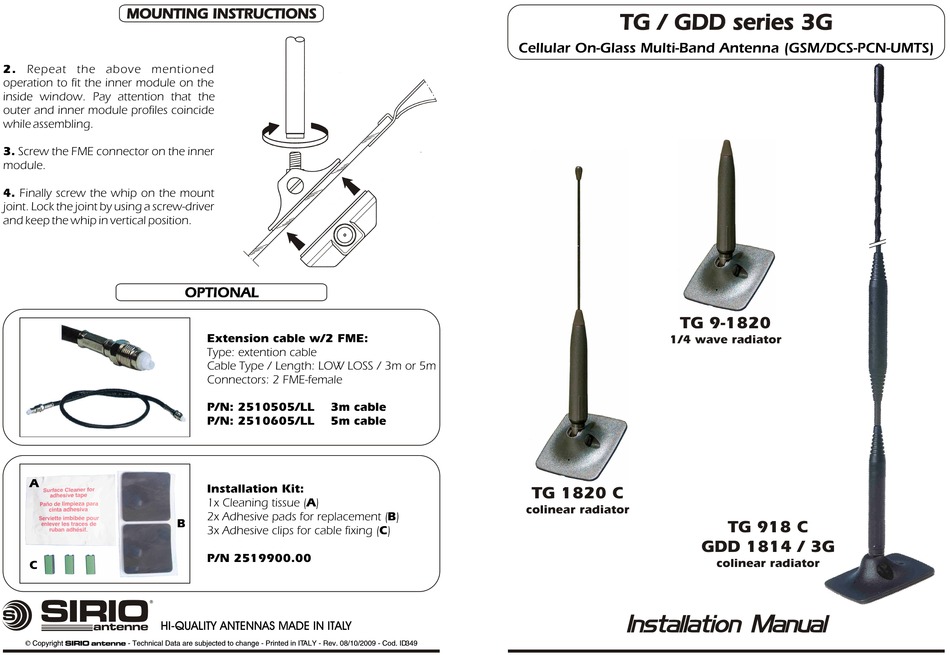

Sirio Antenne TG / GDD Series Installation Manual

MOUNTING INSTRUCTIONS MOUNTING INSTRUCTIONS
2. Repeat the above mentioned
operation to fit the inner module on the
inside window. Pay attention that the
outer and inner module profiles coincide
while assembling.
3. Screw the FME connector on the inner
module.
4. Finally screw the whip on the mount
joint. Lock the joint by using a screw-driver
and keep the whip in vertical position.
A
B
C
SIRIO
S
HI-QUALITY ANTENNAS MADE IN ITALY
antenne
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 08/10/2009 - Cod. ID349
OPTIONAL OPTIONAL
Extension cable w/2 FME:
Type: extention cable
Cable Type / Length: LOW LOSS / 3m or 5m
Connectors: 2 FME-female
P/N: 2510505/LL 3m cable
P/N: 2510605/LL 5m cable
Installation Kit:
1x Cleaning tissue (A)
2x Adhesive pads for replacement (B)
3x Adhesive clips for cable fixing (C)
P/N 2519900.00
TG / GDD series 3G TG / GDD series 3G
Cellular On-Glass Multi-Band Antenna (GSM/DCS-PCN-UMTS)
TG 9-1820
1/4 wave radiator
TG 1820 C
colinear radiator
TG 918 C
GDD 1814 / 3G
colinear radiator
