Sirio Antenne GP 3-F Installation Manual

Vhf base station antenna 135-175 mhz

Download this manual

Enlarged version

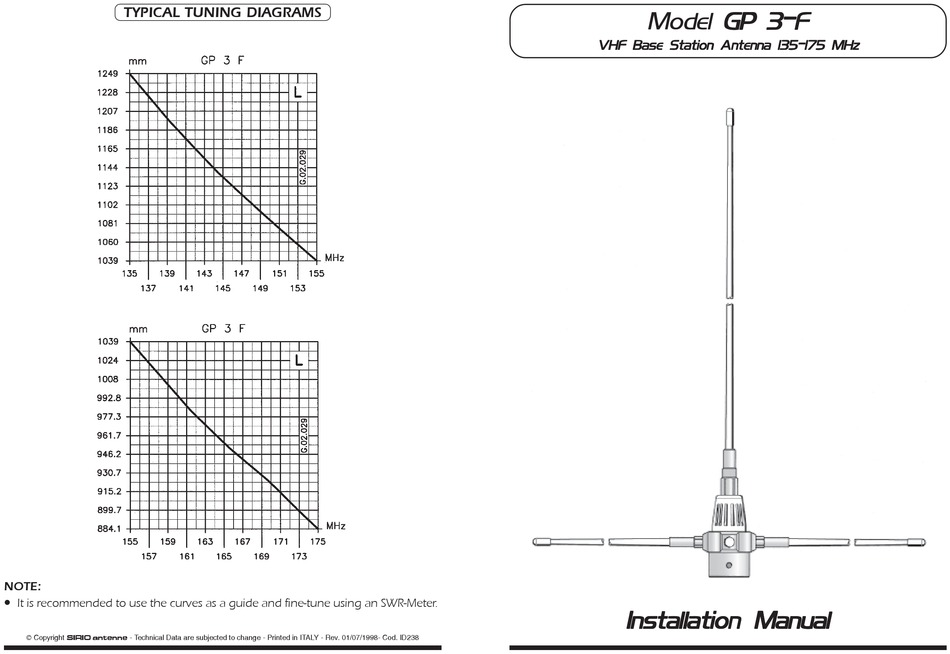

TYPICAL TUNING DIAGRAMS

NOTE:

•

It is recommended to use the curves as a guide and fine-tune using an SWR-Meter.

B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 01/07/1998- Cod. ID238

GP 3-F

Model GP 3-F

GP 3-F

VHF Base Station Antenna 135-175 MHz

Installation Manual

Need help?

Do you have a question about the GP 3-F and is the answer not in the manual?

Page 1 It is recommended to use the curves as a guide and fine-tune using an SWR-Meter. Installation Manual Installation Manual Installation Manual Installation Manual Installation Manual B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 01/07/1998- Cod. ID238...
Page 2 135-175 MHz by using the cutting diagram enclosed. The matching coil is DC feeded for a perfect protection from the static discharges. GP 3-F is made of fiber-glass and assembled on a very strong base of chromed die-cast metal to get the maximum robustness and the best performance.
