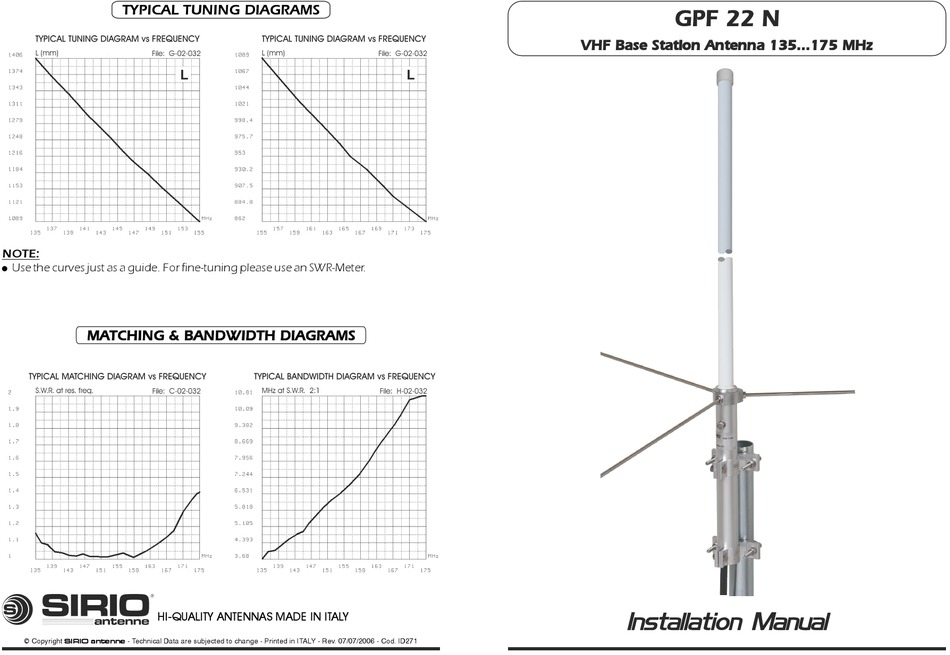

TYPICAL TUNING DIAGRAMS
GPF 22 N
VHF Base Station Antenna 135...175 MHz
NOTE:
Use the curves just as a guide. For fine-tuning please use an SWR-Meter.
!
MATCHING & BANDWIDTH DIAGRAMS
HI-QUALITY ANTENNAS MADE IN ITALY
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 07/07/2006 - Cod. ID271

Advertisement

loading
Need help?

Need help?

Do you have a question about the GPF 22 N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sirio Antenne GPF 22 N

Summary of Contents for Sirio Antenne GPF 22 N

  • Page 1 Use the curves just as a guide. For fine-tuning please use an SWR-Meter. MATCHING & BANDWIDTH DIAGRAMS HI-QUALITY ANTENNAS MADE IN ITALY B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 07/07/2006 - Cod. ID271...

  • Page 2: Specifications

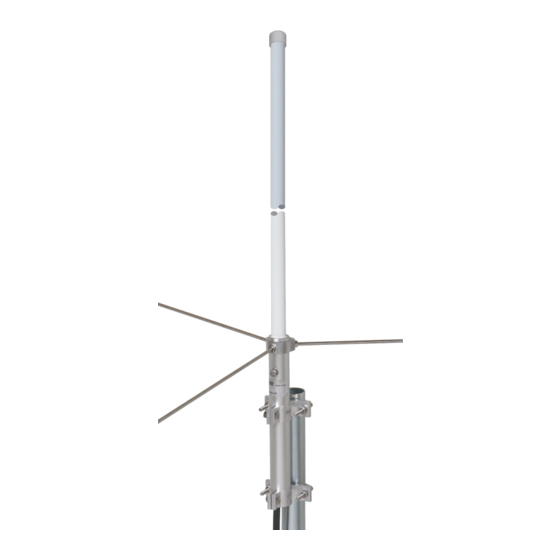

    DESCRIPTION MOUNTING AND TUNING INSTRUCTIONS 2x5/8 l Ground Plane base station colinear antenna for land and marine service. It works on 135...175 MHz by using the cutting diagram enclosed. The matching coil is DC feeded for a perfect protection from the static discharges. GPF 22-N is made of fiberglass, non-corrosive aluminium, stainless steel and its die-cast strong base assures the maximum robustness and the best performance.
