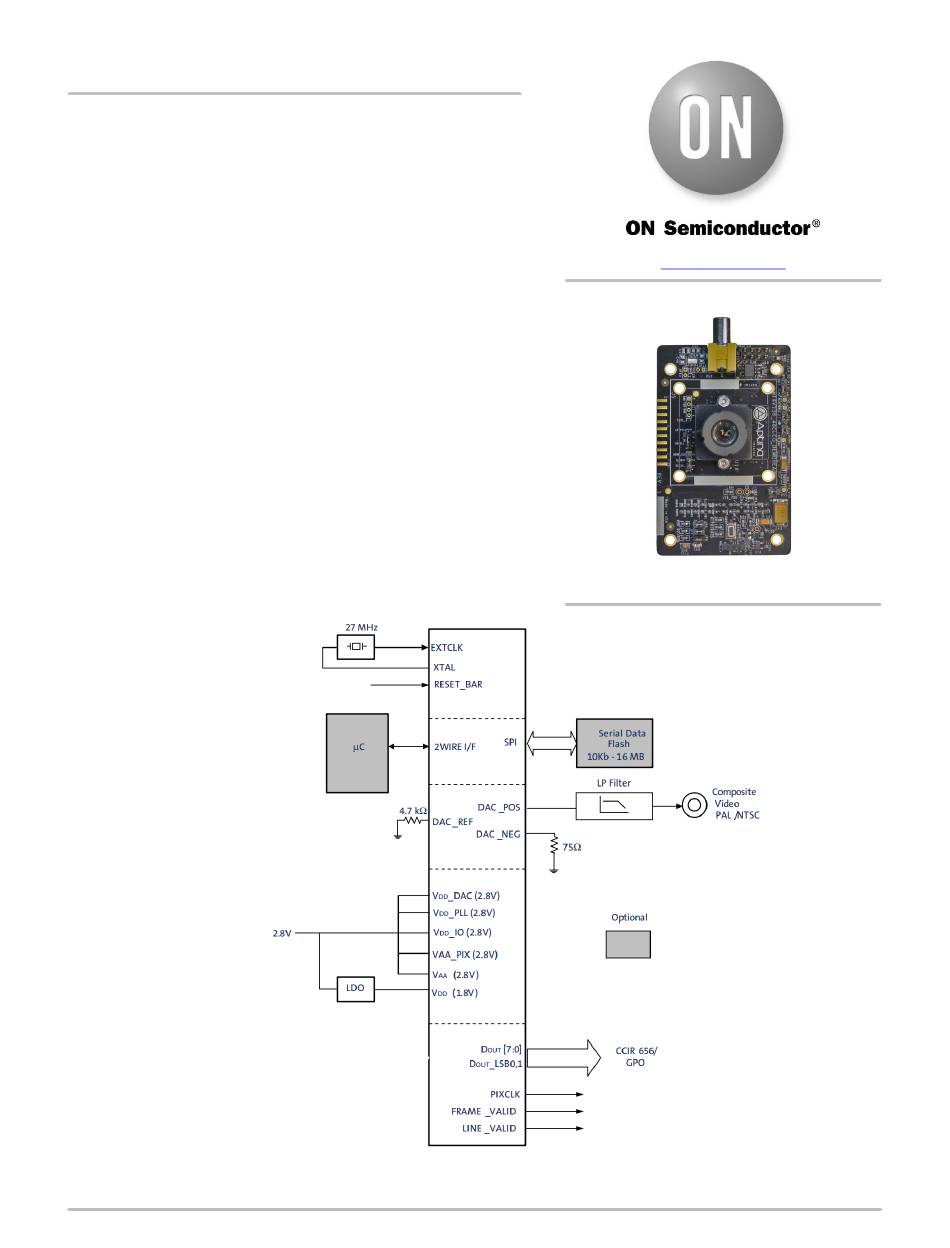

MT9V136C12STCH-GEVB
MT9V136 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.

Features

Clock Input
Default − 27 MHz crystal oscillator
Optional Demo 2X controlled MClk
Two Wire Serial Interface
Selectable base address
Parallel Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
Figure 2. Block Diagram of MT9V136C12STCH−GEVB
EVAL BOARD USER'S MANUAL

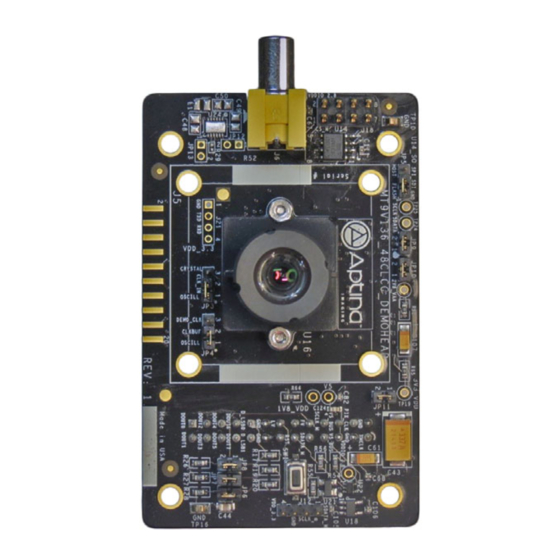

Figure 1. MT9V136 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2473/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT9V136 and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor MT9V136

  • Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com ON Semiconductor’s image sensors products. This headboard is intended to plug directly into the Demo 2X system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to clock, I/Os and other miscellaneous signals.
  • Page 2 MT9V136C12STCH−GEVB Top View UART Control JP13 SPI_SDI JP5 TRST_N JP9 SADDR JP10 CLK_IN JP3 CLK_SELECT JP4 ON_LED JP11 DOUT_LSB0 JP8 FV JP7 LV JP6 RESET SW1 Figure 3. Top View of Evaluation Board − Jumpers Bottom View Baseboard Connector J7 Figure 4.
  • Page 3 MT9V136C12STCH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 (Default) 1−2 UART Active RESET When pushed, 240 ms reset signal will be sent to MT9V136 Interfacing to ON Semiconductor Demo 2X Baseboard The ON Semiconductor Demo 2X baseboard has headboard. The four mounting holes secure the baseboard a similar 26-pin connector which mates with J7 of the and the headboard with spacers and screws.
  • Page 5 onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
