MT9V124EBKSTCH-GEVB
MT9V124 Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•
Clock Input
Default – 22 MHz Crystal Oscillator
♦
Optional Demo 2X Controlled MClk
♦
•
Two Wire Serial Interface
Selectable Base Address
♦
•
Serial LVDS Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
August, 2016 − Rev. 0

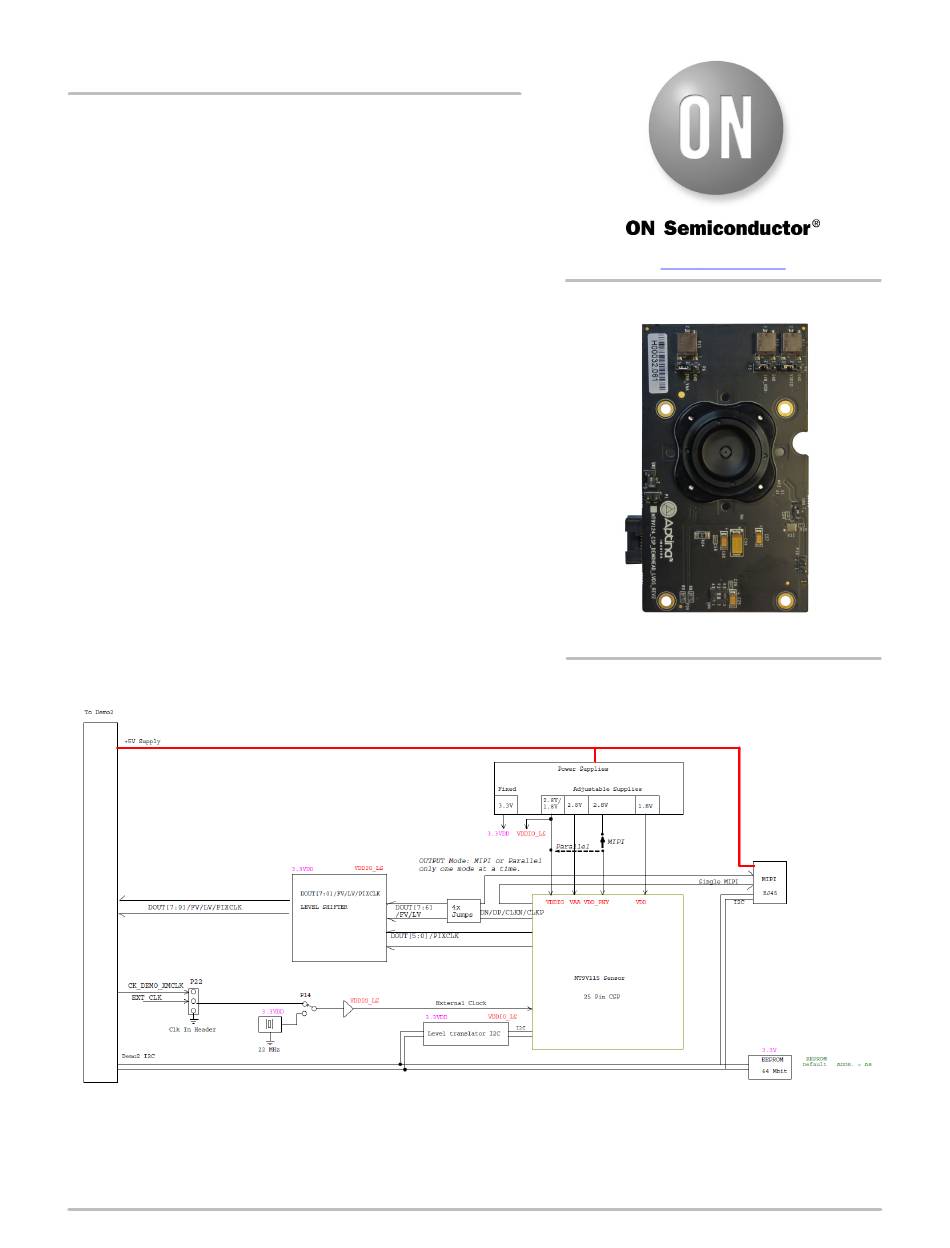

Figure 2. Block Diagram of MT9V124EBKSTCH−GEVB
EVAL BOARD USER'S MANUAL
Figure 1. MT9V124 Evaluation Board
