MT9V127IA3XTCH-GEVB
MT9V127 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.

Features

Clock Input
Default − 27 MHz crystal oscillator
Optional Demo 2X controlled MClk
Two Wire Serial Interface
Selectable base address
Parallel Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
All manuals and user guides at all-guides.com
Figure 2. Block Diagram of MT9V127IA3XTCH−GEVB
1
www.onsemi.com
EVAL BOARD USER'S MANUAL

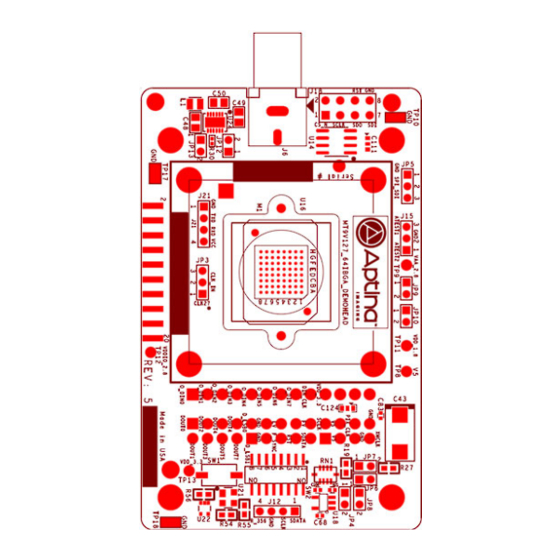

Figure 1. MT9V127 Evaluation Board
Publication Order Number:
EVBUM2471/D
