MT9V127IA3XTCH-GEVB
MT9V127 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.

Features

Clock Input
Default − 27 MHz crystal oscillator
Optional Demo 2X controlled MClk
Two Wire Serial Interface
Selectable base address
Parallel Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
Figure 2. Block Diagram of MT9V127IA3XTCH−GEVB
EVAL BOARD USER'S MANUAL

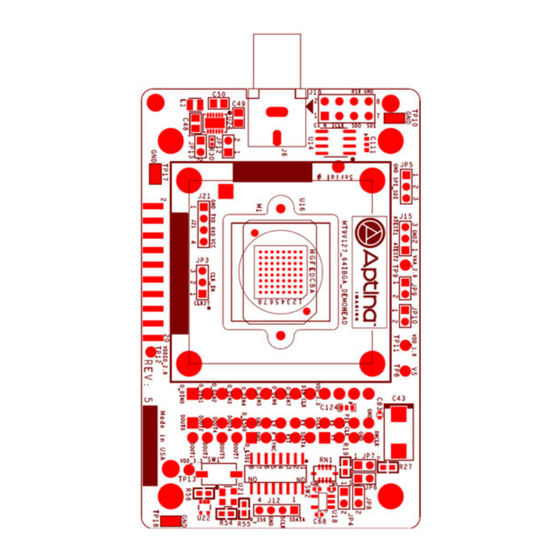

Figure 1. MT9V127 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2471/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT9V127IA3XTCH-GEVB and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor MT9V127IA3XTCH-GEVB

  • Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com ON Semiconductor’s image sensors products. This headboard is intended to plug directly into the Demo 2X system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to clock, I/Os and other miscellaneous signals.
  • Page 2 MT9V127IA3XTCH−GEVB Top View UART Control JP13 SPI_SDI JP5 CLK_SELECT JP3 TRST_N JP9 SADDR JP10 FV JP7 RESET SW1 LV JP6 DOUT_LSB0 JP8 FRAME_SYNC JP4 Figure 3. Top View of Evaluation Board − Jumpers Bottom View Baseboard Connector J8 Baseboard Connector J7 Figure 4.
  • Page 3 MT9V127IA3XTCH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 Interfacing to ON Semiconductor Demo 2X Baseboard with J7 and J8 of the headboard. The four mounting holes The ON Semiconductor Demo 2X baseboard has a secure the baseboard and the headboard with spacers and similar 26-pin connector and 13 pin connector which mate screws.
  • Page 5 onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
