CONVENTIONAL AIR CAP AND FLUID NOZZLE CHART
PRESS.
MODEL
AIR CAPS
OR
NO.
SIPHON
press/siph
23-2010*
press/siph
LYNX 300C
23-2013* press/siph
(L300C)
23-2014* press/siph
23-2016* press/siph
Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)
*Gun inlet pressures may vary as required by application
*RECOM. GUN
FAN
INLET PRESS.
CONTROL
45-55
60-1500
Lynx 300C

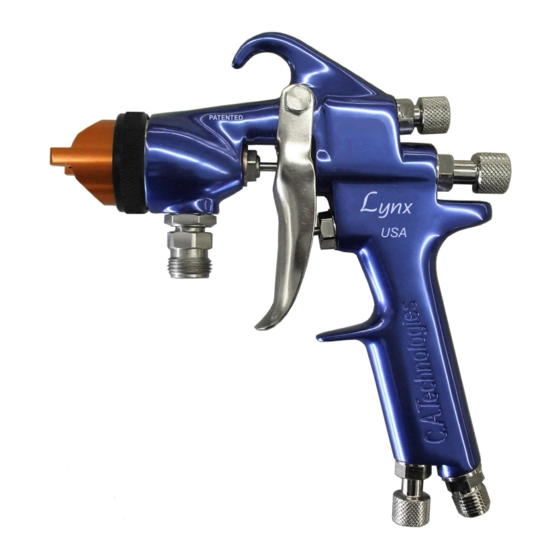

PRESSURE/SIPHON FEED SPRAY GUN
SCFM @
STANDARD
AIR CAP
MAX GUN
IN CAT
RING
INLET
PACK
Included
9-10.7
23-0201
Included
Included
PRODUCT INFORMATION
AVAILABLE FLUID
NOZZLES TIPS
marking on needle
33-0608 0.8mm (.022")
33-0610 1.0mm (.040")
33-0613 1.3mm (.052")
33-0614 1.4mm (.055")
33-0616 1.6mm (.063")
NEEDLES /
40-1308C (308)
40-1310C (310)
40-1313C (313)
40-1314C (314)
40-1315C (315)
