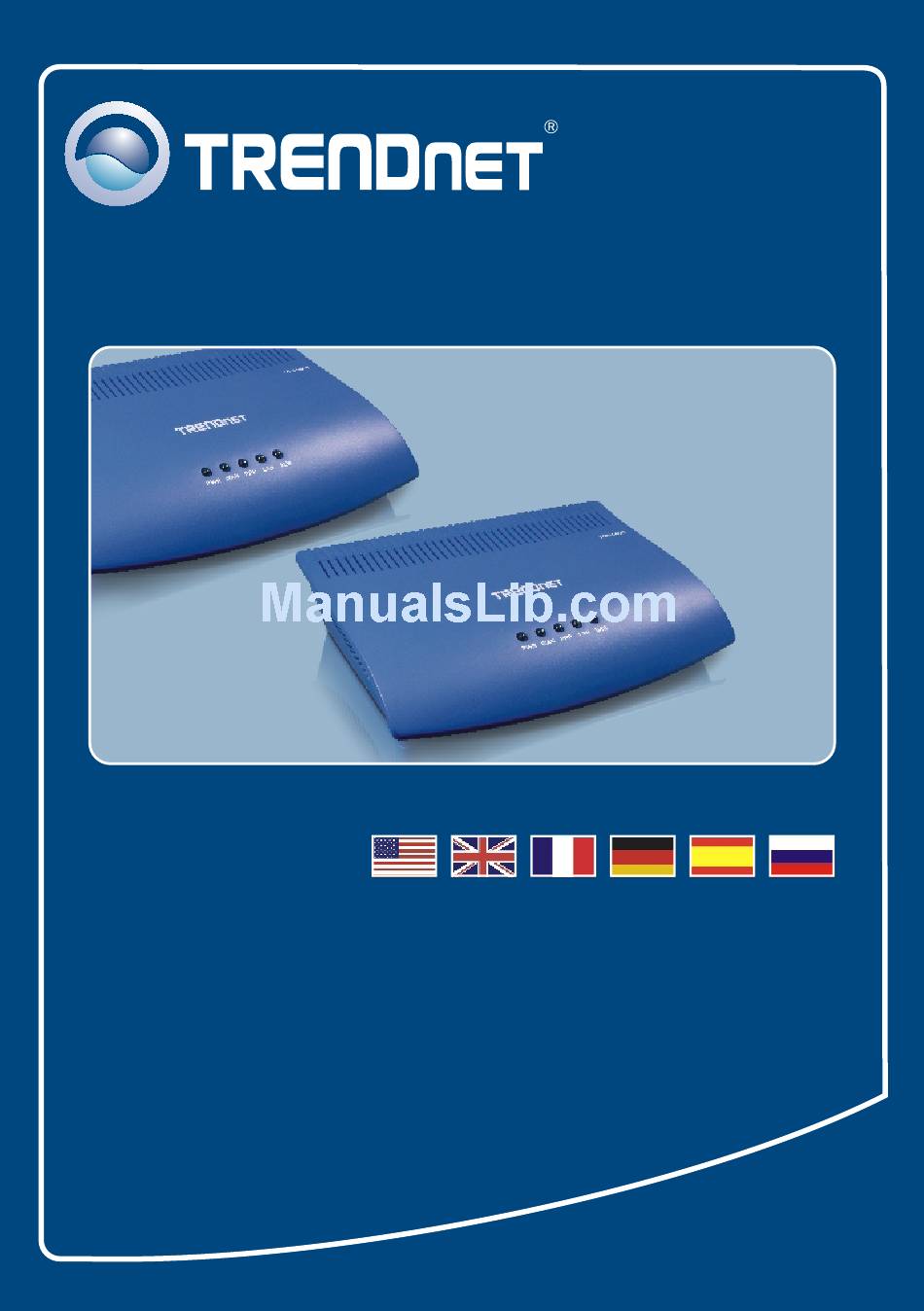

- Page 1 Quick Installation Guide TDM-E400 TDM-C400...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start Hardware Installation . Software Installation (TDM-C400 only) ... 4. Configuring the ADSL Modem through Ethernet or USB connection .. Troubleshooting ... Version 09.07.2006... -
Page 3: English
Fast Ethernet PCI Adapter (TE100-PCIWN) TDM-E400/TDM-C400 CD-ROM (User's Guide) Quick Installation Guide 1 x RJ-45 Cat.5 Cable 1 x USB Cable (for TDM-C400 only) 1 x RJ-11 Telephone Cable Power Adapter (15V DC 1A) ADSL Enabled Phone Jack (TDM-C400 only) Stand-Alone PC... - Page 4 Collect the following information from your ADSL2+ service provider VPI value: ______ VCI value: ______ Encapsulation type: □ LLC/SNAP or □ VC/MUX As well as: For PPPoA (RFC2364) or PPPoE (RFC2516) User Name: _______________________ Password: ________________________ Authentication method: □ PAP or □ CHAP Host or IP address: _________________ For Static or Fixed IP Connectin (RFC1483 or RFC1577) Host: ____________________________...
-
Page 5: Hardware Installation
2. Hardware Installation 1. Connect the RJ-11 cable. 2. Connect the RJ-45 cable (and/or connect the USB cable for TDM-C400 USB combo Model only). 3. Attach the power connector to the ADSL2+ ethernet router. 4. Allow the device 60 seconds to boot. -
Page 6: Software Installation (Tdm-C400 Only)
3. Software Installation (TDM-C400 only) Note: For Windows 98/98SE applications, you may need the Windows 98/98SE CD ROM to complete the installation. Before starting the software setup process, close all Windows programs currently running on your PC. 1. The system automatically detects... - Page 7 3. The “Welcome!” windows appears. Exit all Windows programs before continuing. Then, click on Next. 4. Please review the license agreement and click Accept to continue. 5. The USB Modem Setup Wizard will begin installing the software and indicates the progress of the installation.
- Page 8 Select “Yes, reboot the computer now” and then click Close. 8. After rebooting, the device will be installed. Please click Finish. 9. From Programs, go to TRENDnet DSL Modem and click on the DSL Status. 10. The “Physical Link” tab of the “TRENDnet DSL Modem”...
-
Page 9: Configuring The Adsl Modem Through Ethernet Or Usb Connection
4. Configuring the ADSL Modem through Ethernet or USB connection Note: The DHCP server of the ADSL2+ modem router is enabled by default. Please configure your computer to automatically obtain an IP address from the ADSL2+ modem router’s DHCP Server. - Page 10 4. The Quick Configuration table will appear requiring you to fill in the fields with the appropriate information provided by your Service Provider. 5. Then click the Submit button. 6. Click Admin in the Web Configuration screen. 7. Click Commit & Reboot. 8.
- Page 11 ADSL2+ modem router. Your installation is now complete. For detailed information regarding the TDM-E400/TDM-C400 configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. English...
-
Page 12: Troubleshooting
Support Department for the correct information. I specified the IP address 192.168.1.254 in my Web browser, but an error messages says, "The page cannot be displayed. How can I get into the TDM-E400 / TDM-C400 web configuration page? Please check your hardware and TCP/IP settings again by following the instructions in the QIG. - Page 13 3. Verify that a Network Address Translation rule has been defined on the ADSL2+ Ethernet Router to translate the private address to your public IP address. The assigned IP address must be within the range specified in the NAT rules (see User Guide, Chapter 4). Or, configure the PC to accept an address assigned by another device (see “Quick Start Part 2...
- Page 14 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 15 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2006. All Rights Reserved. TRENDnet.
