TRENDnet TW100-BRF114U Faq

TRENDnet TW100-BRF114U Faq

Hide thumbs Also See for TW100-BRF114U:

Advertisement

Quick Links

Download this manual See also: User Manual

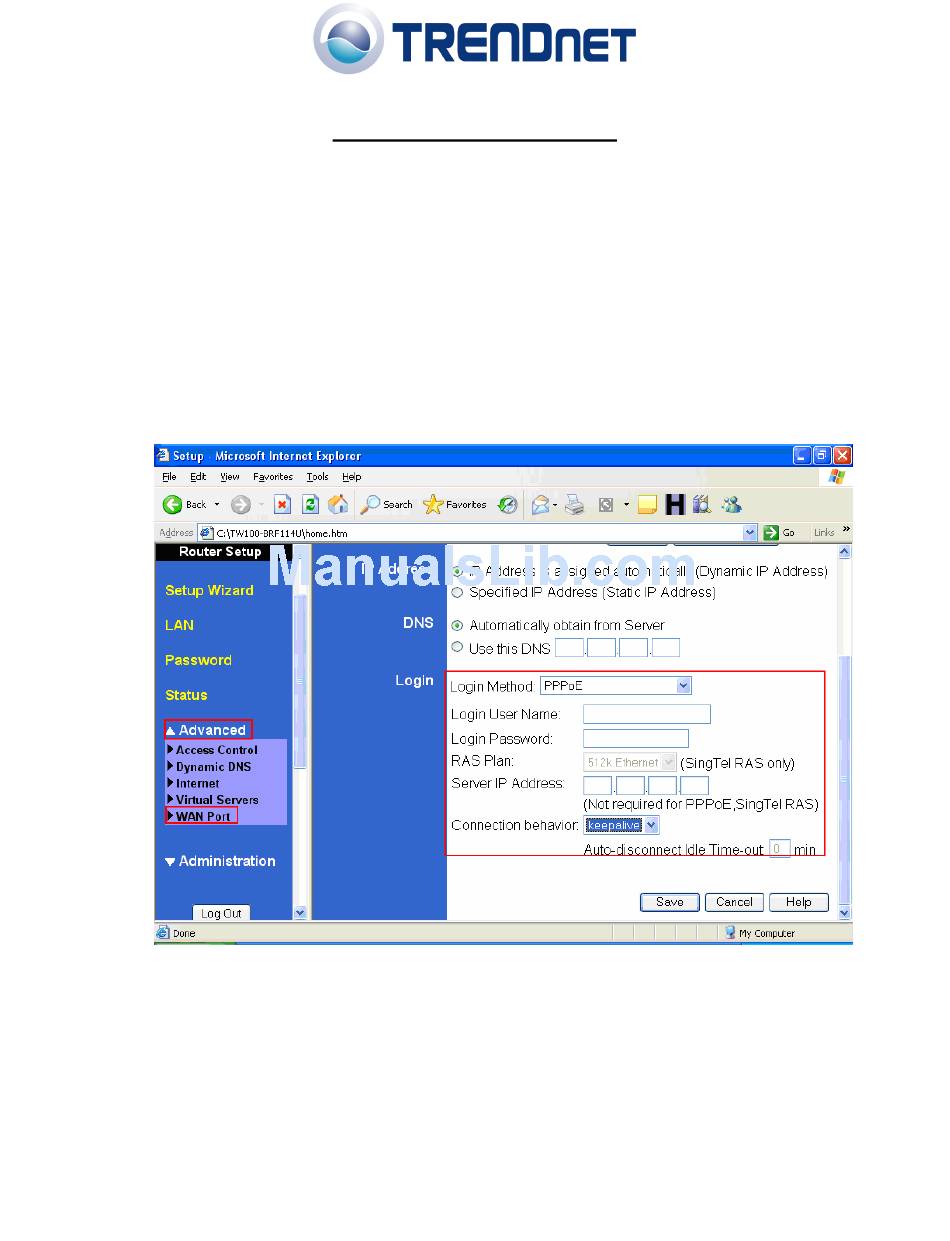

Q: How do I configure the TW100-BRF114U for a DSL, PPPoE connection?
A: Open your web browser and type the IP address of the TW100-BRF114U in the address bar.
The default IP address is 192.168.0.1. At the login, enter your username (blank) and password
(blank).
NOTE: If the Setup Wizard starts, click on Cancel.
Click on Advanced then WAN Port on the left hand side.
1) Choose PPPoE for the Login Method in the Login section.
2) Enter your Username and Password provided by your ISP (Internet Service Provider).
3) Click on the down arrow for the Connection behavior and select "keepalive".
4)
Click Save.
Note: After you save the settings you may need to power cycle the modem and router.
1) Disconnect the power cycle from the modem and router.
2) Wait approximately 15 seconds.
3) Reconnect the modem first and wait for it to boot up.
4) After the modem has booted up reconnect the router.
F.A.Q for TW100-BRF114U
04/03/2006

Advertisement

loading
Need help?

Need help?

Do you have a question about the TW100-BRF114U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TW100-BRF114U

Summary of Contents for TRENDnet TW100-BRF114U

  • Page 1 Q: How do I configure the TW100-BRF114U for a DSL, PPPoE connection? A: Open your web browser and type the IP address of the TW100-BRF114U in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
  • Page 2 04/03/2006 5) Open your web browser and type the IP address of the TW100-BRF114U in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank). NOTE: If the Setup Wizard starts, click on Cancel.
  • Page 3 Note: The default setting of the router is configured for a Cable connection using a Dynamic IP Address. 1) Open your web browser and type the IP address of the TW100-BRF114U in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
  • Page 4 4) After the modem has booted up reconnect the router. Open your web browser and type the IP address of the TW100-BRF114U in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
  • Page 5 04/03/2006...
  • Page 6 Q: How do I change the username & password on my TW100-BRF114U? A: Open your web browser and type the IP address of the TW100-BRF114U in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
  • Page 7 A: The default IP address for the TW100-BRF114U is 192.168.0.1. Q: What is the default username and password for the TW100-BRF114U? A: The default username & password for the TW100-BRF114U are both (blank). There is no username and password set by default.
  • Page 8 Q: How do I change the IP Address of my TW100-BRF114U? 1) Open your web browser and type the IP address of the TW100-BRF114U in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
  • Page 9 04/03/2006 4) Select Obtain an IP address automatically and Obtain DNS server address automatically then click OK.
  • Page 10 04/03/2006 5) Click OK again.
  • Page 11 6) Your computer is now ready to access and configure the TW100-BRF114U. 7) Open your web browser and type the IP address of the TW100-BRF114U in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
  • Page 12 Q: How do I forward ports in my TW100-BRF114U? A: Open your web browser and type the IP address of the TW100-BRF114U in the address bar. The default IP address is 192.168.0.1. At the login, enter your username (blank) and password (blank).
  • Page 13 04/03/2006 Q: What is the port name that I use when installing a printer? A: The port name is “L1”, without the quotes and it is case sensitive. Q: How do I install my printer on Windows 95/98/ME? In Windows 98/Me you will need to install the LPR client. For Windows 98/ME you will also need to know the port name that you are printing to (The Port Name is L1.
  • Page 14 04/03/2006 Step 3 Click on Have Disk > Browse. Browse to the location of the extracted LPR Client. Step 4 Click OK 3 times. Step 5 From the list highlight LPR for TCP/IP and click on Properties.
  • Page 15 04/03/2006 Step 6 Click on Add Port...

  • Page 16: Printer Installation

    04/03/2006 In the top field type in the IP address of your router, the default IP address is 192.168.0.1. In the bottom field type in the port name of your router, the Port Name is L1. Step 7 Click on OK. Windows will ask you to restart. Click Yes. LPR is now properly installed on your computer.
  • Page 17 04/03/2006 Select Network Printer and click on Next. Step 3 Click on the Browse button and browse to the router.
  • Page 18 04/03/2006 Highlight the router and click on OK to return to the Add Printer Wizard. Click on Next. If you are unable to do this you can manually enter the router by using two backlashes, the IP address, one backlash and the port name of you printer.
  • Page 19 04/03/2006 Step 4 You will now be asked to select a printer to install. If you cannot find your printer from the list, click on the Have Disk button and browse to the printer drivers for your printer (floppy, CD, or downloaded). Step 5 If you find your printer in the list, click on it and then click on OK.
  • Page 20 04/03/2006 Step 3 Select Create a New Port and select Standard TCP/IP port. Click Next.
  • Page 21 04/03/2006 Step 4 Enter the IP address of the router (192.168.0.1). Leave the port name with the default name. Click Next. Step 5 You will get a message saying that additional port information required. Step 6 Select Custom and then click Settings.
  • Page 22 04/03/2006 Step 7 Set the Protocol to LPR. Step 8 For the LPR Settings for the TW100-BRF114U the Queue Name will be L1. It is case sensitive!
  • Page 23 04/03/2006 Step 9 Select OK > Finish. Step 10 Continue with the Add Printer Wizard. Choose your printer from the list or click Have Disk and point to your printer driver disk.
  • Page 24 04/03/2006...
