Connect Network - RGBlink TAO 1mini-HN Quick Start Manual

Dynamic IP Setting
Step 1: Ensure the switch has access to the network.
Step 2: Connect TAO 1mini-HN and the computer to
the same switch and in the same LAN.
Step 3: Turn on DHCP of TAO 1mini-HN, no
configuration is needed for your computer.
www.rgblink.com

Connect Network

Connecting Network

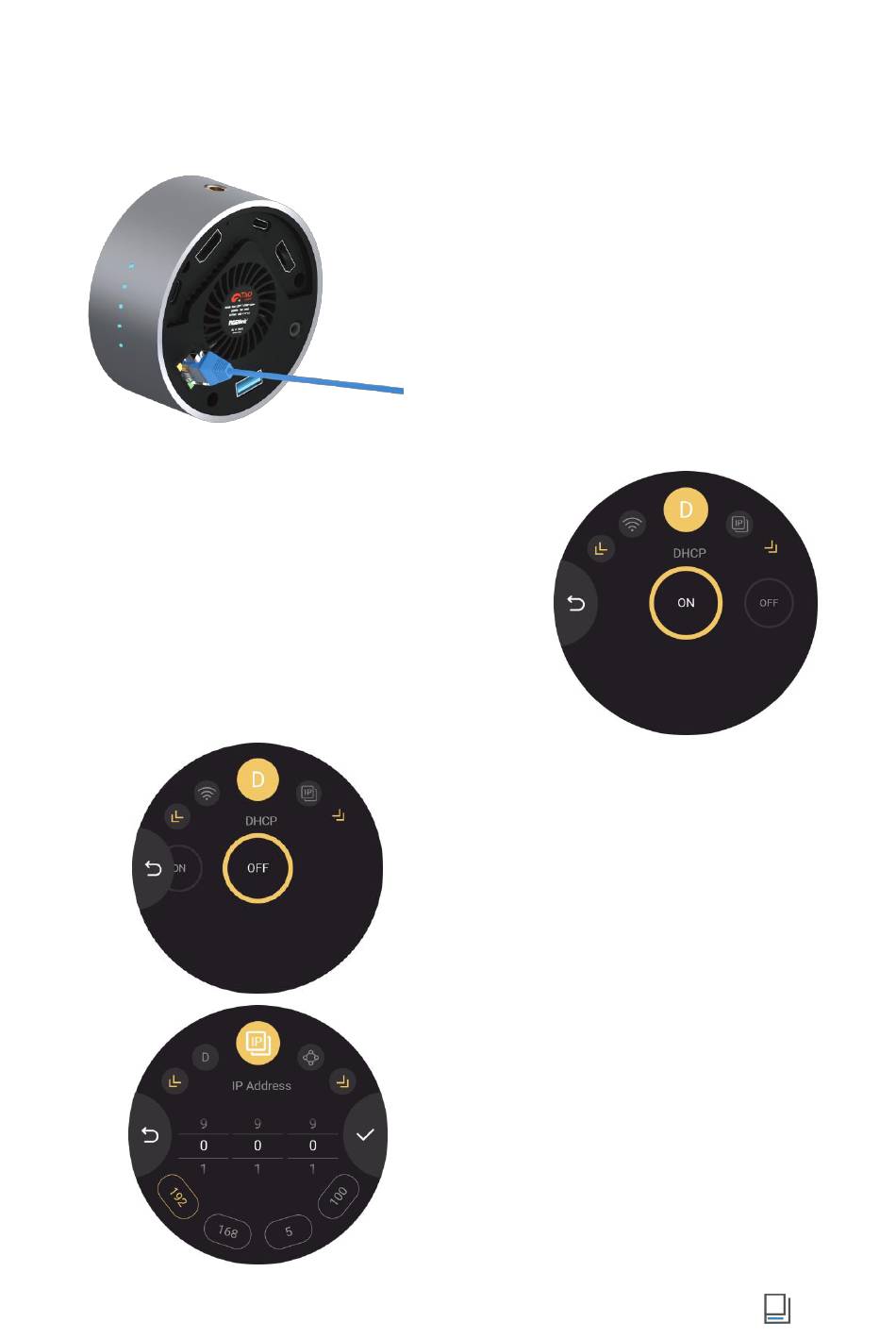

Connect one end of the network cable to LAN port of
TAO 1mini-HN and the other to the switch.
You can also connect directly to the network port of
your computer.
Network Configuration
TAO 1mini-HN and your computer configuration
must be in the same LAN. There are two ways to
configure a network.
Static IP Setting
Step 1: Click Network icon in Settings for TAO
1mini-HN network configuration. Turn off DHCP and
manually configure IP address, net mask and
gateway. The default IP address is 192.168.5.100.
Step 2: Turn off the computer's network and then
configure TAO 1mini-HN and computer to the same
LAN. Please set the IP address of the computer
network port to 192.168.5.*.
Step 3: Please click the buttons on the computer as
follows: "Network and Internet Settings" >
"Network and Sharing Center" > "Ethernet" >
"Internet Protocol Version 4" > "Use the IP address
below", then manually enter the IP address with
192.168.5.*.
4
