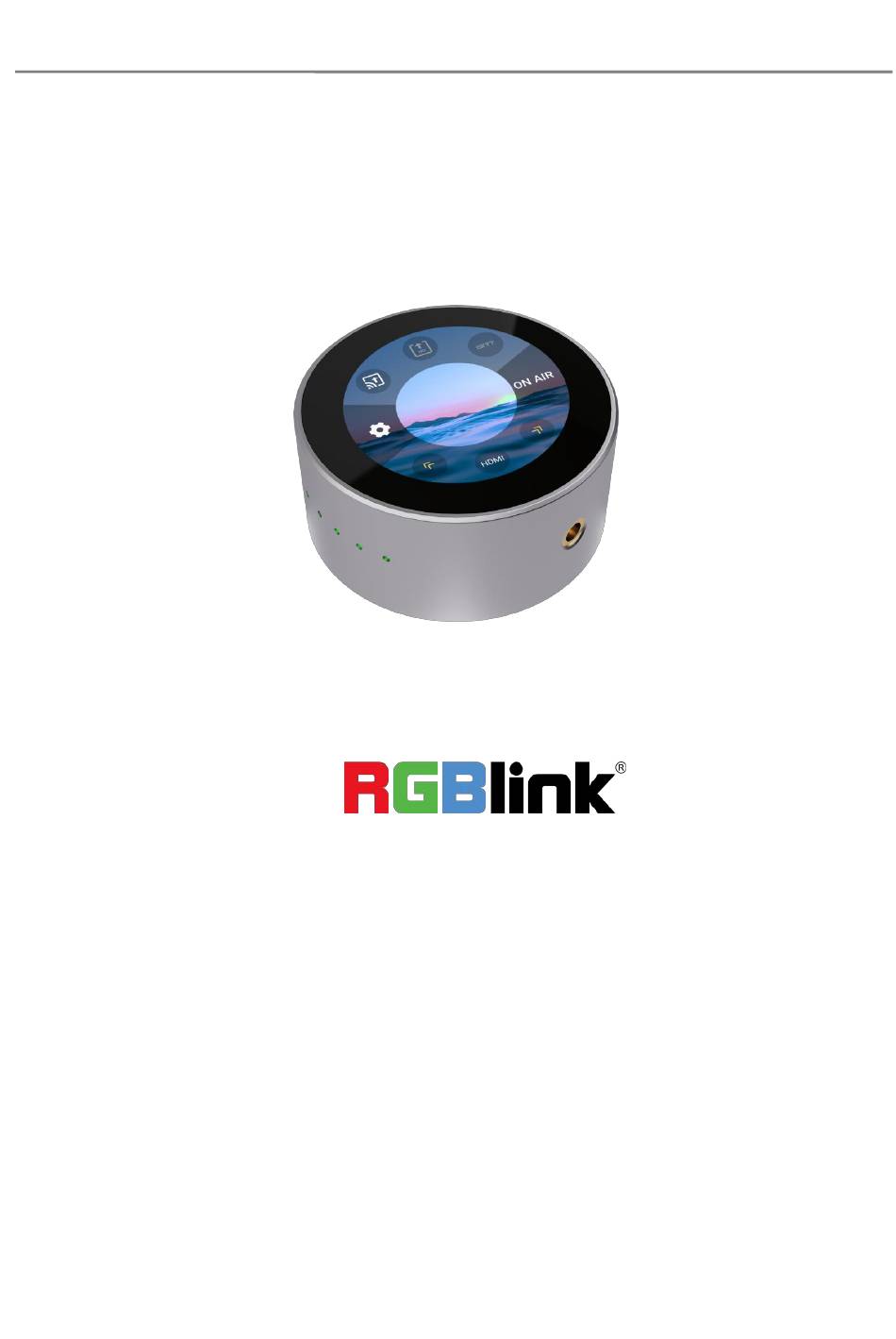

TAO 1mini-HN
Features:
●
Light in weight and small in appearance, easy to carry
●
NDI node for encode and decode
●
Support multiple formats,including RTMP/RTMPS/RTSP/SRT/FULL NDI/NDI
| HX3/NDI | HX2/ NDI | HX
●
Stream to at least 4 platforms at the same time
●
Resolution up to 2K@60
●
Low latency
●
Intuitive touch control and dynamic display
●
Power from USB-C or PoE network
●
Dual ¼in mounts
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAO 1mini-HN and is the answer not in the manual?

Questions and answers

Related Manuals for RGBlink TAO 1mini-HN

Summary of Contents for RGBlink TAO 1mini-HN

  • Page 1 TAO 1mini-HN Quick Start Features: ● Light in weight and small in appearance, easy to carry ● NDI node for encode and decode ● Support multiple formats,including RTMP/RTMPS/RTSP/SRT/FULL NDI/NDI | HX3/NDI | HX2/ NDI | HX ● Stream to at least 4 platforms at the same time ●...

  • Page 2: Table Of Contents

    Fan Control ..............................15 Display ................................16 About TAO 1mini-HN ............................ 16 ON AIR ...................................17 Status Display Area ............................... 18 Contact Information ..............................19 © Xiamen RGBlink Science & Technology Co., Ltd. 1 / 20 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 3: Overview

    Ethernet video stream codecs for encoding and decoding. TAO 1mini-HN features light in weight and small in appearance, which makes it easy to carry. Standard camera screw holes can be easily installed to the camera bracket. The device has a 2.1-inch TFT touch screen for real-time monitoring of signals and menu operations.

  • Page 4: About Your Product

    About Your Product Appearance Description Item 2.1-inch TFT touch screen for real-time monitoring of signals Touch Screen and menu operations. For installation. ¼in mounts © Xiamen RGBlink Science & Technology Co., Ltd. 3 / 20 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 5: Connectors

    For analog audio input and audio output monitoring. Socket Connect to harddisk for recording, and storage up to 2T. USB 3.0 , support PoE. Gigabit network port © Xiamen RGBlink Science & Technology Co., Ltd. 4 / 20 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 6: Dimension

    Dimension Following is the dimension of TAO 1mini-HN for your reference: 91mm(diameter)×40.8mm(height) © Xiamen RGBlink Science & Technology Co., Ltd. 5 / 20 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 7: Use Your Product

    Connect your TAO 1mini-HN with the packaged USB-C power link cable and standard power adapter. Besides, TAO 1mini-HN also support power over Ethernet. After TAO 1mini-HN is powered on, 2.1 inch screen will show TAO 1mini logo and then come into the main menu.

  • Page 8: Input Area

    Long press the UVC icon to adjust Brightness and Mirror. Brightness: 0-14 Mirror: ON/OFF Notice: The above settings are designed for UVC input signal ONLY. © Xiamen RGBlink Science & Technology Co., Ltd. 7 / 20 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 9: Ndi Decoding

    Click yellow arrows to select RTMP Pull icon. Long press the icon to enter the following interface. Click the icon for installation. Turn on Bluetooth to pair TAO 1mini-HN with your mobile phone, (For more details, please refer to Bluetooth), so that you can import RTMP stream-address via TAO APP.

  • Page 10: Play Video In U Disk

    Play Video in U Disk Insert U disk to USB 3.0 port of TAO 1mini-HN to play the video stored. Users can choose different videos by wiping the screen and click icon on the left to switch video-playing mode. ：Single Play ：Random Play；...

  • Page 11: Output Area

    Users can operate two functions in Output Area RTMP Push Long press the RTMP Push icon in output area to check the RTMP stream address of TAO 1mini-HN. TAO 1mini-HN supports RTMP stream address modification. Users can download TAO APP to import new stream address.

  • Page 12: Ndi Encoding

    Click NDI Encoding icon in output area to turn on NDI Encoding function and long press the icon to choose encoding format (NDI | HX by default), set resolution, bitrate and check channel name. © Xiamen RGBlink Science & Technology Co., Ltd. 11 / 20 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 13: Settings

    Click Settings on the left to operate more functions, including Go to Homepage, Input Settings, Output Settings, Network, Bluetooth, Fan Speed, Display and Device Info. Go to Homepage Click to return to the main interface of TAO 1mini-HN. Input Settings Click to enter to operate five functions, including RTMP Pull, NDI Decoding, UVC Input Settings, Video Playing and Audio Settings.

  • Page 14: Output Settings

    RTMP Push and NDI Encoding have been introduced in Output Area already. Therefore, please refer to the previous chapter. For USB Recording, TAO 1mini-HN can be used as a recorder. Users can set resolution, bitrate and check disk info. © Xiamen RGBlink Science & Technology Co., Ltd.

  • Page 15: Network

    Click network icon to turn on DHCP for automatic capture of IP address, netmask and gatewayset or set IP address, netmask and gateway manually. © Xiamen RGBlink Science & Technology Co., Ltd. 14 / 20 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 16: Bluetooth

    Bluetooth Click Bluetooth icon to turn on Bluetooth for pairing TAO 1mini-HN with TAO APP installed in your mobile phone, so that users can import new stream address. Notice: 1. Make sure the distance between TAO 1mini-HN and mobile phone is within 2m.

  • Page 17: Display

    Display Click Display icon to adjust brightness and display mode. About TAO 1mini-HN Click Information icon to check device information, set language, upgrade TAO 1mini-HN and choose factory reset. Notice: 1. Keep TAO 1mini-HN plugged in during upgrading. 2. Make sure file for upgrade is valid on the USB disk.

  • Page 18: On Air

    ON AIR If operations for RTMP Push are successful, then click ON AIR in the main interface and TAO 1mini-HN will start streaming. When TAO 1mini-HN recognizes the USB flash drive, it will start recording. User can do the following operations: 1: Hide the setting options by clicking the blank screen.

  • Page 19: Status Display Area

    Status Display Area he left area of interface displays the status of the TAO 1mini-HN. no network input no USB Bluetooth not connected with network USB inserted Bluetooth input connected © Xiamen RGBlink Science & Technology Co., Ltd. 18 / 20 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 20: Contact Information

    All products are designed and tested to the highest quality standard and backed by 1 year parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
