Page 2: Table Of Contents
Content Packing List ........................3 About Your Product ....................... 4 Product Overview ....................4 Key Features ......................4 Appearance ......................5 Interface ........................6 Dimension ........................7 Device Installation and Connection ................8 Connect Video Signal ....................8 Connect Power Supply .................... 8 Connect Network ....................9 Network Configuration ....................9 Use Your Product ...................... -
Page 3: Packing List
Packing List TAO 1mini-HN Power Adapter USB-C Cable Storage Box Double-thread 1/4 Screw... -
Page 4: About Your Product

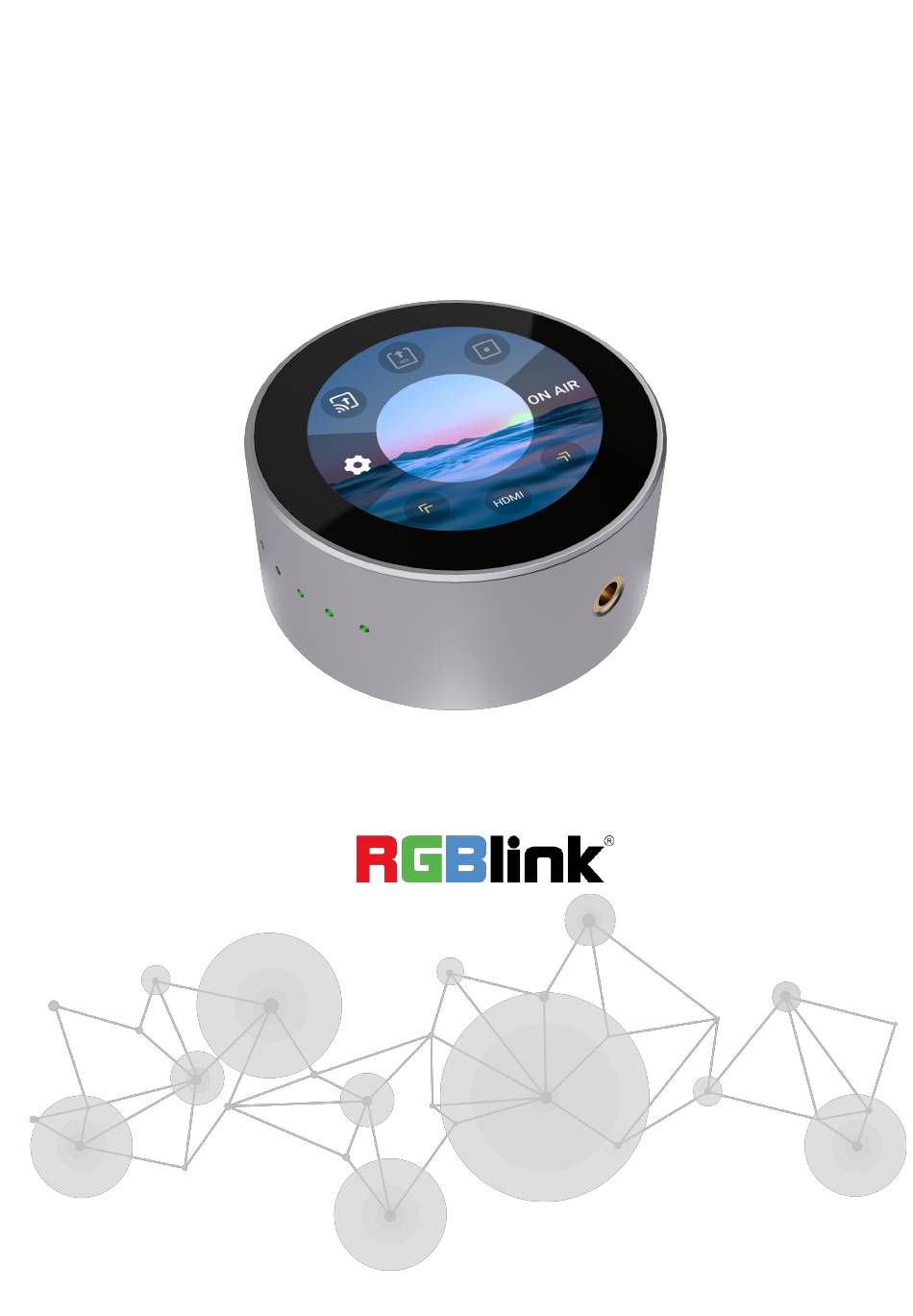

Ethernet video stream codecs for encoding and decoding. TAO 1mini-HN is small and compact, which makes it easy to carry. Standard camera screw holes are provided for camera mounting. The device has a 2.1-inch touch screen for real-time monitoring of signals and menu operations. -
Page 5: Appearance
Appearance Item Description 2.1-inch touch screen for real-time monitoring of Touch Screen signals and menu operations. ¼in Mounts For mounting. Tally Lamp Work indicators show device status. -
Page 6: Interface
Interface Connectors Description USB-C Connect to the power supply, support PD protocol. Connect to external monitor for real-time monitoring of HDMI-OUT inputs and outputs. For receiving video signal from your phone or others. USB-C Connect to USB camera for UVC capture. Support 5V/1A reverse power supply. -
Page 7: Dimension
Dimension Following is the dimension of TAO 1mini-HN for your reference: 91mm(diameter)×40.8mm(height). Bottom View Right View Front View Rear View... -
Page 8: Device Installation And Connection
TAO 1mini-HN also supports power from PoE network. Connect the power and video input source correctly, power on the device, and the 2.1 inch screen will show TAO 1mini-HN logo and then come into the main menu. Notice：... -
Page 9: Connect Network
Connect Network Connect one end of the network cable to LAN port of TAO 1mini-HN. The other end of the network cable is connected to the switch. You can also connect directly to the network port of your computer. Network Configuration TAO 1mini-HN and your computer configuration must be in the same LAN. - Page 10 Turn off DHCP and manually configure IP address, net mask and gateway. The default IP address is 192.168.5.100. Step 2: Turn off the computer's network an then configure TAO 1mini-HN and computer to the same LAN. Please set the IP address of the computer network port to 192.168.5.*.
-
Page 11: Use Your Product
Use Your Product After completing the above steps in Device Installation and Connection, you can use TAO 1mini-HN for following operations. NDI Encoding Users can refer to the following diagram for application of NDI encoding. NDI Encoding Connection Diagram Input Signal Selection... - Page 12 Open NewTek Studio Monitor software and then click the icon in the upper left corner to display the list of device names that have been discovered. Select the device you want to connect, and then you can pull the current video stream of TAO 1mini-HN.
-
Page 13: Ndi Decoding
NDI Decoding Connection Diagram You can configure network of other device (Support NDI decoding function ) and TAO 1mini-HN to the same LAN. Then click Search to find the NDI sources in the same LAN. Tap yellow arrows to select NDI Decoding icon. Long press the icon to... -
Page 14: Rtmp Push
RTSP/RTMP/SRT stream address of TAO 1mini-HN, shown as below. Users can modify IP address of TAO 1mini-HN in Network Settings and then the RTMP/RTSP/SRT stream address will be modified synchronously. Users can also click Edit Icon at the bottom to set the Resolution, Bitrate... -
Page 15: On Air
ON AIR Click ON AIR and TAO 1mini-HN will start streaming. Following steps take YouTube stream as the example. Two methods for you to choose from. The first method is to operate RTMP Push via USB disk. Step 1: Make sure the device is connected and the network is set up. - Page 16 Step 4: Press and hold the streaming settings, you can see the links of the platforms identified by TAO 1mini-HN after entering the settings, select the links of the live stream platforms you need, tap Next. Once the parameters are set, go back to the home screen and click ON AIR.
- Page 17 Step 4: Take following steps to turn on Bluetooth of TAO 1mini-HN. Notice: 1. Make sure the distance between TAO 1mini-HN and mobile phone is within 2m. 2. Pair TAO 1mini-HN with TAO APP within 300s. Step 5: Turn on Bluetooth of TAO APP. Then TAO 1mini-HN will be recognized, shown as below.
- Page 18 QR code created in Step 1. Step 7: The RTMP address will be shown in the box, then click Send RTMP. Step 8: Then TAO 1mini-HN will pop up a message, shown as below. Click YES to receive RTMP stream address.
- Page 19 Then choose the platform you need. The saved platforms are displayed at the top of the interface, and the newly added platforms are displayed at the bottom. The green circle indicates the platform been chosen. Long press the icon to check stream address and click Edit in the middle for deletion of platform.
- Page 20 Finally, click [ON AIR] in the main interface to stream ( Support up to 4 live streaming platforms at the same time). Click the blank area of the home page. The left area of interface is the Status Display Area, which displays the status of the TAO 1mini-HN. no network input no U disk...
-
Page 21: Rtmp Pull
Tap yellow arrows to select RTMP Pull icon. Long press the icon to enter the following interface. Click the icon for TAO APP installation. Turn on Bluetooth in Settings to pair TAO 1mini-HN with your mobile phone so as to import RTMP stream address via TAO APP. -
Page 22: Record
Record Plug U disk to TAO 1mini-HN USB port and TAO 1mini-HN can work as a recorder. The storage of U disk is up to 2T. Users can set resolution, bitrate and check disk info in Settings. Note: During video synchronization, do not unplug the USB flash disk. -
Page 23: Contact Information
All products are designed and tested to the highest quality standard and backed by 1 year parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs...
