Related Manuals for ELCOS CEP-337
Summary of Contents for ELCOS CEP-337
- Page 1 Курган (3522)50-90-47 Псков (8112)59-10-37 Сыктывкар (8212)25-95-17 Якутск (4112)23-90-97 Екатеринбург (343)384-55-89 Липецк (4742)52-20-81 Тамбов (4752)50-40-97 Ярославль (4852)69-52-93 Россия +7(495)268-04-70 Казахстан +7(7172)727-132 Киргизия +996(312)96-26-47 www.elkos.nt-rt.ru || eow@nt-rt.ru Технические характеристики на блоки управления и защиты дизельных двигателей, приборные панели CEP-337, DIP-337, CEP-090 компании ELCOS...
- Page 2 ENGINE PROTECTION AND CONTROL UNIT DIP-337 Performs control and protection functions for a diesel engine. Connect the protection and control unit to an external starter key. Enables manual adjustment of the engine rpm and stopping if a fault occurs. USER’S MANUAL...
- Page 3 IP 54 Container Weight 480g Dimensions (LxHxD) 157x109x74mm Perforations 137x88mm Material PC/ABS V0 Terminals Screw Max. section 2.5mm Installation Wall-mounted Thread Nuts Tightening torque 1.0 ÷ 1.5 Nm ______________________________________________________________________________________________________ ELCOS – Parma – Italy DIP-337 Rev. 2.02 Page 39 of 41...
- Page 4 Item Code AST-015/00 Rod electrode, including accessories 40241012 E-25 Screw electrodes, including accessories 40190115 VAR-201 12V Linear actuators 00571547 VAR-201 24V Linear actuators 00571548 ZW-SMART Programming software 00070212 ______________________________________________________________________________________________________ ELCOS – Parma – Italy DIP-337 Rev. 2.02 Page 41 of 41...
- Page 5 ENGINE PROTECTION AND CONTROL UNIT CEP-337 Performs control and protection functions for a diesel engine. Enables starting and stopping by key. INSTALLATION MANUAL Complete with: Control unit for diesel engine type DIP-337. • • Starting Key. On-board machine installation.
- Page 6 RUNNING_LED .......Running engine detected by the control unit. SCR_LED ........Indicates SCR system faults. DPF_LED ........Indicates DPF system faults. MIL_LED ........Indicates an engine derate due to a problem with the SCR or DPF. ________________________________________________________________________________________________________ ELCOS – Parma – Italy CEP-337 EN Rev. 1.00 Pag. 2 di 10...
- Page 7 Storage temperature -20 ÷ 60°C Relative humidity ≤ 80% Protection class Back IP 20 Front IP 54 Container Weight 2300g Dimensions (LxHxD) 270x230x185mm Material ABS V0 ________________________________________________________________________________________________________ ELCOS – Parma – Italy CEP-337 EN Rev. 1.00 Pag. 7 di 10...
- Page 8 ACCESSORIES AVAILABLE ON REQUEST Type Item Code AST-015/00 Rod electrode, including accessories 40241012 E-25 Screw electrodes, including accessories 40190115 VAR-201 12V Linear actuators 00571547 VAR-201 24V Linear actuators 00571548 ________________________________________________________________________________________________________ ELCOS – Parma – Italy CEP-337 EN Rev. 1.00 Pag. 10 di 10...

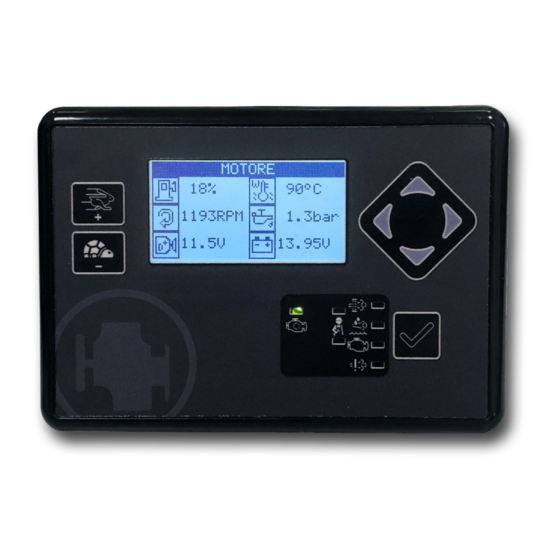

- Page 9 CONTROL UNITS FOR ENGINE CONTROL AND PROTECTION TYPE CEP-090 It is equipped with display to show the INSTRUMENTS: - hour-meter - fuel level indicator - tachometer - battery voltmeter • Automatic supervision of faults with messages on the display • Texts in 6 languages: Italian, English, French, German, Spanish and Portuguese •...
-
Page 10: Brief Instructions
Max. load of the output: • stopping (yellow) • general alarm (red/green) • preheating (blue/orange) • starting (black) Degree of protection: Box front IP54 Rear IP23 Connector IP20 Temperature range -20 ÷ +60°C Weight 950 g ELCOS SRL - Parma - EN - CEP-090... -
Page 11: Ordering Data
ORDERING DATA Type CEP-090 cod. 00210721 ACCESSORIES KIT Pre- wired female type CEP-090 cod. 70804336 rods CEP-CEM cod. 40804362 ACCESSORIES ON REQUEST SUPPORT FOR INSTALLATION ON BASE CRU-003 CODE 40493384 Алматы (7273)495-231 Иваново (4932)77-34-06 Магнитогорск (3519)55-03-13 Пермь (342)205-81-47 Тверь (4822)63-31-35 Ангарск...
