CONTROL UNITS FOR ENGINE CONTROL AND PROTECTION
•
Automatic supervision of faults with messages on the display
•
Texts in 6 languages: Italian, English, French, German, Spanish and
Portuguese
•
Preheating glow plugs management
182
Ø6,5
ELCOS SRL - Parma - EN - CEP-090
TYPE CEP-090
DIMENSIONS
Fixing system
With two or
On request
three
with vibration
clamps
dampers fitted
on the top
part of the
control unit

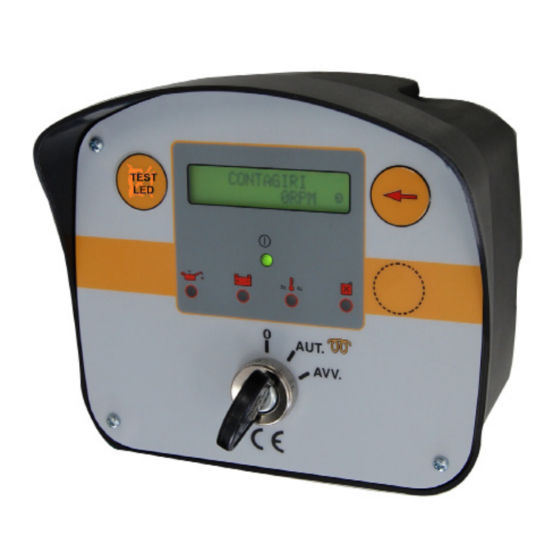

It is equipped with display
to show the
INSTRUMENTS:
- hour-meter
- fuel level indicator
- tachometer
- battery voltmeter
85,50
33
}
135,50
96
1
Advertisement
Table of Contents
Related Manuals for ELCOS CEP-090
Summary of Contents for ELCOS CEP-090

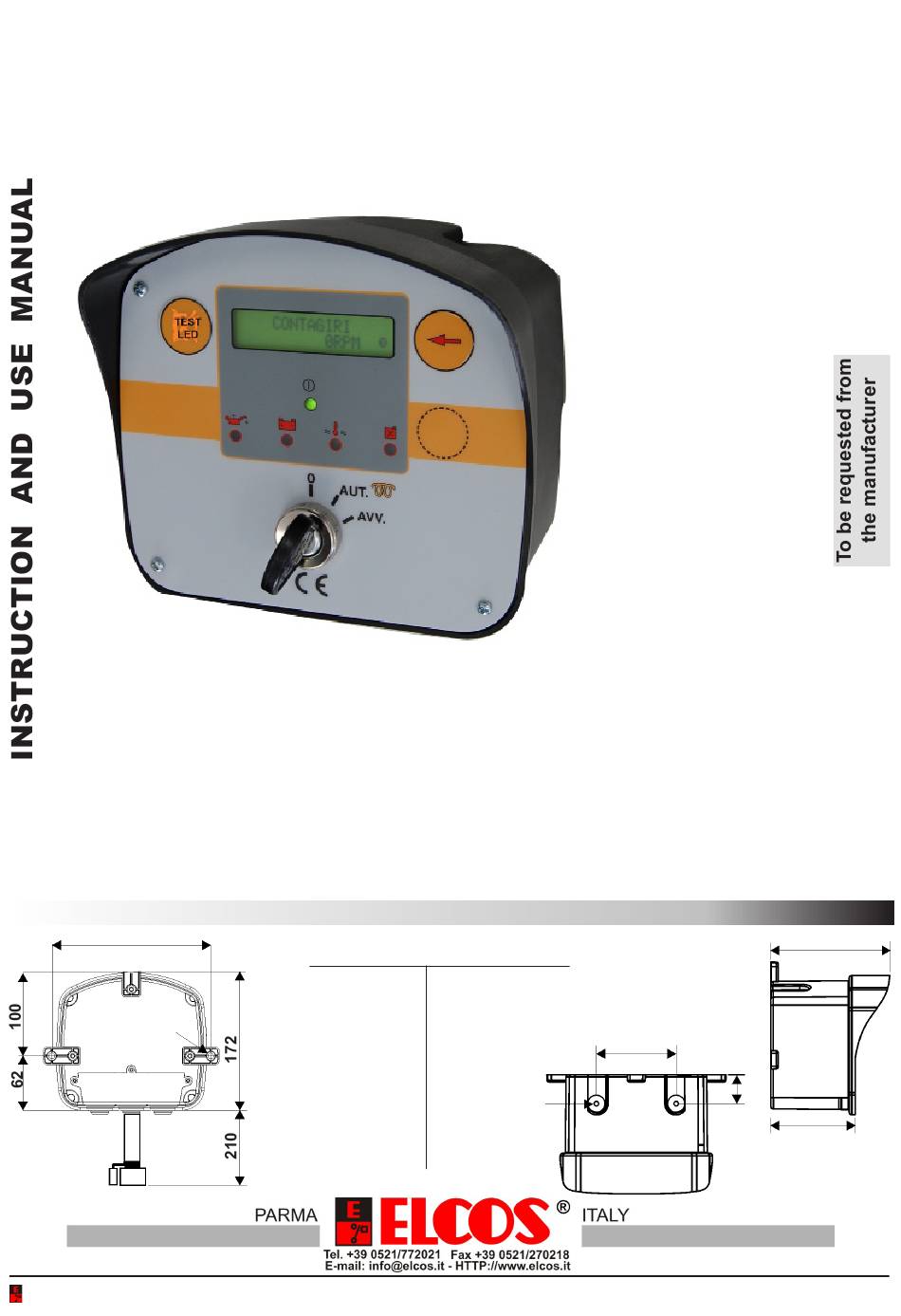

- Page 1 It is equipped with display to show the INSTRUMENTS: - hour-meter - fuel level indicator - tachometer - battery voltmeter • Automatic supervision of faults with messages on the display • Texts in 6 languages: Italian, English, French, German, Spanish and Portuguese • Preheating glow plugs management DIMENSIONS 135,50 Fixing system With two or On request three with vibration Ø6,5 clamps dampers fitted 85,50 on the top part of the control unit ELCOS SRL - Parma - EN - CEP-090...
- Page 2 (hours and minutes). • FUEL LEVEL GAUGE Displays the percentage of fuel present in the tank • BATTERY VOLTMETER For voltages ranging between 9 and 38 Volt. TECHNICAL DATA 12 Vdc 24 Vdc Battery voltage supply Voltage supply 8 ÷ 32V Circuit loading with key at zero 2,5mA a 12V 2mA a 24V Maximum Consumption 230 mA a 12V 180 mA a 24V Tachometer Max 4000 RPM precision ± 10 RPM Instruments precision: battery voltmeter, fuel level Max. load of the output: • stopping (yellow) • general alarm (red/green) • preheating (blue/orange) • starting (black) Degree of protection: Box front IP54 Rear IP23 Connector IP20 Temperature range -20 ÷ +60°C Weight 950 g ELCOS SRL - Parma - EN - CEP-090...
- Page 3 The control unit shuts down the engine in two ways: turning the start key to zero. protection intervention. The unit adapts to two different stop system: by working the electromagnet for 20 seconds which pulls the stop lever. by cutting off power to the solenoid valve shutting off the flow of fuel. EMERGENCY STOP It can be obtained in all functioning conditions, mounting one or more release-type but- tons, is indicated on the display. EMERGENCY On the display it’s reported . STOP GENERAL ALARM This can be obtained by externally installing an optical indicator and/or buzzer to be connected to the relevant output. Activated continuously if the protection devices or the fuel reserve alarm intervene. SILENCING THE AUDIBLE ALARM Hold down button GLOW PLUGS PREHEATING FACTORY-EXCLUDED Activated with key in AUT the display shows the phrase . GLOW PLUGS PREHEATING The duration of the preheating action can be set. START THE Is indicated on the display when the action has ceased . ENGINE ELCOS SRL - Parma - EN - CEP-090...
- Page 4 ENGLISH ITALIANO CHOICE Press and wait for Press to select language PROGRAMMED to be written Bring the engine to idle at constant known speed for example via a portable tachometer. example TACHOMETER 1500 RPM 1500 RPM ADJUSTMENT Press and wait for OK to be written. Press until you get the right indication on the display ELCOS SRL - Parma - EN - CEP-090...
- Page 5 + BATTERY (26/28) PERMANENT MAGNETS CHARGE ALTERNATOR OR PRE-EXCITATION GREEN (27) BATTERY CHARGE ALTERNATOR REGULATOR BROWN (40) STARTING MOTOR (41) BATTERY (106) GLOW PLUGS PREHEATING ELECTROMAGNET (EXCITED (157) GENERAL ALARM LIGHT IN STOP MODE): to activate the STOP SYSTEM SET UP engine stop lever. The unit has been designed to control SOLENOID (EXCITED IN stopping with an SOLENOID VALVE. DRIVE): to close the fuel. ELCOS SRL - Parma - EN - CEP-090...
- Page 6 NOTES ELCOS SRL - Parma - EN - CEP-090...
- Page 7 - Where the environmental temperature is outside the limits indicated in the Technical Data. - Where the air pressure and temperature variations are so rapid as to produce exceptional condensation. - Where there are high levels of pollution caused by dust, smoke, vapour, salts and corrosive or radioactive particles. - Where there are high levels or heat from radiation caused by the sun, ovens or the like. - Where attacks from mould or small animals are possible. - Where there is the risk of fire or explosions. - Where the control unit can receive strong vibrations or knocks. ELECTROMAGNETIC COMPATIBILITY This control unit functions correctly only if inserted in plants which conform with the CE marking standards; it meets the exemption requirements of the standard EN61326-1 but it cannot be excluded that malfun- ctions could occur in extreme cases due to particular situations. The installer has the task of checking that the disturbance levels are within the requirements of the standards. CONDUCTION AND MAINTENANCE The following maintenance operations should be performed every week: - check that the indicators function; - check the batteries; - check that the conductors are tight, check the condition of the terminals. UNLESS WE MAKE A WRITTEN DECLARATION STATING THE CONTRARY, THIS CONTROL UNIT IS NOT SUITABLE FOR USE AS A CRITICAL COMPONENT IN EQUIPMENT OR PLANTS RESPONSIBLE FOR KEEPING PERSONS OR OTHER LIVING BEINGS ALIVE. YOUR ELECTRICAL TECHNICIAN CAN ASK US ANYTHING ABOUT THIS CONTROL UNIT BY TELEPHONING ONE OF OUR TECHNICIANS ELCOS SRL - Parma - EN - CEP-090...
- Page 8 ORDERING DATA Type CEP-090 cod. 00210721 ACCESSORIES KIT Pre- wired female type CEP-090 cod. 70804336 rods CEP-CEM cod. 40804362 CONFORMITY DECLARATION The company Elcos s.r.l. assumes full responsibility for declaring that control unit: CEP-090 type installed and used in the ways and for the purposes described in the user instruction manual complies with the essential requirements and other relevant provisions laid down by the following directives: - 2014/30/UE on the harmonisation of the laws of the Member States relating to electromagnetic compatibility, - 2011/65/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment, because it is built and functions in accordance with the harmonized Standards: EN61326-1, EN61000-4-2, EN61000-4-4, EN61000-4-6, EN60529 Parma, 23/05/2016 President ELCOS SRL - Parma - EN - CEP-090...
