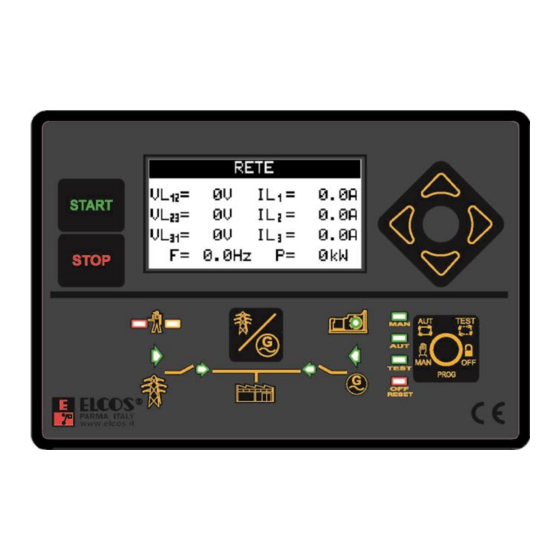

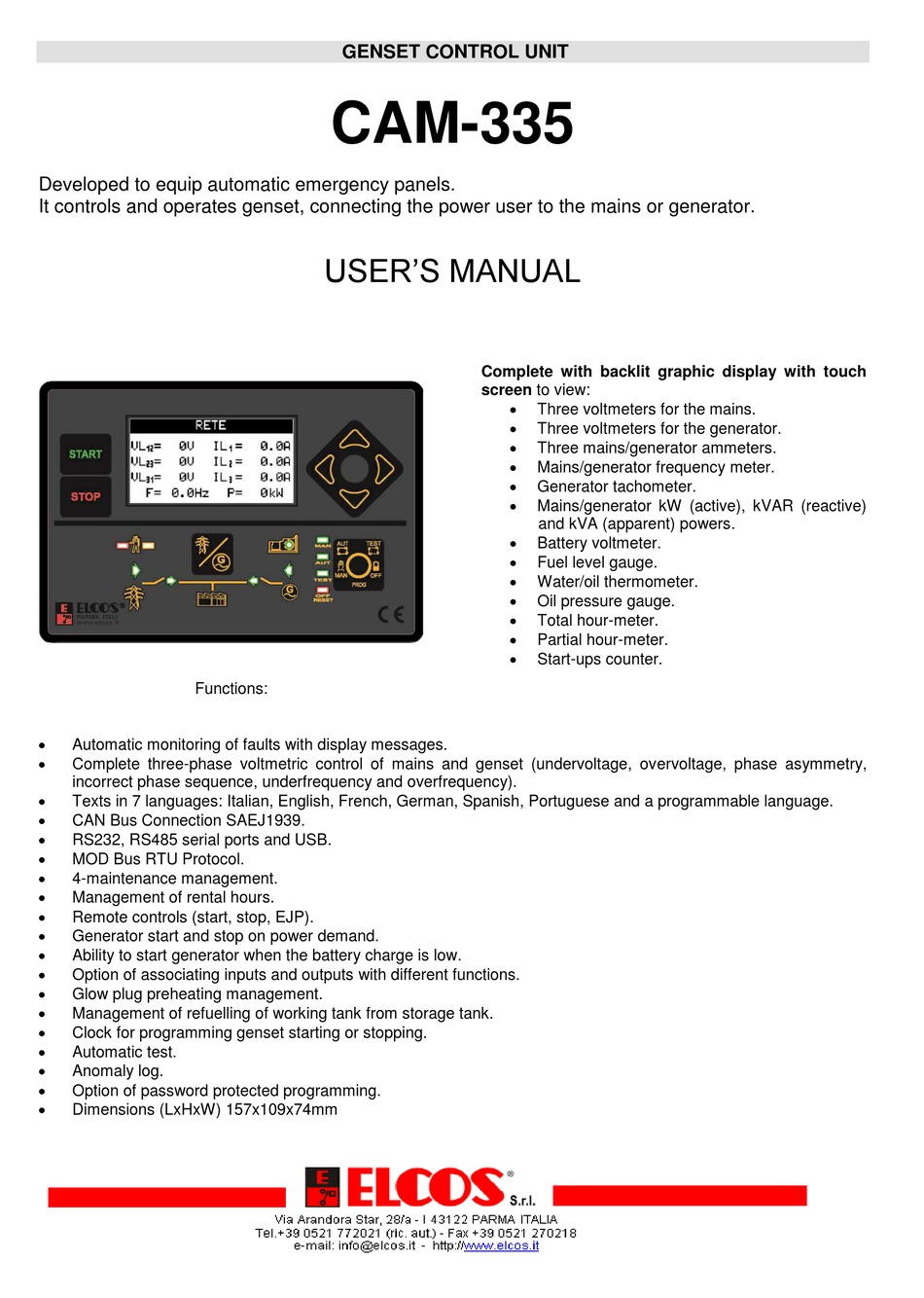

ELCOS CAM-335 User Manual

Developed to equip automatic emergency panels.
It controls and operates genset, connecting the power user to the mains or generator.
Functions:

Automatic monitoring of faults with display messages.

Complete three-phase voltmetric control of mains and genset (undervoltage, overvoltage, phase asymmetry,
incorrect phase sequence, underfrequency and overfrequency).

Texts in 7 languages: Italian, English, French, German, Spanish, Portuguese and a programmable language.

CAN Bus Connection SAEJ1939.

RS232, RS485 serial ports and USB.

MOD Bus RTU Protocol.

4-maintenance management.

Management of rental hours.

Remote controls (start, stop, EJP).

Generator start and stop on power demand.

Ability to start generator when the battery charge is low.

Option of associating inputs and outputs with different functions.

Glow plug preheating management.

Management of refuelling of working tank from storage tank.

Clock for programming genset starting or stopping.

Automatic test.

Anomaly log.

Option of password protected programming.

Dimensions (LxHxW) 157x109x74mm
GENSET CONTROL UNIT
CAM-335
USER'S MANUAL
Complete with backlit graphic display with touch
screen to view:

Three voltmeters for the mains.

Three voltmeters for the generator.

Three mains/generator ammeters.

Mains/generator frequency meter.

Generator tachometer.

Mains/generator kW (active), kVAR (reactive)
and kVA (apparent) powers.

Battery voltmeter.

Fuel level gauge.

Water/oil thermometer.

Oil pressure gauge.

Total hour-meter.

Partial hour-meter.

Start-ups counter.
