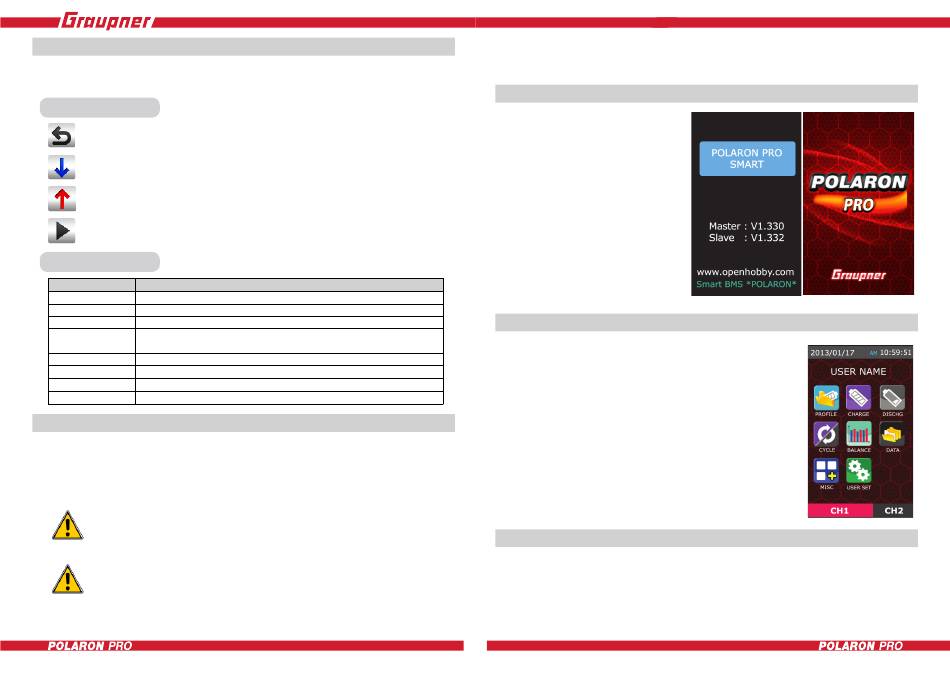

◎ MENU CONFIGURATION

Graupner POLARON Series chargers are equipped with a highly sensitive touch screen. Touch
the icons to access every mode and set up your device.

ACTION BUTTONS

- ESC button: Return to the previous page, store the setup data, etc.
- DEC button: Page transition, data setup, etc.
- INC button: Page transition, data setup, etc.
- ENTER button: Go to the next page, Complete the data setup,
Start / complete the operation, store the setup data, etc.

MENU DESCRIPTION

Main page

Function
PROFILE
Battery name, type, capacity, number of cells, memory number, memory copy
CHARGE
Setup the battery charge data
DISCHG
Setup the battery discharge data
Setup cycle type and delay the time of charge / discharge
CYCLE
( using the charge / discharge setup data )
BALANCE
Display the cell voltage and related data. Setup the balance data
DATA
Display the completed data and battery status
MISC
Setup servo, motor and warmer data, E.S.C setting
USER SET
Setup input data, warning, date, time, user name and etc.

◎ BATTERY CONNECTION

POLARON PRO 2CH DC chargers have two sets of outputs on the front of the charger. Channel 1 is on
the left. Channel 2 is on the right. Each channel has two 4mm banana sockets with a 7 cell balance port
and a temperature sensor input port. An appropriate charge lead must be selected to match the specific
connector on your battery. The charge leads must be connected to the 4mm output sockets on the spe-
cific charger channel, with the positive (+) lead connected to the red socket and the negative (-) lead
connected to the black socket.
Only connect the battery to the charge lead AFTER the charge lead has been connected
to the charger, as the connectors on the charge lead could touch together and cause the
battery to short circuit.
During the charging of a Lithium pack, the balance lead MUST be connected to the charger. The
charger has a 'JST-EH' type balance port, but also comes with other balance adaptor boards.
To use an adaptor board, connect the supplied balance adaptor board lead to the charger. Then,
connect the board using the appropriate battery balance connector. This balancing connector is
essential. Without connecting the balancing connector to the balancing port on the charger (i.e., the
main battery power leads ONLY are connected to the output banana sockets), the charger will charge
or discharge the connected Lithium pack without balancing it. Balancing a Lithium pack is highly
recommended. As some cells may retain more
11
capacity than other cells, over time, the pack can become unbalanced. For an unbalanced pack, some
of the cells can exceed the maximum voltage during the charging process, with other cells falling below
the minimum voltage during discharge processes. Both circumstances can cause damage to the cells. For
an overcharged Lithium cell, damage can occur, with extreme conditions resulting in a fire.

◎ INPUT POWER SETUP

This charger has a capacity of 40 memories
(CH1 20 /CH2 20). Each battery can be con-
figured with the basic programming setup to
manage the batteries efficiently. The charger
should be connected to the docking SMPS
or a suitable 11-28V DC power source, with
the black lead connecting to the negative (-)
and the red lead connecting with the positive
(+) input voltage. The CH1 could be config-
ured by max 260W for 12V and max 500W for
24V. The current can be programmed during
the USER SET (ref. page 30) process.This
charger will control the output automatically,
depending on the power input source.
◎ MAIN PAGE
- The channel numbers (accessed using the bottom boxes)
can be used to select the channel. The main page of the
selected channel in shown in red. Tapping the link to the
other channel box will select for the other channel.
- The date and time are displayed on the top of the main
page. This data can be programmed during the USER SET
process.
- The links displayed on the main page can be accessed
by tapping the images. Activated icons turn to a dark gray
and the charger emits a beeping tone.

◎ PROFILE PAGE

The profile page is the main functional page for this charger. This page can be used to set
up the battery name, battery type, capacity, number of cells and the memory number, as well
as being used to initiate the charging, discharging, cycling and balancing mode functions.
The related functions for the charge and discharge processes are operated according to the
stored data of the charging, discharging, cycling and balancing modes.
Power on
