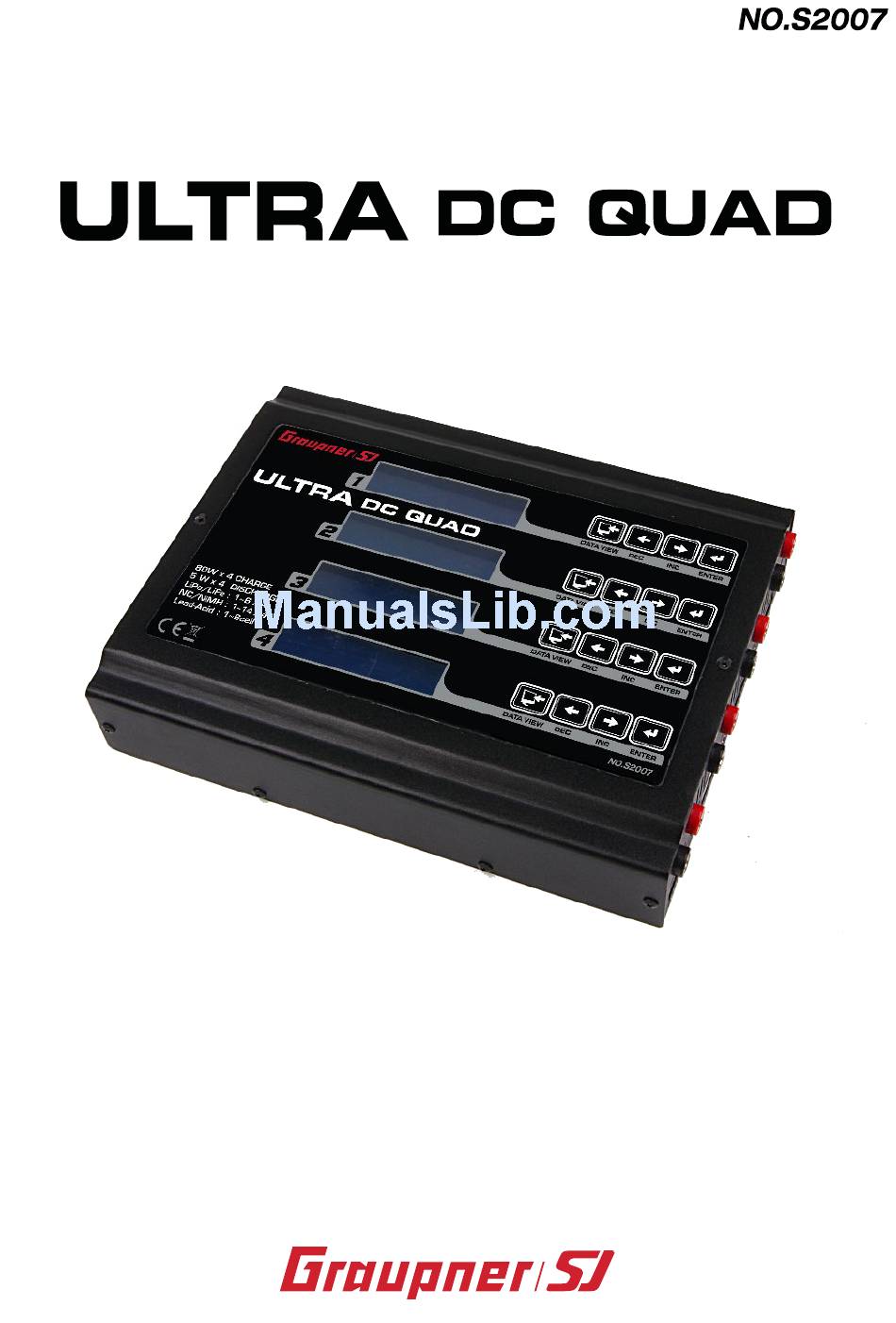

- Page 1 OPERATING INSTRUCTION Prior to use, please read this manual thoroughly. Keep this manual in a convenient place for quick and easy reference.
-
Page 2: Table Of Contents
Contents • BEFORE USE • SUPPROT AND SERVICE Customer support Internet sales site A/S regulation Warranty regulation • OPENHOBBY A/S CENTER • SAFETY PRECAUTIONS • BOX CONTENTS • SPECIFICATION • FEATURES • CHARGER CONTROL IDENTIFICATION • POWER SOURCE • BATTERY CONNECTION •... -
Page 3: Before Use
If you have any difficulties while using your system, please consult the manual, our online Frequently Asked Questions (on the web pages referenced below), your hobby dealer, or the Graupner/SJ Service Center. Due to unforeseen changes in production procedures, the information contained in this manual is subject to change without notice. -
Page 4: Safety Precautions
◎ SAFETY PRECAUTIONS 1. Do not attempt to charge incompatible types of rechargeable batteries. This charger is designed to only charge and discharge Nickel Cadmium, Nickel Metal Hydride, Lithium Ion, Lithium Polymer, and Lead Acid batteries. 2. Do not attempt to charge a dead or damaged battery. 3. -
Page 5: Specification 5P
◎ SPECIFICATION Input Voltage DC 11.0 - 15.0V Battery Type & Cell 1-14Cells(NiCd/NiMH) 1-6Cells(LiPo/LiIon/LiFe) 1-6Cells(Pb batt)/4CH 100mAh ~ 9900mAh NiCd NiMH Battery Capacity 100mAh ~ 50000mAh adjustable ONLY for Lilon, LiPo and LiFe Charge Current 0.1A - 7A in 100mA steps(Max 80W) / 4CH Discharge Current 0.1A - 1.0A in 100mA steps (auto limited to 5W maximum) / 4CH Trickle Charge... -
Page 6: Charger Control Identification
◎ CHARGER CONTROL IDENTIFICATION 2x16 character LCD + Output - Output Balancer port DC Input Temperature sensor port Buttons Temp port Balancing port + Output DC lnput - Output ◎ POWER SOURCE 1. Connect charger to 12V DC power supply 2. -
Page 7: Battery Connection
Setup screen is displayed after about 1 second ULTRA DC QUAD Graupner/SJ 1.00 Connect charge cable to 4mm output banana sockets on charger with attention to polarity, red +, black –. If battery is not connected to charger correctly, the error message is appeared - No battery : When a battery is not connected to the charger’s output... -
Page 8: Memory Setup
◎ MEMORY SETUP ULTRA DC QUAD has 4 channels, 10 memories per channel It is used to store specific battery, charge, discharge and safety parameters, as well as being used to initiate charging, discharging, cycling/store mode functions. ① Press ENTER BUTTON then the memory number blinks. Press INC/DEC buttons to select the memory number Pofile [01]... -
Page 9: Nicd, Nimh Batteries Charge/Discharge 9P
⑧ Press INC button to access to CYCLE mode and press INC/DEC button to charge/dis- charge sequence and repeating number and then press ENTER button to remove the curser blinking. LiPo CYCLE D->C1 D=3.0A D=1.0A ⑨ Press INC button to access STORE mode and press INC/DEC buttons to set charge/dis- charge and then press ENTER button to remove the curser blinking. -
Page 10: Nicd, Nimh Discharge 10P
④ Press ENTER button then the value of delta peak blinks, press DEC/INC buttons to set the desired value of delta peak. Nixx CHARGE C=3.0A d=25mV/c ⑤ Press and hold ENTER button to start charge battery. BATTERY CHECK PLEASE WAIT..- NiCd, NiMH discharge ①... -
Page 11: The Temperature Setup For Nicd, Nimh When Charge/Discharge
② Press INC button 3 times to access to CYCLE mode Nixx CYCLE C->D1 C=3.0A D=1.0A ③ Press ENTER button shortly then the cycle sequence blinks, press DEC/INC buttons to set the desired cycle sequence Nixx CYCLE C->D1 C=3.0A D=1.0A ※... -
Page 12: Lipo, Liion, Life Batteries Charge/Discharge 12P
◎ LiPo, LiIon, LiFe BATTERIES CHARGE/DISCHARGE - LiPo charge ( ex : LiPo 7.4V, 5000mAh ) ① Set the battery type, cell, capacity at MEMORY mode Profile [02] LiPo 5000 ② Press INC button to access to LiPo CHARGE mode LiPo CHARGE C=3.0A... -
Page 13: Lipo Discharge 13P
- LiPo discharge ( ex: LiPo 7.4V, 5000mAh ) ① Press INC button to access to DISCHARGE mode from LiPo CHARGE mode LiPo DISCHARGE D=1.0A 3.0V/C ② Press ENTER button shortly then the value of discharge current blinks, press DEC/ INC buttons to set the desired discharge current LiPo DISCHARGE... -
Page 14: Lipo Store 14P
④ Press ENTER button shortly then the value of charge current blinks, press DEC/INC buttons to set the desired value of charge current LiPo CYCLE C->D1 C=6.0A D=1.0A ⑤ Press ENTER button shortly then the value of discharge current blinks, press DEC/ INC buttons to set the desired value of discharge current LiPo CYCLE C->D1... -
Page 15: The Temperature Setup For Lipo When Charge/Discharge 15P
② Press ENTER button to start LiPo balancer BATTERY CHECK PLEASE WAIT..LiPo BALANCER ①3.83②3.78③0.00V - The temperature setup for LiPo when charge/discharge LiPo Temperature 40℃ The temperature setup method is the same with NiCd/NiMH temperature setup. CAUTION Lithium battery is very sensitive to temperature. Much careful to the sudden temperature change ◎... -
Page 16: Displays During Charge/Discharge
② Press ENTER button shortly then the value of discharge current blinks, press DEC/ INC buttons to set the desired discharge current DISCHARGE D=1.0A ③ Press and hold ENTER button to start to discharge battery BATTERY CHECK PLEASE WAIT..※ Pb battery don’t have cycle function. ◎... -
Page 17: Error Messages
◎ ERROR MESSAGES INPUT BATTERY When input voltage is below 11.0V or exceeds 15V. VOLTAGE ERROR BATTERY When a battery is not connected to the charger’s output OUTPUT BATTERY When a battery is connected to the output in reverse REVERSE POLARITY OUTPUT CIRCUIT... -
Page 18: New Battery Charge
◎ NEW BATTERY CHARGE When the new NiCd/ NiMH are charged at the first time, charge process might be termi- nated within minutes, it is not because charger or battery have a problem, but because battery is not stabilized yet. In this case, you need to charge battery after increasing the delta peak value or to charge battery after discharging and cooling down battery. -
Page 19: Environment Protection Notes
◎ SAFETY APPROVAL DECLARATION OF CONFORMITY We hereby declare that the flowing product Product: Graupner/SJ ULTRA DC QUAD Charger Confirms with the essential protective requirements as laid down in the directive for harmonizing the statutory directives of the member states concerning electro-magnetic...
