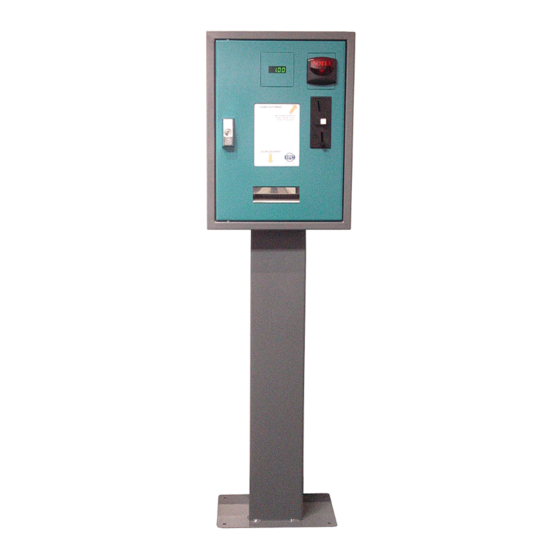

- Page 1 Card Master - CM500 Technical Manual | Card Master - CM500 © 2019 Inepro B.V. All rights reserved...
- Page 3 Card Master - CM500...
-
Page 5: Table Of Contents
Table of Contents Models Introduction Installation Initiation Coin Hoppers Maintenance Function Menu Function Overview Programming example Ticket Dispencers Optional General technical data Troubleshooting VMS-1 Overview Version 2.5.2 Inepro B.V. http://www.inepro.com... - Page 7 Always disconnect the power supply before removing the hoppers/dispensers! Read the manual before switching on this device. Before switching on this device, make sure that the power supply is 220V / 240VAC 50Hz. Your supplier does not take any responsibility if the safety norms are not followed.
-
Page 9: Models
Models Part... - Page 10 Models Models Tick the box of the correct machine. Card Master - CM500...
-
Page 11: Introduction
Introduction Part... - Page 12 Introduction Introduction This manual contains information about the installation, menu programming and maintenance of the different machines which are controlled by the Vend Master System (VMS) 1, as there are change machines, ticket and token dispensers. All these machines have one thing in common: after inserting a certain amount of coins it returns the amount and/or a product to the value corresponding to that of the amount of inserted coins.
-
Page 13: Installation
Installation Part... - Page 14 Installation Installation Installation We recommend you to take into account the following points to guarantee correct functioning of the machine: · Install the machine in a visible busy place; · Fix the machine to a solid and smooth wall, or use the optional installation column; ·...
-
Page 15: Initiation
Initiation Part... - Page 16 Initiation Initiation § Switch the machine off. § Fill the hopper(s) and/or the dispensers with coins and/or tickets. § Switch the machine on. § Test the change machine with various types of coins or banknotes. § Change the menu if wrong values are returned. In case you have a machine which returns 2 types of coins / products it is very important that each hopper /dispenser is filled with the correct coins / tickets.
-
Page 17: Coin Hoppers
Coin Hoppers Part... - Page 18 Coin Hoppers The coin hoppers The coin hopper(s) is/are the coin unit(s) of the machine; these have to be filled with coins to guarantee correct functioning of the machine. There are two copper plates, located in the lower part of the hopper, to show when it is empty.
-
Page 19: Maintenance
Maintenance Part... - Page 20 Maintenance Maintenance Preventive maintenance depends on the location of the machine and on how frequently it is used. § The coin hopper(s) do(es) not need any type of maintenance provided that no rubbish (paper etc.) is introduced at filling it/them. §...
-
Page 21: Function Menu
Function Menu Part... - Page 22 Function Menu The function-menu Functions of the VMS-1 control system According to the machine model, the “VMS-1” function-menu is accessible for the functions, which are valid for this model; depending on the function it is possible to modify or read programmes. The VMS-1 is programmed by means of three buttons, which are integrated in the main board.
- Page 23 Resetting the counters The revenue/coin counters (F 32 till ) can be reset. To reset the counters, push simultaneously the up and down button. Make sure you do this while the value of the chosen function is shown on the display.
-
Page 25: Function Overview
Function Overview VIII Part... - Page 26 Function Overview Functie Overzicht Functie F00, Verkoopprijs 1 Functie Functie F00, Verkoopprijs 1. Munt / productw aarde hopper 1. Waarde Omschrijving Basis waarde Aantal uitgave uit hopper/dispenser 1 bij munt 1. 0-255 Functie F01, Verkoopprijs 1b Verkoopprijs 1b. Munt / productw aarde hopper 1. Functie Waarde Omschrijving...
- Page 27 Automatische reset tijd van het betalingskrediet Functie F08, Functie F08, Autom atische reset tijd van het betalingskrediet . Functie Waarde Omschrijving Basis waarde Autom atische reset tijd van het betalingskrediet (in 0-255 m inuten). Relais K-4 tijd output Functie F09, Functie F09, Relais K-4 tijd output.
- Page 28 Function Overview Tekst op display tijdens uitgifte Functie F15, Functie F15, Tekst op display tijdens uitgifte. Functie Waarde Omschrijving Basis waarde De tekst die op het display w eergegeven w ord kan onafhankelijk en meertalig ingesteld w orden. De keuze van de instelling is als volgt: Bill, Empt, Stuc, Piec, Out, Open, <bepaald dealer>...
- Page 29 Muntwaarde hopper/dispenser 2 Functie F31, Functie F31, Muntw aarde hopper/dispenser 2. Functie Waarde Omschrijving Basis waarde 0-9999 Muntw aarde hopper/dispenser 2. Functie F32-F41, Inkomsten teller munt/biljet 1-10 Functie F32-F41, Inkom sten teller m unt/biljet 1-10. Functie Waarde Omschrijving Basis waarde 0-9999 Inkomsten teller munt/biljet.
- Page 30 Function Overview Timer input De timer input-aansluiting is bedoeld voor verkoopautomaten waar meerdere prijzen noodzakelijk zijn. Door het aansturen van een timer-input ontstaat er de verkoopprijs die in ingegeven staat. Bij geen aansturing wordt automatisch de prijs die ingegeven staat in berekend.
-
Page 31: Programming Example
Programming example Part... - Page 32 Programming example Programming Example Example 1 A dispenser with 6 coin types admittance (€ 0,05 to € 2.00), without coin return, with the possibility of an intermediate check-out to return the money when too few coins have been inserted. Function Value 200, the selling price for a ticket is €...
-
Page 33: Ticket Dispencers
Ticket Dispencers Part... - Page 34 Ticket Dispencers The ticket dispensers The ticket dispenser(s) is/are the ticket unit (s) of the machine, this/these unit (s) have to be filled with tickets to guarantee a correct functioning of the machine. Shuffle the ticket before introducing them into the dispenser to avoid their sticking to one another, and put the weight onto the ticket stack.
-
Page 35: Optional
Optional Part... - Page 36 Optional Optional A programming device, to simplify the operation of the function-menu. A reset and counting device, to read the counters only and to reset the daily counters. PC support software, on-line connection, to run various sales machines. Card Master - CM500...
-
Page 37: General Technical Data
General technical data Part... - Page 38 General technical data General technical data Power Pow er 230 VAC Usage About. 150 VA (depending on the input / output unit) Fuses 2 x 200mAT Housing Material Standard 2 mm. steel casing, including 15 mm. door frame Dim ensions H x W x D 600 x 450 (550) x 320 mm (depending on the configuration) Configuration Tw o-colour polish (RAL colours)
-
Page 39: Troubleshooting
Troubleshooting XIII Part... - Page 40 Troubleshooting Troubleshooting Message in the external display: Display Description 00,00 Amount to pay Hopper/dispenser is empty, fill hopper/dispenser w ith the Empty corresponding coins/products Error Wrong payment, control and reset the change system Busy / paying/returning Occupied As the programmed texts can be changed, the text in the display must not necessarily coincide with that described before (see function 15 to 18).
-
Page 41: Vms-1 Overview
VMS-1 Overview Part... - Page 42 VMS-1 Overview VMS-1 Overview 1. 230VAC connection 2. 200Ma-T fuse 3. Reset button 4. Serial input connection 5. Output hopper / dispenser 6. Hopper / dispenser button 7. Escrow connection 8. Input hopper / dispenser 9. Up button 10.Function jumper 11.Down button 12.Function button 13.Coin acceptor connection...
- Page 43 Manual R 2 - 35...
