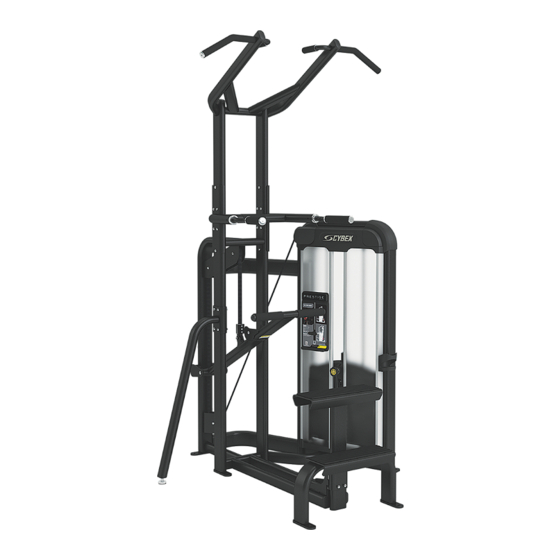

CYBEX Prestige 21230-999-4 AC Owner's Manual

Dip/chin assist
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Prestige
Owner's Manual
Part Number
21230-999-4 AC
®
Dip/Chin Assist

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prestige 21230-999-4 AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYBEX Prestige 21230-999-4 AC

Summary of Contents for CYBEX Prestige 21230-999-4 AC

  • Page 1 ® Prestige Dip/Chin Assist Owner's Manual Part Number 21230-999-4 AC...

  • Page 3: Table Of Contents

    Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

  • Page 4: Safety Guidelines And Practices

    • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.

  • Page 5: User Safety Precautions

    • DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts.

  • Page 6: Label Placement

    Label Placement The following diagram shows where each label is located. Page 6 of 26...
  • Page 7 Description DE000023-X DE000004-X 12230-352-X Page 7 of 26...

  • Page 8: Assembly

    Assembly Machine Specifications Total Weight and Size: 21230 Prestige Dip/Chin Assist Weight Machine Dimensions at Rest Machine Dimensions in Use 623 Lbs 62” L × 55” W × 98” H 62” L × 55” W × 98” H 283 Kg 157 cm L ×...

  • Page 9: Verify Parts List Below

    Do not install, use or store the unit in an area of high humidity, such as in the vicinity of a steam room, sauna, indoor pool or outdoors. Exposure to extensive water vapor, chlorine and/or bromine could adversely affect other parts of the unit.

  • Page 10: Tools Required

    • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
  • Page 11 Verify proper operation If machine CANNOT be moved without adding or removing weight stack Two people will be required for this procedure 1. Remove shipping cones using a 3/4” socket or wrench. Remove bolt from shipping cone with hammer. Recycle cone. Disconnect belt 1.
  • Page 12 5. Remove set screws securing belt to belt clamp using a 7/32" Allen wrench. Description Belt clamp Set screw Remove weight plates 1. Turn the increment weight adjusting knob to select 0 lbs (0 kg). 2. Remove top guide rod caps. Top guide rod cap contains a compression spring that will fly if grasp is not released slowly.
  • Page 13 2. With an assistant, carefully lift chin handle onto dip handle. Description Qty. Chin handle Dip handle Connection plate Screw .375-16 x .625 Screw .375-16 x .875 3. Align holes with connection plate. If holes do not line up then loosen Button Head Socket Cap Screws (BHSCS) securing dip handle to frame. 4.
  • Page 14 2. Push BHSCS (supplied in kit) through holes of support leg and frame. Description Qty. Support leg Frame Lower bracket Screw Locknut 3. Place lower bracket on BHSCS from step. 4. Place locknuts on BHSCS and securely tighten with a 9/16” wrench and 7/32” Allen wrench. Install weight plates 1.
  • Page 15 6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod cap down guide rod until cap is clear of guide rod plate and install. Repeat for opposite side. Description Top guide rod cap Guide rod Guide rod plate 7.
  • Page 16 5. Remove front sheet, do not peel decals off of weight plates. Description Weight stack selector pin Weight plate decals 6. Repeat above steps for other half of the weight plate decals. Belt routing 1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top weight. 2.
  • Page 17 5. Pull belt through clamp until input arm measures 31” from floor. Measure from floor to lower edge of caution decal (located on foot bar). Description Qty. Foot bar Caution decal 6. Pull belt tight and secure belt to clamp with the two set screws. 7.
  • Page 18 • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.

  • Page 19: Exercise

    Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions TIP: Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. CAUTION: Use only in manner depicted.

  • Page 20: Maintenance

    Cybex International, Inc. is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording. Cybex International, Inc. representatives are available to answer any questions that you may have. Warnings TIP: Read all warnings in this chapter.

  • Page 21: Weekly Procedures

    Then Dampen a soft white cloth with rubbing alcohol. More Difficult Stains Gently rub stained area. (Alternative Method) Dampen a clean soft cloth in water and rinse area. Apply a light coat of furniture wax for 30 seconds. Restoring Luster Lightly rub area using a clean white cloth.
  • Page 22 The following conditions may indicate a worn belt: Condition of Belt 3D View 3D or Side View Peeling of the belt’s skin. Wave in belt Replace belt if any section is over 1/32” (.03) narrower than the rest of belt Examine edge of belt (both sides).

  • Page 23: Yearly Procedures

    Inspection Action Inspect grips for looseness or wear. Replace all loose or worn grips immediately. Inspect all labeling for readability, including instructional placards, Replace all worn labeling immediately. warning and caution decals. Inspect all weight stacks for proper alignment and operation. Correct all improper alignment and operation issues immediately.

  • Page 24: Customer Service

    To speak with a customer service representative, call 800-351-3737 (for customers living within the USA) or 847-288-3700 (for customers outside the USA). The following information located on the serial number decal will assist our Cybex representatives in serving you. • Unit Serial Number, Product Name and Model Number •...

  • Page 25: Damaged Parts

    At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned.
  • Page 26 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
